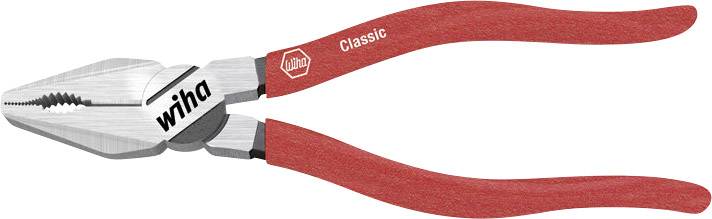

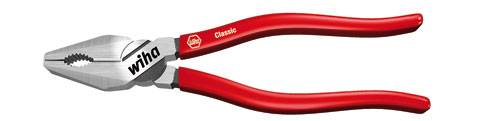

Wiha 10334 Workshop Comb pliers 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Comb pliers
- Manufacturer part #
10334
- Range of use
Workshop
- Length
160 mm
- Material
Tool steel
- Material properties
C70
quenched and tempered
tempered
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
3.1 mm
- Wire hardness (max.) hard wire
2 mm
- Wire hardness piano wire (max.)
1.6 mm
- Weight
160 g
- Standards
DIN ISO 5746
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 778952 Wiha 10334 Workshop Comb pliers 160 mm
Description
Standards: DIN ISO 5746. Head shape: Extra long cutting edge for flat and round cables. Design: OptiGrip - the newly designed gripping surface with 'triple-point support' ensures optimal hold of the workpiece while working. Cutting edges additionally induction hardened to approx. 64 HRC. The Wiha DynamicJoint® ensures optimal transmission of hand strength to the cutting edges. Material: High quality C 70 tool steel, tempered. Application: General purpose pliers for gripping and holding as well as cutting soft and hard wires and cables.
Features
- General purpose pliers for gripping and holding as well as cutting soft and hard wires and cables.
- Design: opti-grip the newly designed grip surface with "three-point support" ensures a perfect grip when working. Blades additionally induction-hardened to approx. 62 HRC. The Wiha DynamicJoint ensures optimal transmission of hand strength to the cutting edges. Tip style: Extra long cutting edges for flat and round cables.
- Standards: DIN ISO 5746. Material: High-quality tool steel, tempered.
Hints
This text is machine translated.
