Wiha 23-tlg. Workshop Torque screwdriver set DIN EN ISO 6789
EAN:
Part number:
Item no:
Highlights & Details
Torque screwdriver with key grip Set easyTorque Key Torx®, TorxPlus® 23-piece. Fixed preset torque limitation in the workbench stand (47198)
- Fixed preset torque limitation
- Hear and felt triggering signal protects against damage to material and rework
- Simplifies the work in narrow spaces with key grip and quick turning zone
- Perfect for applications in the cutting industry
- Clear storage in the workbench frame
- With 8 key handles and 14 interchangeable blades in the practical workbench stand
Technical specifications
- Product type
Torque screwdriver set
- Range of use
Workshop
- Tolerance ±
10 %
- Length
280 mm
- Width
110 mm
- Height
100 mm
- DIN standard
DIN EN ISO 6789
- Screwdriver features
pre-set
- EN standard
EN ISO 6789
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639721 Wiha 23-tlg. Workshop Torque screwdriver set DIN EN ISO 6789
Description
A controlled tightening of screws without material damage and reworking in hard-to-reach places? No problem with the easyTorque Key key handle set, which enables process-safe screwing. The workpiece stays undamaged thanks to an audible and tactile click signal when the set torque value is reached. The compact and handy key grips allow an optimum transmission of power even for screws that are difficult to access in confined spaces. Moreover, the key grips enable a quick twist thanks to the quick-turn zone and are compatible with the Wiha torque-reversing blades. With a insensitive mechanism to industrial lubricants, the EasyTorque key grips are reliable companion in the daily work. Manufactured in accordance with the EN ISO 6789 standard, the torque tools meet a trigger accuracy of +/- 10%. The key handles and removable blades are stored in a practical and sturdy metal workbench stand.
This text is machine translated.
This text is machine translated.

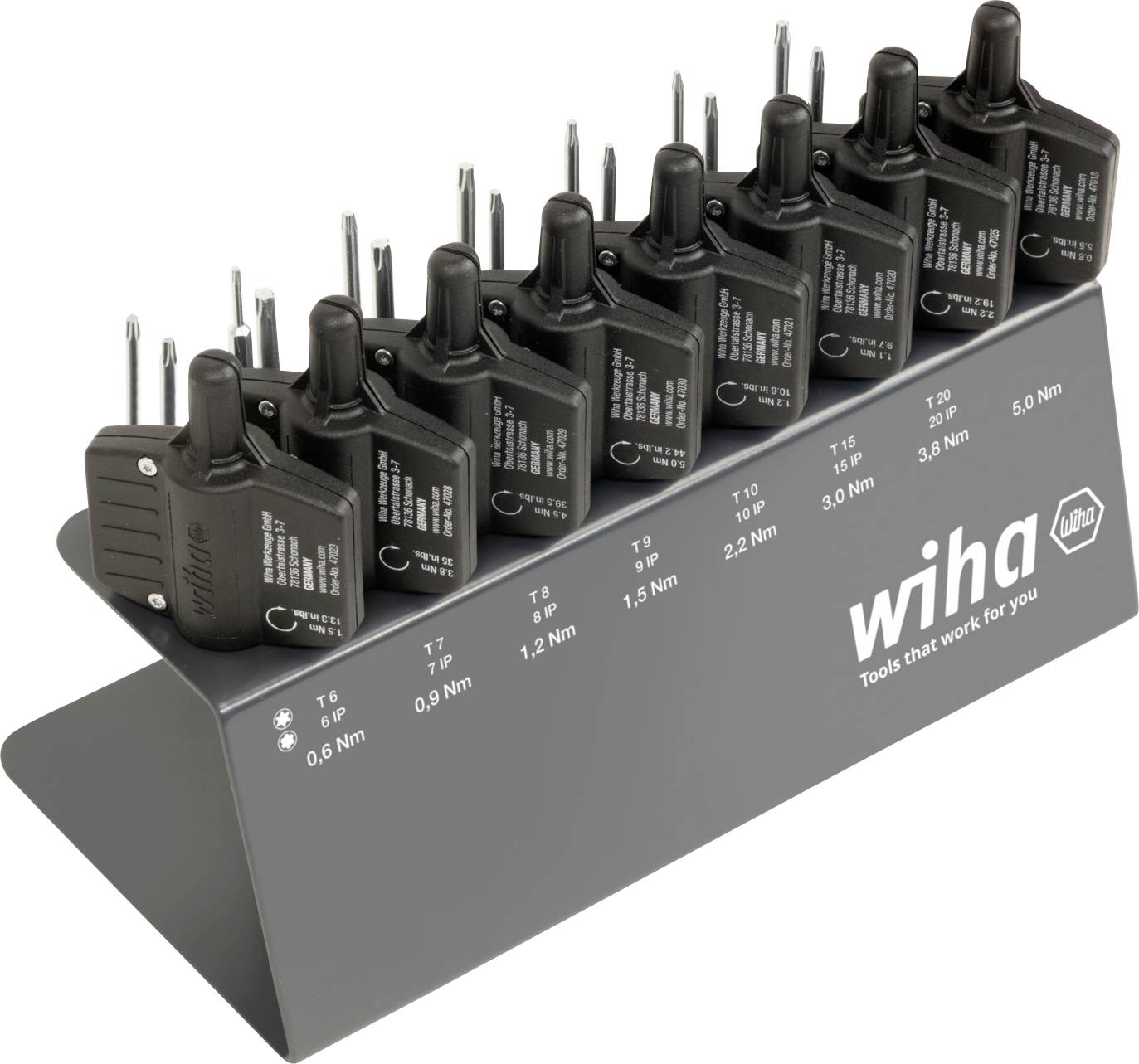

Scope of delivery
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 0.6 Nm (47018)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 0.9 Nm (47019)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 1.1 Nm (47020)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 1.5 Nm (47023)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 2.2 Nm (47025)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 3.0 Nm (47026)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 3.8 Nm (47028)
- 1x torque screwdriver with easy Torque Key lock and pre-set torque limitation 5.0 Nm (47030)
- 1x exchangeable blade TORX® for easyTorque Key T6 x 110 mm (46902)
- 1x Reversing blade TORX® for easy Torque Key T7 x 110 mm (46903)
- 1x changeover blade TORX® for easyTorque Key T8 x 110 mm (46904)
- 1x Reversing blade TORX® for easy Torque Key T9 x 110 mm (46905)
- 1x exchangeable TORX® blade for easyTorque Key T10 x 110 mm (46906)
- 1x changeover blade TORX® for easyTorque Key T15 x 110 mm (46907)
- 1x changeover blade TORX® for easyTorque Key T20 x 110 mm (46908)
- 1x changeover blade TORX PLUS® for easyTorque Key 6IP x 110 mm (46919)
- 1x changeover blade TORX PLUS® for easyTorque Key 7IP x 110 mm (46920)
- 1x changeover blade TORX PLUS® for easyTorque Key 8IP x 110 mm (46922)
- 1x changeover blade TORX PLUS® for easyTorque Key 9IP x 110 mm (46923)
- 1x changeover blade TORX PLUS® for easyTorque Key 10IP x 110 mm (46924)
- 1x changeover blade TORX PLUS® for easyTorque Key 15IP x 110 mm (46925)
- 1x changeover blade TORX PLUS® for easyTorque Key 20IP x 110 mm (46926)
- 1x workbench stand
