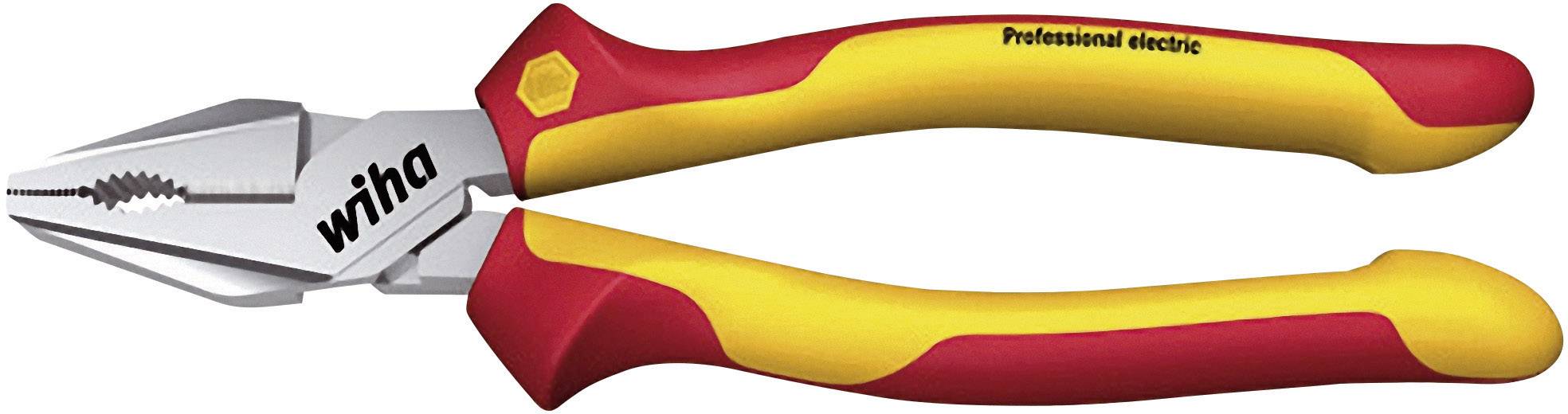

Wiha 26717 VDE Kraft comb pliers 225 mm
EAN:
Part number:
Item no:
Highlights & Details
Force combination pliers Professional electric
Technical specifications
- Product type
Kraft comb pliers
- Manufacturer part #
26717
- Range of use
VDE
- Length
225 mm
- Material
Tool steel
- Material properties
C70
quenched and tempered
tempered
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
4.4 mm
- Wire hardness (max.) hard wire
3 mm
- Wire hardness piano wire (max.)
2.5 mm
- Weight
390 g
- EN standard
EN 60900
- Standards
DIN ISO 5746, EC 60900:2004
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 294658 Wiha 26717 VDE Kraft comb pliers 225 mm
Description
Unit-tested protective insulation 1,000 V AC, VDE and GS approved.
Features
- Standards: DIN ISO 5746. Manufactured in accordance with IEC 60900:2004
- Head shape: Extra long blades for flat and round cables
- Design: opti-grip the newly designed grip surface with "three-point support" ensures a perfect grip when working. Particularly powerful leverage means 40% less manual force is required for cutting compared to standard combination pliers. Cutting edges induction-hardened to approx. 64 HRC and therefore also suitable for cutting piano wire. The Wiha DynamicJoint ensures optimal transmission of hand strength to the cutting edges
- Material: High-quality tool steel, tempered
- Application: Optimized leverage universal pliers for gripping and holding as well as cutting soft to extremely hard wires and cables. For work within the range of live parts to 1.000 V AC.
Hints
This text is machine translated.
