Buy Wiha 26808 26808 ESD Side cutter non-flush type 115 mm

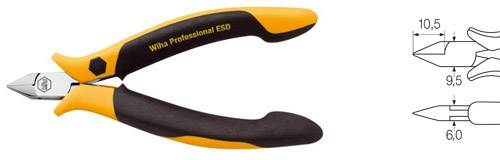

Yellow and black side-cutting pliers with 'Wiha Professional ESD' inscription, alongside a technical drawing with dimensions: 10.5 cm in length.

Dispatches on Tue, 6 Oct

94 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 34.45 / piece)

€ 34.45

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Length in inches: 4 1/2"

Product type: Side cutter

Manufacturer part #: 26808

Range of use: ESD

Length: 115 mm

Material: Carbon steel

Material properties: C60
tempered

Edge hardness: 64 HRC

Wire hardness (max.) soft wire: 1 mm

Wire hardness (max.) medium wire: 0.6 mm

Wire hardness (max.) hard wire: 0.6 mm

DIN standard: DIN ISO 9654

Weight: 60 g

Features: non-flush type

Type: Professional ESD

Standards: DIN ISO 9654

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 804309 Wiha 26808 26808 ESD Side cutter non-flush type 115 mm

Description

For cutting different hard wires even at places difficult to access. Execution: blade with facet, individually checked, also suitable for thin, hard wire. maximum service life of the cutting through additional inductive-hardening to approx. 64 HRC. With opening spring. Surface resistance 10^6 - 10^9 ohm. Narrow, pointed head Standards: DIN ISO 9654, IEC 61340-5-1. Material: High-alloy C60 carbon steel.
