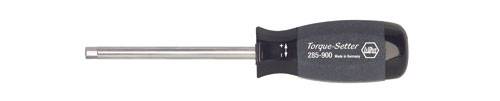

Wiha 26864 Workshop Adjustment tools
EAN:
Part number:
Item no:
Technical specifications
- Dimensions (handle) 146 mm
- Product type
Adjustment tools
- Range of use
Workshop
- Length
28 mm
- Material
Chrome moly vanadium steel
- Material properties
tempered
matt chrome plating
- Width
28 mm
- Height
155 mm
- Weight
57 g
- EN standard
EN ISO 6789
- Standards
EN ISO 6789
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 778481 Wiha 26864 Workshop Adjustment tools
Description
Setting tool for variable torque screwdrivers. Included in every torque screwdriver delivery. Blade: Octagonal blade, through hardened, zinc-plated. Supplement: Included in every torque screwdriver delivery.
Features
- Driving side: DIN 3126, ISO 1173, Form D 6.3 For controlled screwing when working on conducting parts up to 1000 V/AC. 000 V AC For controlled screwing at a predefined torque., in combination with a Wiha torque grip. For controlled screwing at a predefined torque. Universal assortment for screw joints of all kinds in trade and industry. ClicFix bit holder made of metal locks
- Bit insert: Insulated all slim bits reliably. Only for 6 mm slimBits. Directly on the bit die-cast protective insulation, which is fully integrated into the bit on front. Unit-tested protective insulation 1. Protective insulation 000 V AC, VDE and GS-tested
- Extra: 100% security by screwing with torque as specified by the manufacturer typgeprufter switching devices according to EN60439-1. Easy access to deep-lying screw clamps Well arranged in high quality and durable slot. Supplied in a practical plastic box. Supplied in a sturdy metal box, incl. factory testing protocol. Supplied in sturdy plastic box. Incl. factory test report.
- Accuracy: ±6%, traceable to national normal (different tolerances see table). Accuracy: ±6%, traceable to national normal.
- Handle: Bit holder with SoftFinish ® electric multi-component grip. Torque can be set continuously with adjustment tool torque-setter (included in the delivery). Optimum handle size for torque range Compatible with all blades of the series 2859. Model 1.0-5.0Nm. Torque can be set continuously with adjustment tool torque-setter (included in the delivery). Ergonomic multi-component grip, extremely handy through light and compact design. Click signal given upon reaching the set torque value. VDE torque grip 1.0 - 5.0 Nm, fully adjustable.
- Sleeve: made from stainless steel, black plastic sheath. Round blade: High quality chrome-vanadium molybdenum steel, hardened throughout, matt chrome-plated Octagonal profile, through-hardened, galvanised. Observed standards: EN ISO 6789, BS EN 26789, ASME B107 14 M. Bits: High quality chrome-vanadium steel, pierced hardened, bronzed.
- Additional: included in the scope of delivery of the torque screwdriver.
Scope of delivery
- Adjustment tool for torque screwdriver with longitudinal handle 90 mm (26864)
Hints
This text is machine translated.
