Technical specifications

Dimensions (handle) 146 mm

Product type: Adjustment tools

Range of use: Workshop

Length: 28 mm

Material: Chrome moly vanadium steel

Material properties: tempered
zinc plated

Width: 28 mm

Height: 155 mm

Weight: 106 g

EN standard: EN ISO 6789

Standards: EN ISO 6789

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 778483 Wiha 28691 Workshop Adjustment tools

Description

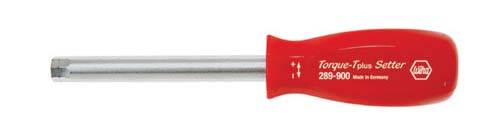

Setting tool for variable T-handle torque tools. Included in every T-handle torque tool delivery. Blade: Octagonal profile with drilled tip, through hardened, zinc-plated. Handle: Made of impact resistant cellulose acetate.

Features

Driving side: DIN 3126, ISO 1173, Form D 6.3 For controlled screwing at a predefined torque. Universal assortment for screw joints of all kinds in trade and industry. For controlled screwing at a predefined torque. For controlled screwing at a predefined torque. For controlled screwing at a predefined torque., in combination with a Wiha torque grip.
Extra: supplied in strong metal box, incl. factory testing protocol. Supplied in a practical plastic box, incl. factory testing protocol. Accuracy: ±6%, traceable to national normal.
Handle: Made of tough cellulose acetate. Click signal given upon reaching the set torque value. Compatible with all blades of the series 2899. Model 5-14 Nm. Numerical torque value display in window scale. Torque can be set continuously with adjustment tool torque-setter (included in the delivery). Comfortable Cross-handle with soft zones for optimum transmission of torque.
Sleeve: Bit-Schnellwechselhalter for Wiha cross-grip torque tools. Enables a particularly fast bit change. Round blade: High quality chrome-vanadium molybdenum steel, hardened throughout, matt chrome-plated Octagonal profile with hole in the blade tip, through-hardened, galvanised.
Head: nickel-plated, spring-loaded ball. Observed standards: EN ISO 6789, BS EN 26789, ASME B107 14 M. Bits: High quality chrome-vanadium steel, pierced hardened, bronzed.

Scope of delivery

Adjusting tool for torque screwdriver with cross-grip 90 mm (28691)

Hints

This text is machine translated.

Description

Features

Driving side: DIN 3126, ISO 1173, Form D 6.3 For controlled screwing at a predefined torque. Universal assortment for screw joints of all kinds in trade and industry. For controlled screwing at a predefined torque. For controlled screwing at a predefined torque. For controlled screwing at a predefined torque., in combination with a Wiha torque grip.
Extra: supplied in strong metal box, incl. factory testing protocol. Supplied in a practical plastic box, incl. factory testing protocol. Accuracy: ±6%, traceable to national normal.
Handle: Made of tough cellulose acetate. Click signal given upon reaching the set torque value. Compatible with all blades of the series 2899. Model 5-14 Nm. Numerical torque value display in window scale. Torque can be set continuously with adjustment tool torque-setter (included in the delivery). Comfortable Cross-handle with soft zones for optimum transmission of torque.
Sleeve: Bit-Schnellwechselhalter for Wiha cross-grip torque tools. Enables a particularly fast bit change. Round blade: High quality chrome-vanadium molybdenum steel, hardened throughout, matt chrome-plated Octagonal profile with hole in the blade tip, through-hardened, galvanised.
Head: nickel-plated, spring-loaded ball. Observed standards: EN ISO 6789, BS EN 26789, ASME B107 14 M. Bits: High quality chrome-vanadium steel, pierced hardened, bronzed.
