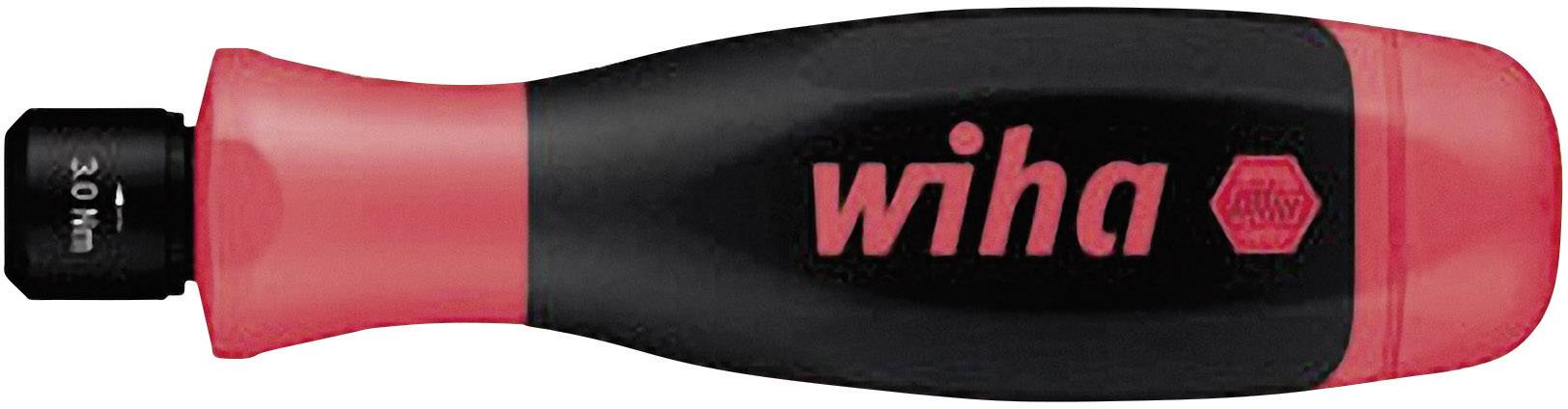

Wiha 292 3,8Nm Workshop Torque screwdriver 3.8 - 3.8 Nm
EAN:
Part number:
Item no:
Highlights & Details
Wiha Easy Torque Torque Screwdriver
- According to the standard EN ISO 6789
Technical specifications
- Dimensions (handle) 34 x 130 mm
- Product type
Torque screwdriver
- Blade diameter
34 mm
- Range of use
Workshop
- Drive
4 mm
- Torque (min.)
3.8 Nm
- Torque (max.)
3.8 Nm
- Tolerance ±
10 %
- Nm graduation
3.8 Nm
- Length
35 mm
- Handle Ø
34 mm
- Handle length
130 mm
- Width
35 mm
- Height
135 mm
- Weight
105 g
- Screwdriver features
Multi-purpose tool grip
pre-set
- Max. torque
3.8 Nm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 283603 Wiha 292 3,8Nm Workshop Torque screwdriver 3.8 - 3.8 Nm
Description
Handle: Multi-component handle optimally designed for the hand enables optimal power transmission. Audible and perceptible click when the pre-set torque has been attained. Rapid identification with imprint on handle end. Unlimited loosening torque. Mechanism insensitive to industrial lubricants.
Accuracy: ±10%
Application: For applications where recommended torque settings are important. Use in combination with a Wiha torque interchangeable blade.
Accuracy: ±10%
Application: For applications where recommended torque settings are important. Use in combination with a Wiha torque interchangeable blade.
Features
- Handle: hand-shaped multi-component grip for optimum power transfer. Click signal given upon reaching the set torque value. Fast identification by imprint at the end of the handle. Unlimited opening torque. Robust mechanics compared to industrial lubricants.
- Accuracy: ± 10%
- Application: For controlled screwing at a predefined torque., in combination with a WIHA torque 4-mm changing blade.
Scope of delivery
- Torque screwdriver easyTorque fixed preset torque limiter 3.8 Nm (36238)
Hints
This text is machine translated.
