Wiha 36851 ESD Torque screwdriver 0.04 - 0.46 Nm DIN EN 61340-5-1, DIN EN ISO 6789, DIN EN 26789
EAN:
Part number:
Item no:
Highlights & Details

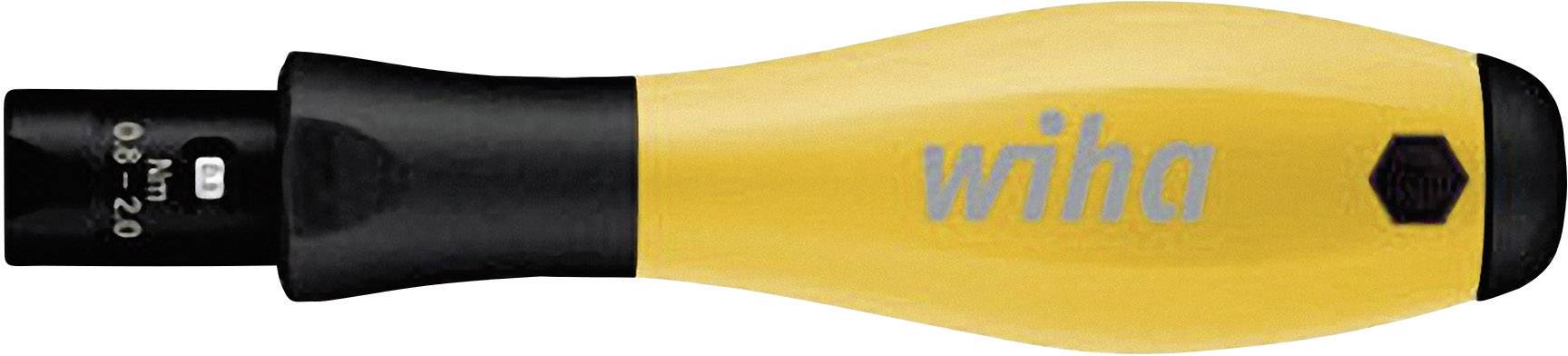

TorqueVario-S ESD torque screwdriver
- Variable adjustable torque limitation
Technical specifications
- Dimensions (handle) 23 x 127 mm
- Product type
Torque screwdriver
- Range of use
ESD
- Drive
4 mm
- Torque (min.)
0.04 Nm
- Torque (max.)
0.46 Nm
- Tolerance ±
10 %
- Length
35 mm
- Handle Ø
23 mm
- Handle length
127 mm
- Width
35 mm
- Height
195 mm
- Weight
138 g
- DIN standard
DIN EN 61340-5-1
DIN EN ISO 6789
DIN EN 26789
- Screwdriver features
Multi-purpose tool grip
adjustable
- EN standard
EN 61340-5-1
EN ISO 6789
EN 26789
ASME B107.14M
- Max. torque
0.04-0.46 Nm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 283591 Wiha 36851 ESD Torque screwdriver 0.04 - 0.46 Nm DIN EN 61340-5-1, DIN EN ISO 6789, DIN EN 26789
Description
Torque value can be set via window scale Automatically triggering.
Features
- Torque can be set continuously with adjustment tool torque-setter (included in the delivery). Ergonomic multi-component grip, from anti-static plastic. Optimum handle size for torque range Click signal given upon reaching the set torque value. Surface resistance 10^6 - 10^9 ohm
- Standards: IEC 61340-5-1. EN ISO 6789, BS EN 26789, ASME B107.14M
- Application: For controlled screwing at electrostatically sensitive components at a predefined torque., in combination with a WIHA torque 4 mm ESD spare blades
- Extra: supplied in a practical plastic box, incl. factory testing protocol.
Scope of delivery
- Practical plastic box
- Factory test report.
Hints
