Wiha 45221 Rotating EMF tester CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included

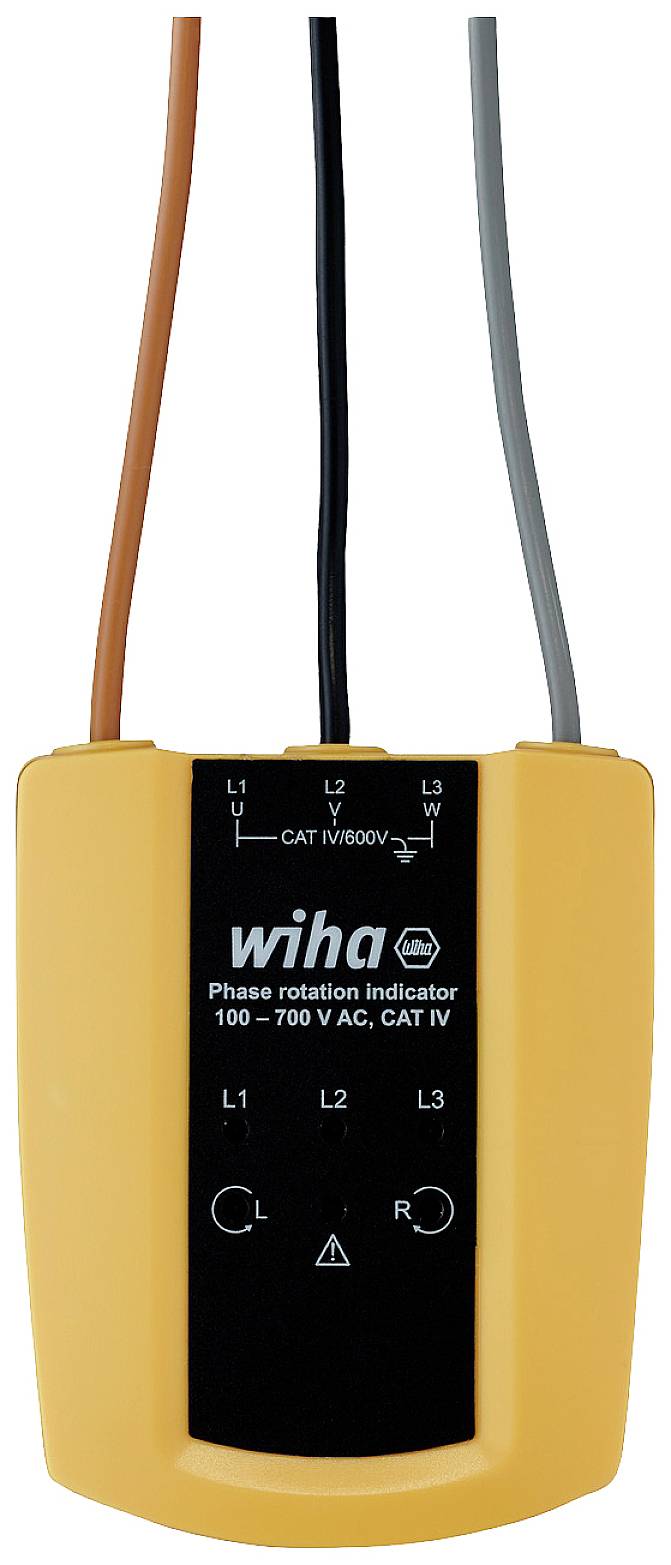

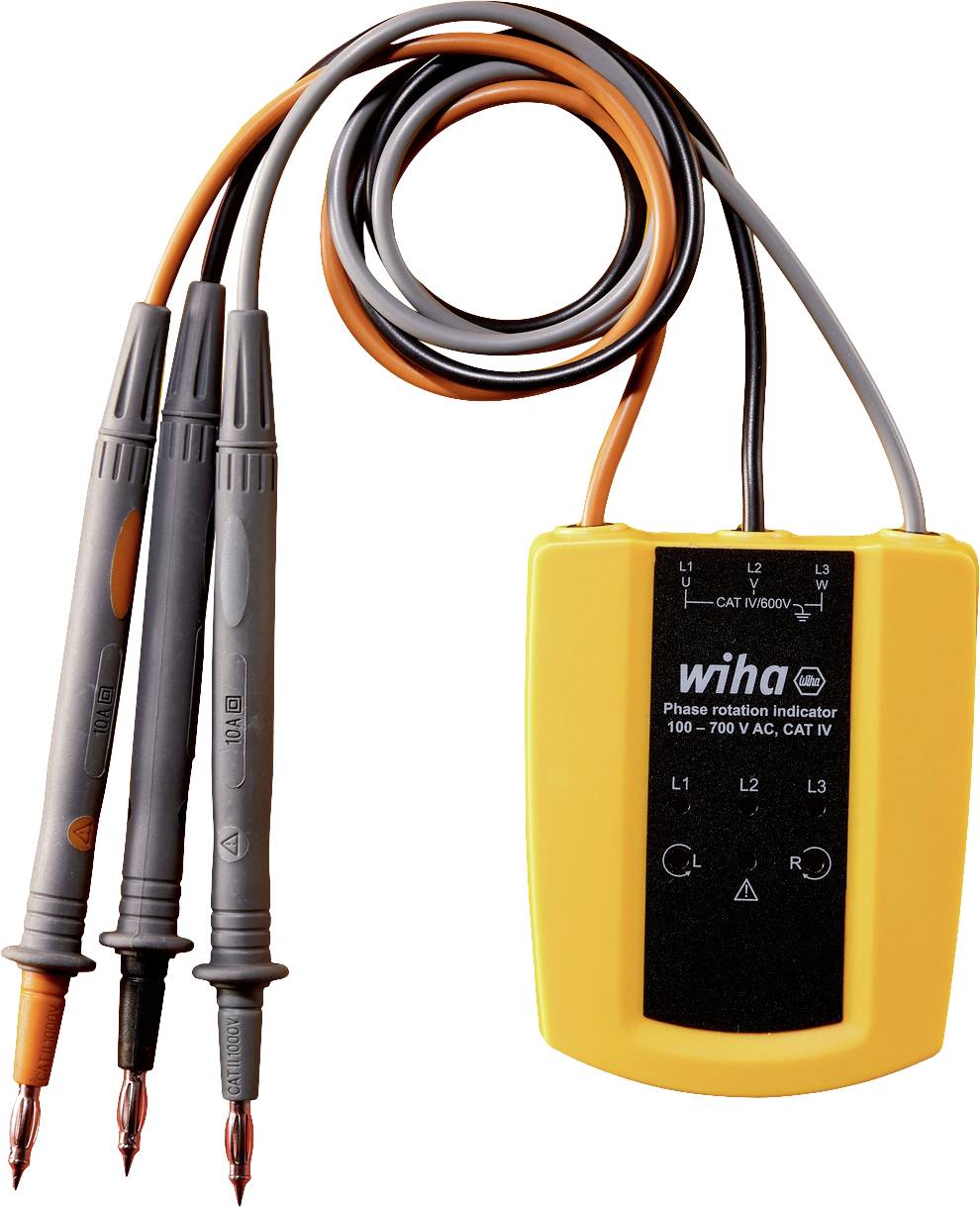

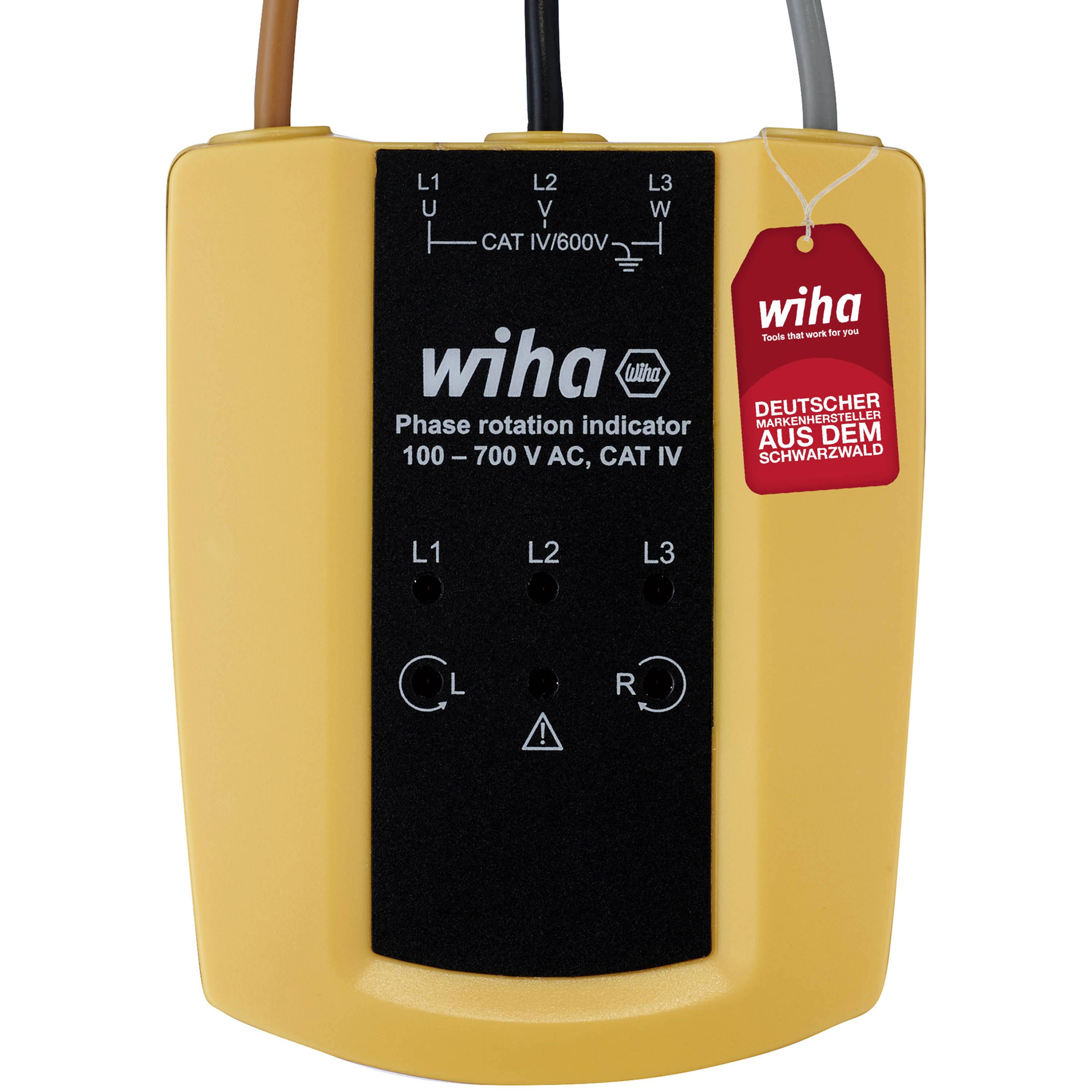

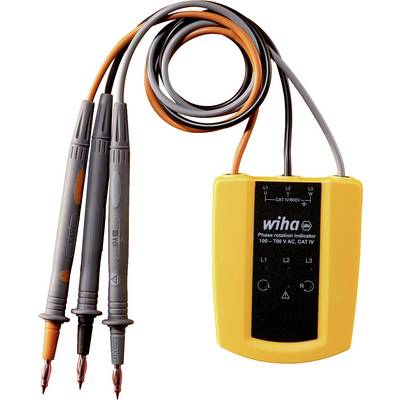

Wiha phase rotation indicator 100 - 700 V AC, cat IV (45221)
Highlights & Details

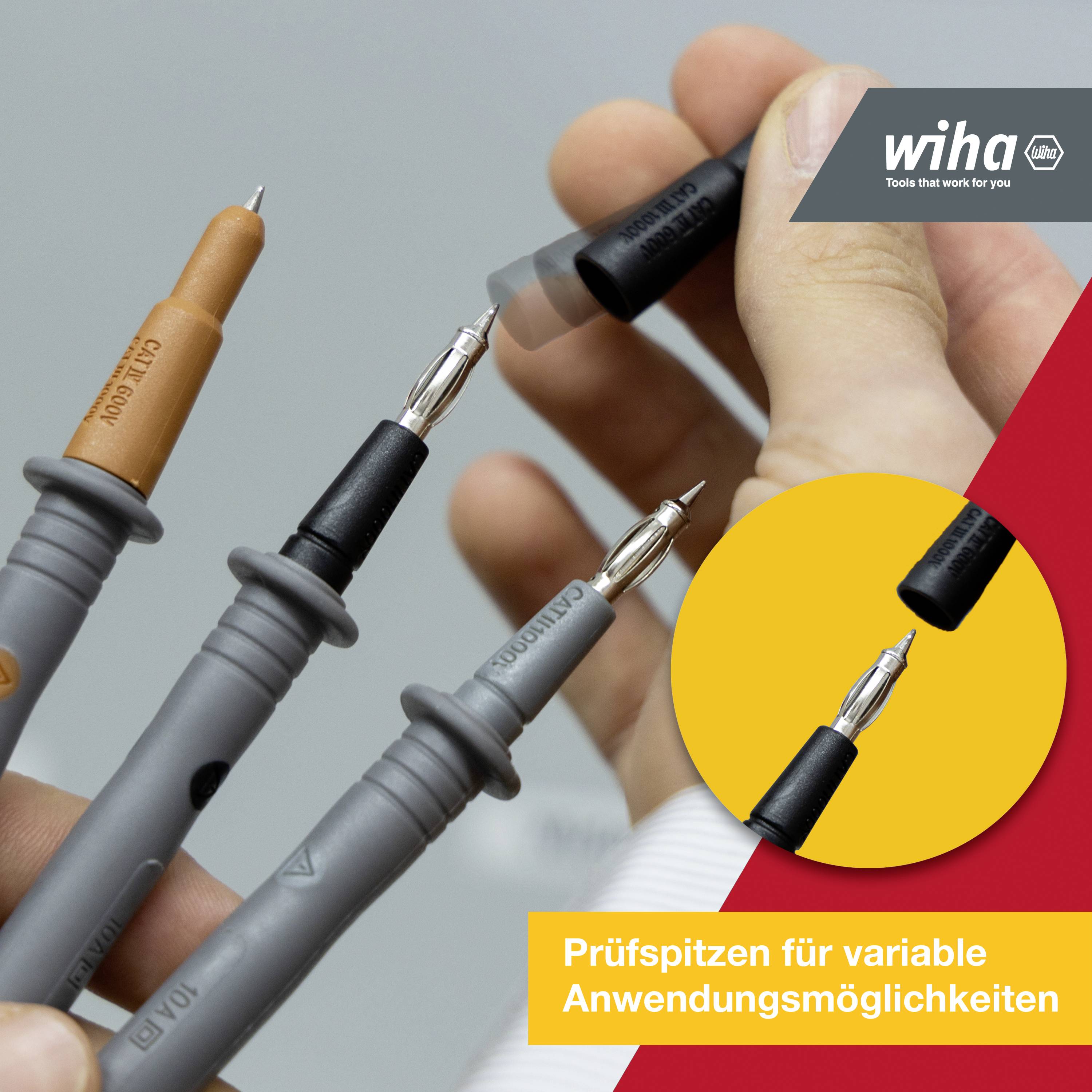

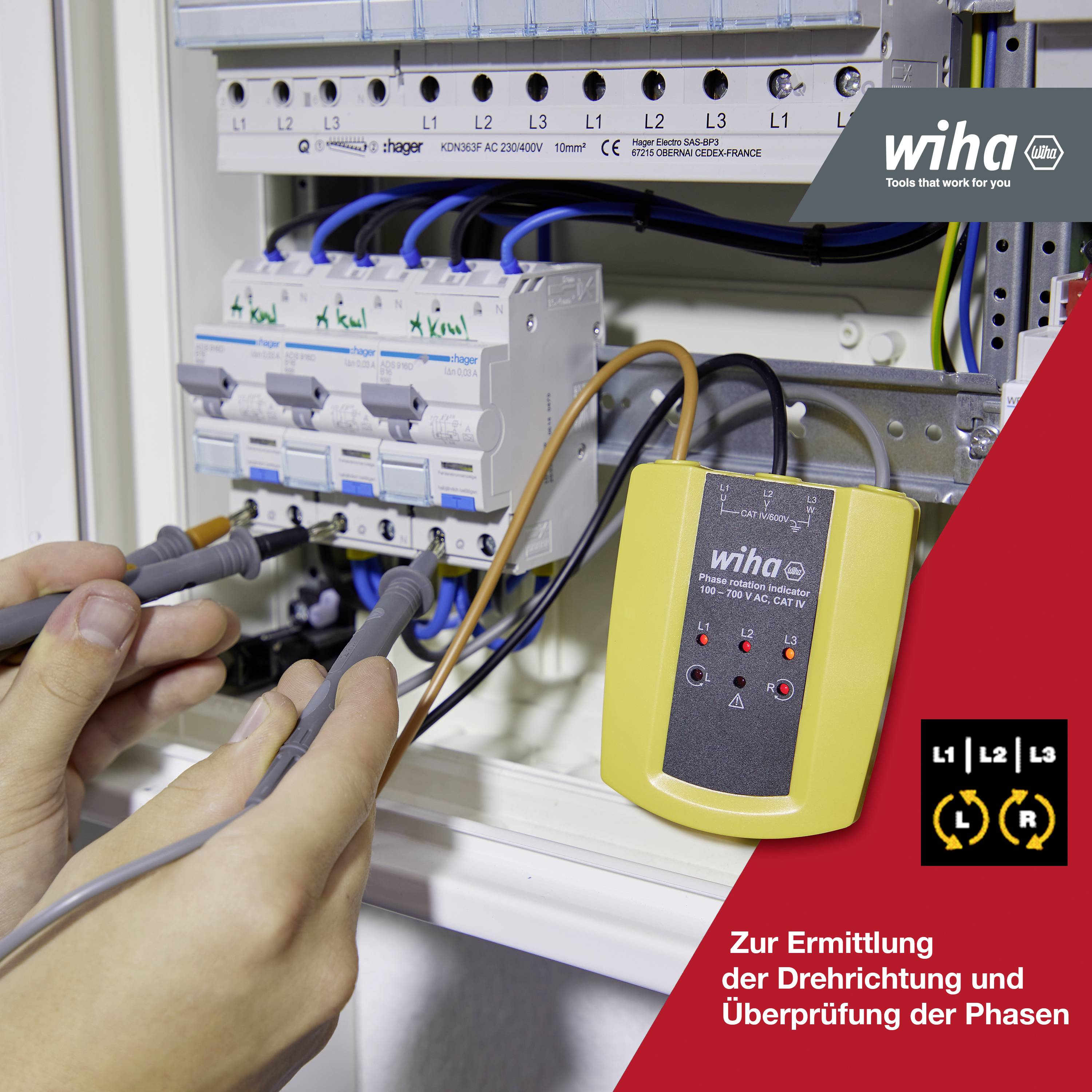

- LED display for easy-to-read measurement resultsSimple determination of the rotating field and phase display in only one toolTest probes for variable applicationsFor determining the direction of rotation and checking the phases
Technical specifications
- Product type
Rotating EMF tester
- V AC reading range
100 up to 700 V
- Reading category
CAT III 1000 V
CAT IV 600 V
IP40
Manufacturer's standards (no certificate)

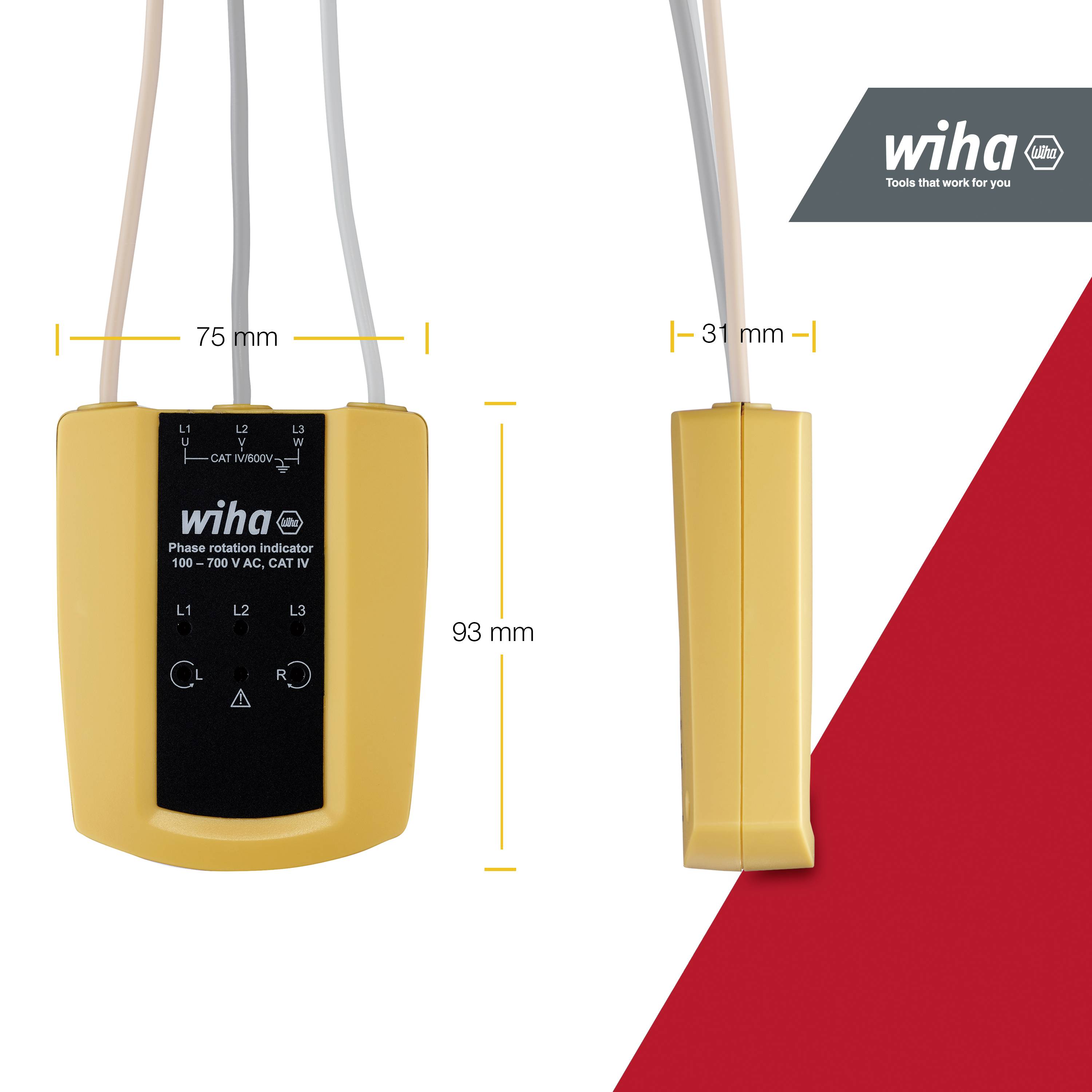

- Dim
(L x W x H) 93 x 31 x 75 mm
- Weight
217 g
- V AC reading range (max.)
700 V
- V AC reading range (min.)
100 V
- Width
31 mm
- Height
75 mm
- Length
93 mm
- Type
45221
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2586306 Wiha 45221 Rotating EMF tester CAT III 1000 V, CAT IV 600 V
Description

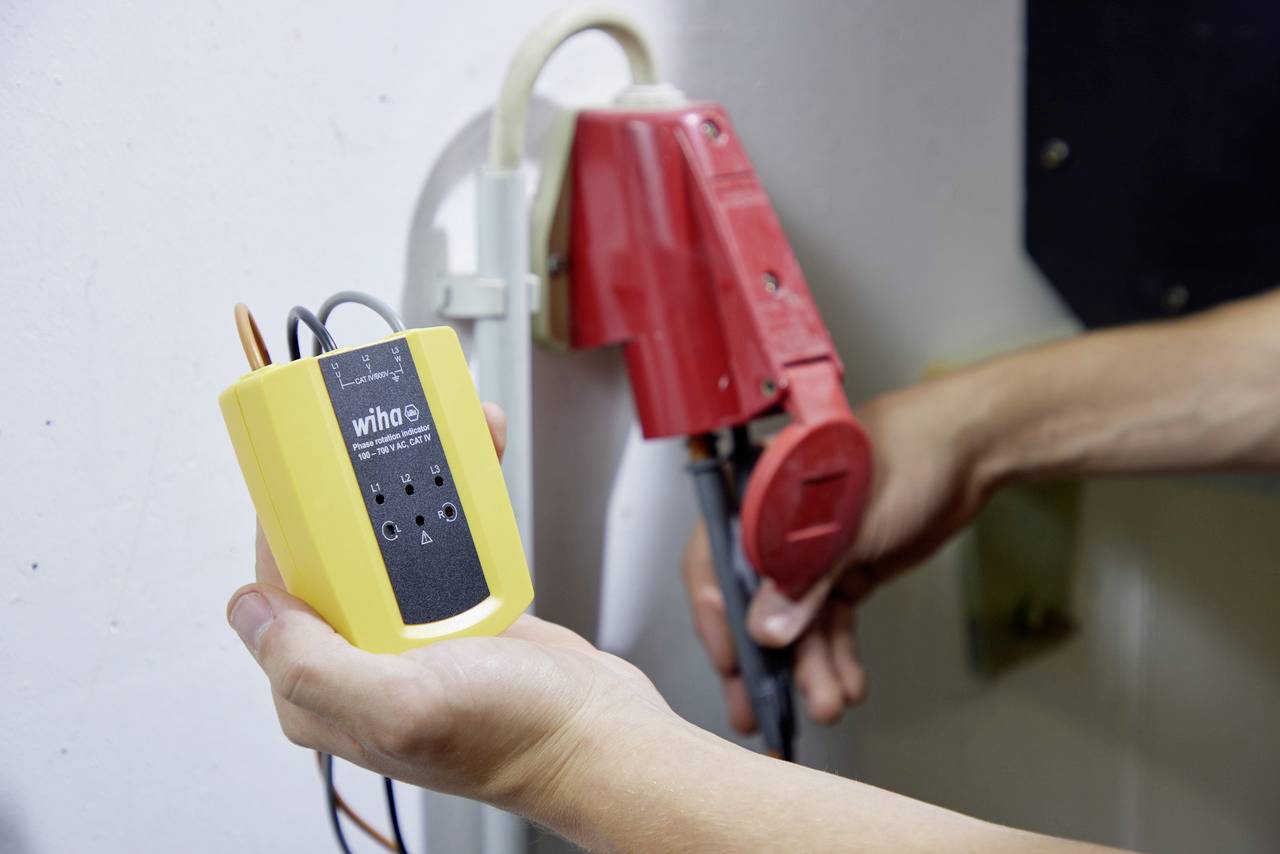

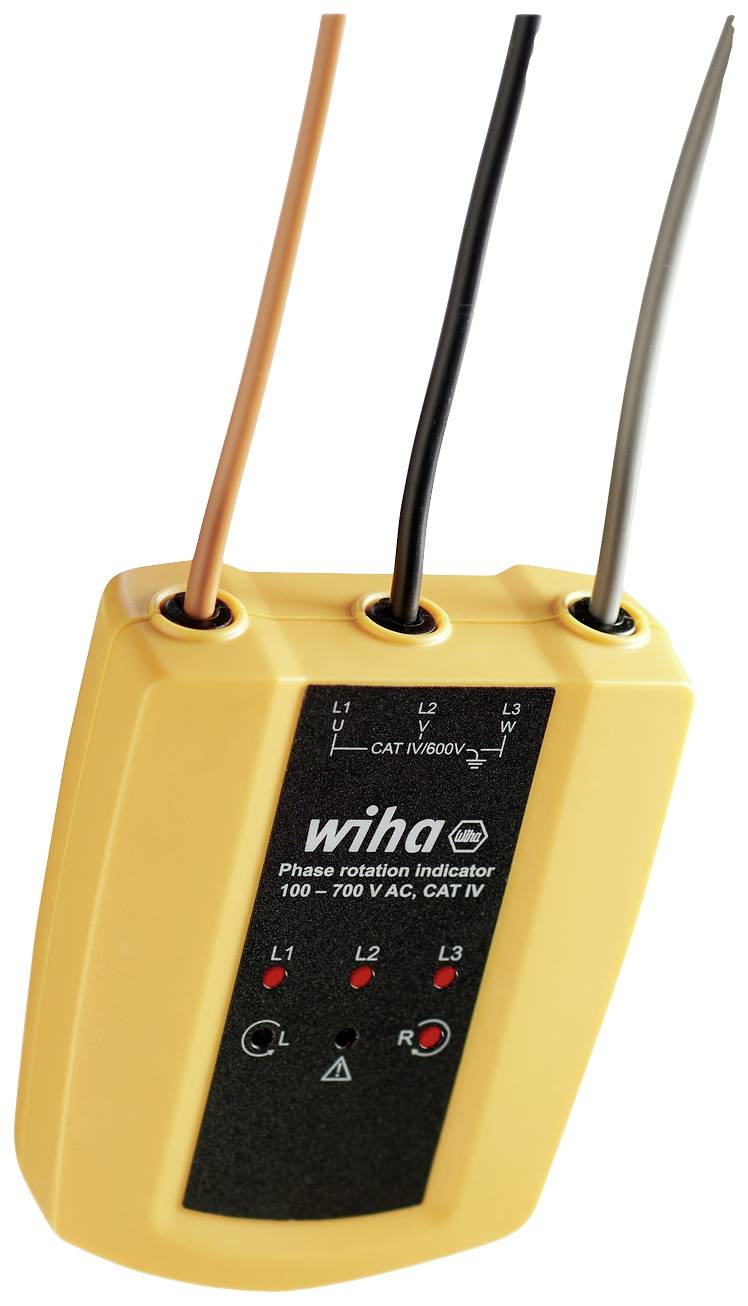

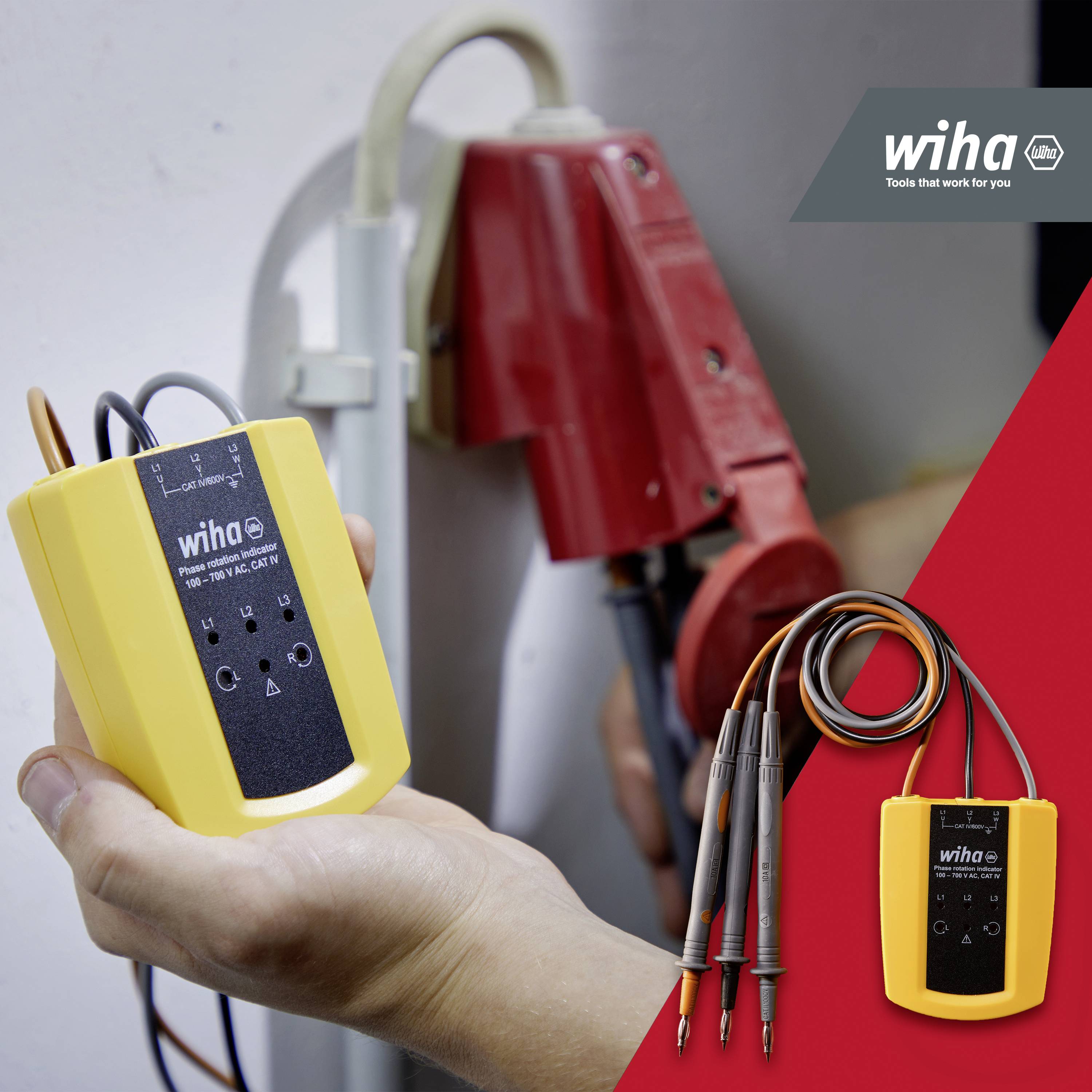

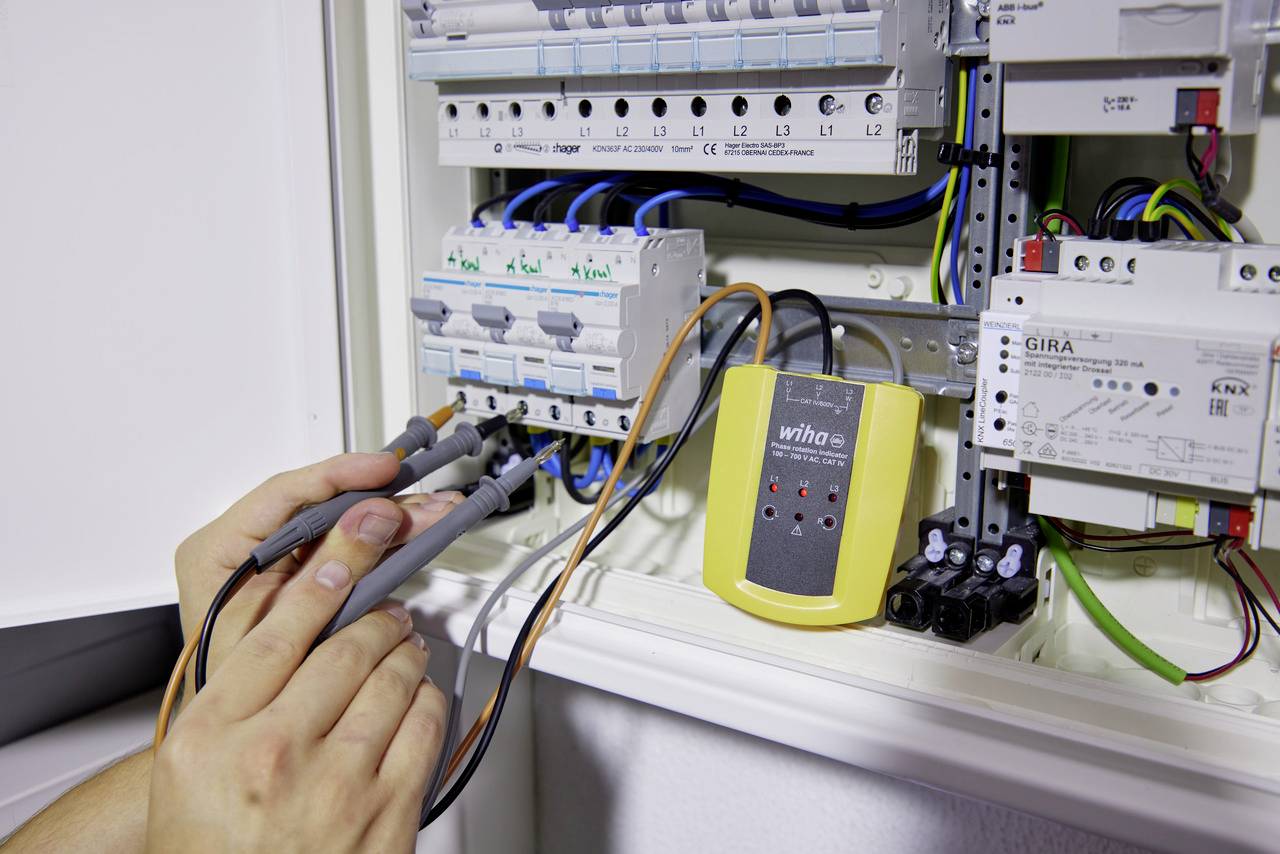

No problem with the Wiha direction of rotation indicator with integrated phase display. Both the direction of rotation and the live phases are reliably indicated with the help of an LED display. An alligator clip included in the delivery enables a simple connection e.g. with a motor terminal board. In combination with the supplied test probes, the direction indicator from Wiha offers great flexibility when testing. The rotating field direction indicator works with the mains voltage itself, so that no batteries are necessary. According to the measurement category cat III up to 1,000 V and cat IV up to 600 V, the direction of rotation indicator offers maximum safety for working directly at the source of low-voltage installations. IEC/EN 61010-1; IEC/EN 61577-7; IEC/EN 611010-031.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Wiha phase rotation indicator
