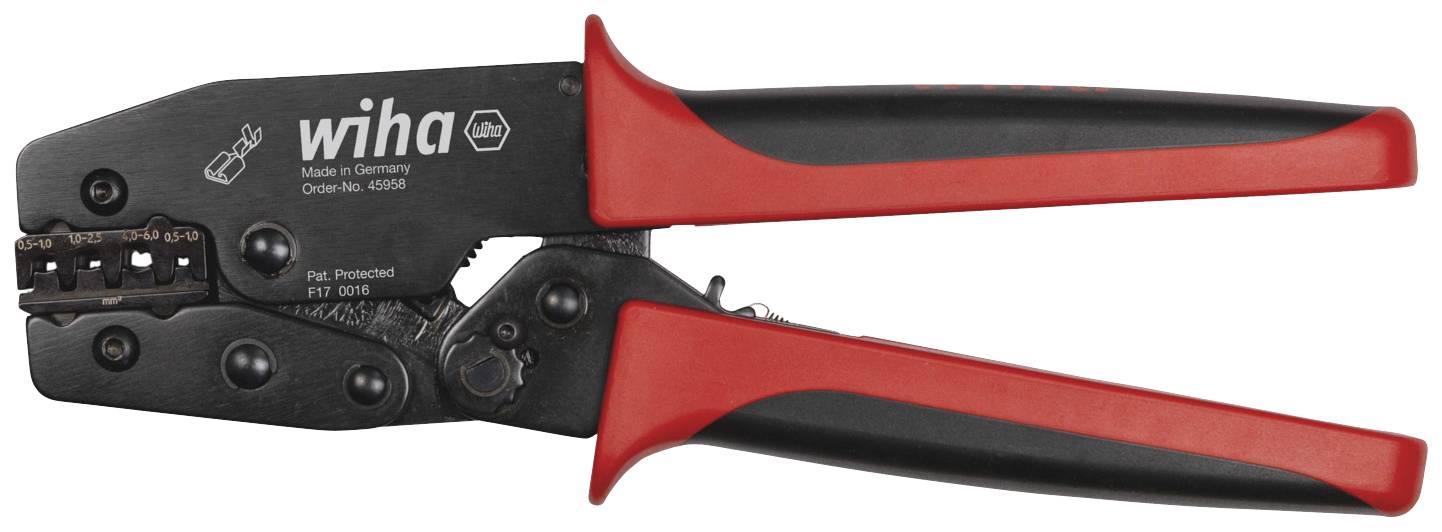

Wiha 45958 Crimper Non-insulated blade terminals, Non-insulated blade terminal receptacles 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Technical specifications
- Crimp to DIN 46247 for DIN plug widths F2.8, F4.8, F6.3, F9.5 as well as other different electronics contacts
- Product type
Crimper
- Manufacturer part #
45958
- Range of uses
Non-insulated blade terminals
Non-insulated blade terminal receptacles
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
10 up to 24 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
24 awg
- Crimp area AWG (max.)
10 awg
- Length
220 mm
- Weight
525 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3046024 Wiha 45958 Crimper Non-insulated blade terminals, Non-insulated blade terminal receptacles 0.5 up to 6 mm²
Description
With the classic use of crimp pliers, there is the risk of the flat plug being bent or wrongly crimped in the pliers. The crimp pliers with B/F crimp inserts from Wiha prevent unnecessary cable and connector waste. It presents itself with a crimping area of 0.5 to 6.0 mm² and thus covers a large part of the applications. High-quality crimping results thanks to automatically adjusted pressure and the option of manually canceling the crimping by an emergency release function.
