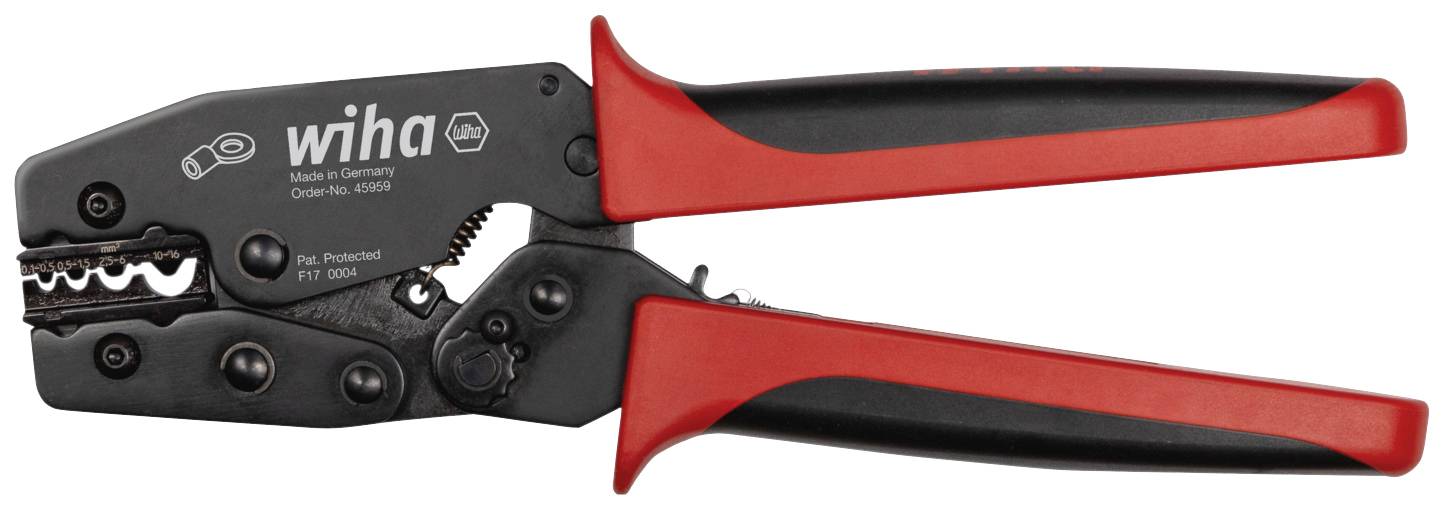

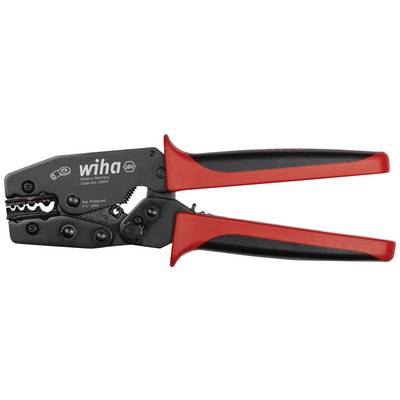

Wiha 45959 Crimper Non-insulated cable lugs 0.1 up to 16 mm²
EAN:
Part number:
Item no:
Technical specifications
- Crimp according to DIN 46234, DIN 46230, DIN 46341
- Product type
Crimper
- Manufacturer part #
45959
- Range of uses
Non-insulated cable lugs
- Crimp area
0.1 up to 16 mm²
- Crimp area AWG
6 up to 26 awg
- Crimp area (min.)
0.1 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
6 awg
- Length
220 mm
- Weight
525 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3046025 Wiha 45959 Crimper Non-insulated cable lugs 0.1 up to 16 mm²
Description
With the conventional use of crimping pliers, there is the risk that the cable lugs are bent or are crimped correctly. The crimp pliers with Wiha crimping tool (U crimp) prevent unnecessary cable and connector waste. It presents itself with a crimping area of 0.1 to 16.0 mm² and thus covers a large part of the applications. High-quality crimping results thanks to automatically adjusted pressure and the option of manually canceling the crimping by an emergency release function.
This text is machine translated.
This text is machine translated.
