Wiha MFT one (Art. Nr. 47216) Electrical tester set
EAN:
Part number:
Item no:
Highlights & Details

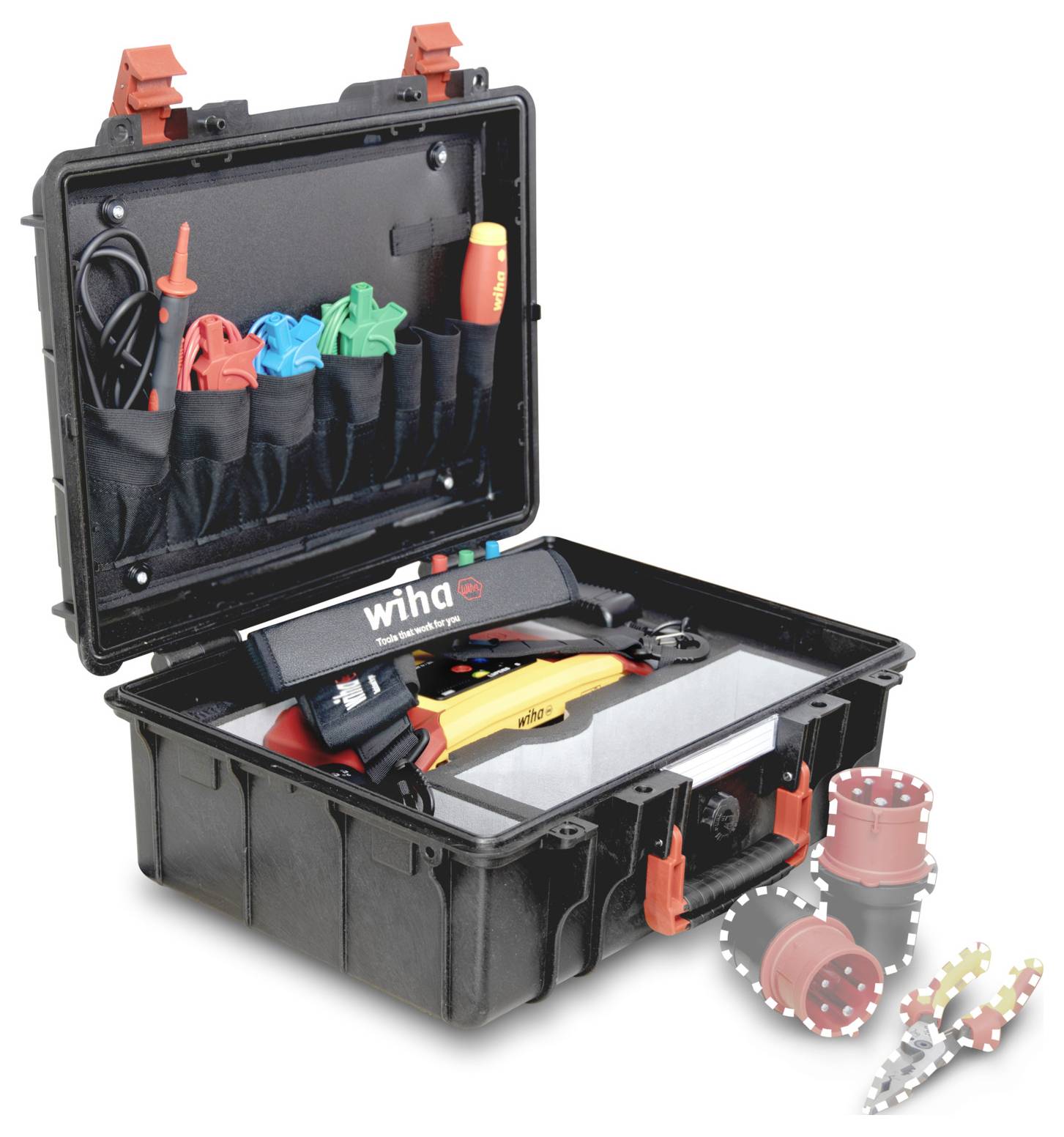

Installation tester set MFT one with tools and accessories (EU) in the case (47216)
- Revolutionary easy – installation tester checks, Sparkify does the rest
- Click, Click, Tap – complete and faster installation check by saving 60% on documentation with Sparkify*
- Accelerates the testing process by configurable automatic test sequence of all relevant measurements at one measurement point
- Clearly recognizable measurement value thanks to good / bad category
- Comfortable neck strap with holder for Smartphone and accessories enhance the working comfort
- Secure transport, tidy storage and additional storage space thanks to a robust case with foam inlay
Technical specifications
- Display: 480x320
- NFC transfer to Sparkify APP
- Magnetic cable holder
- Help function with graphics support
- Operating temperature: 0°C to 40°C
- Charging time: Approx. 6 hours
- DIN EN 60529, DIN EN IEC 61326-1, DIN EN IEC 61010-1, DIN EN IEC 61010-031, DIN EN IEC 61557
- Product type
Electrical tester set
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
USB
- Dim
(L x W x H) 255 x 135 x 107 mm
- Weight
1.3 kg
IP42
- Reading range (VDE)
Voltage
- DIN standard
DIN EN 61010-1
- Display type
Digital (LCD)
- Accuracy
3 %
- Calibration service
Factory calibration at delivery; recommended interval: 12 months
- Width
135 mm
- Height
107 mm
- Length
255 mm
- Test procedure
manual
automated
- Voltage supply
Rechargeable
- Type
MFT one (Art. Nr. 47216)
- Features
incl. case
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639962 Wiha MFT one (Art. Nr. 47216) Electrical tester set
Description
Annoying preparation and rework, paperwork and scattered storage areas? This is a thing of the past. The Wiha installation tester revolutionizes the installation testing with the Sparkify-APP: Click, click, tap.
CLICK - Preparation is simple and quick via APP. Pre-built input fields are used to document the documentation directly on the smartphone during the check, or alternatively the documentation prepared from the office or imported from a planning tool can be selected with a "click".

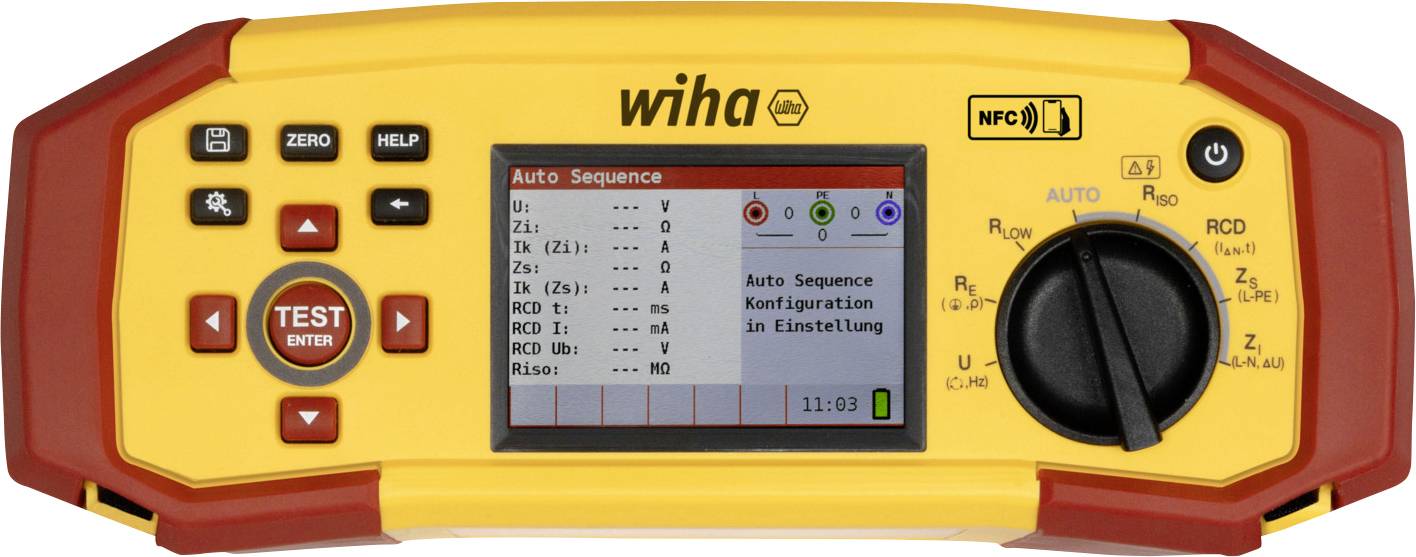

CLICK - The measurement process is controlled safely and intuitively via the rotating wheel on the device and can be accelerated by means of the configurable AUTO-TEST function.
Tap - A tap transfers the measurement results contactless via NFC to the Sparkify APP and links them directly to the circuit. This means that the documentation is not only complete but also immediately available digitally – easier, faster and compliant.
In addition, the automatic test sequence records all relevant standard measurements for one measuring point in a single pass. If necessary, the test sequence can be adapted to your own requirements. Each work step is supported by the clear good/bad category, which immediately provides orientation.
The installation tester from Wiha covers a wide range from voltage, frequency, rotary field, mains and loop impedance through trigger time and tripping current of RCDs to insulation, earthing and protective conductor resistance.

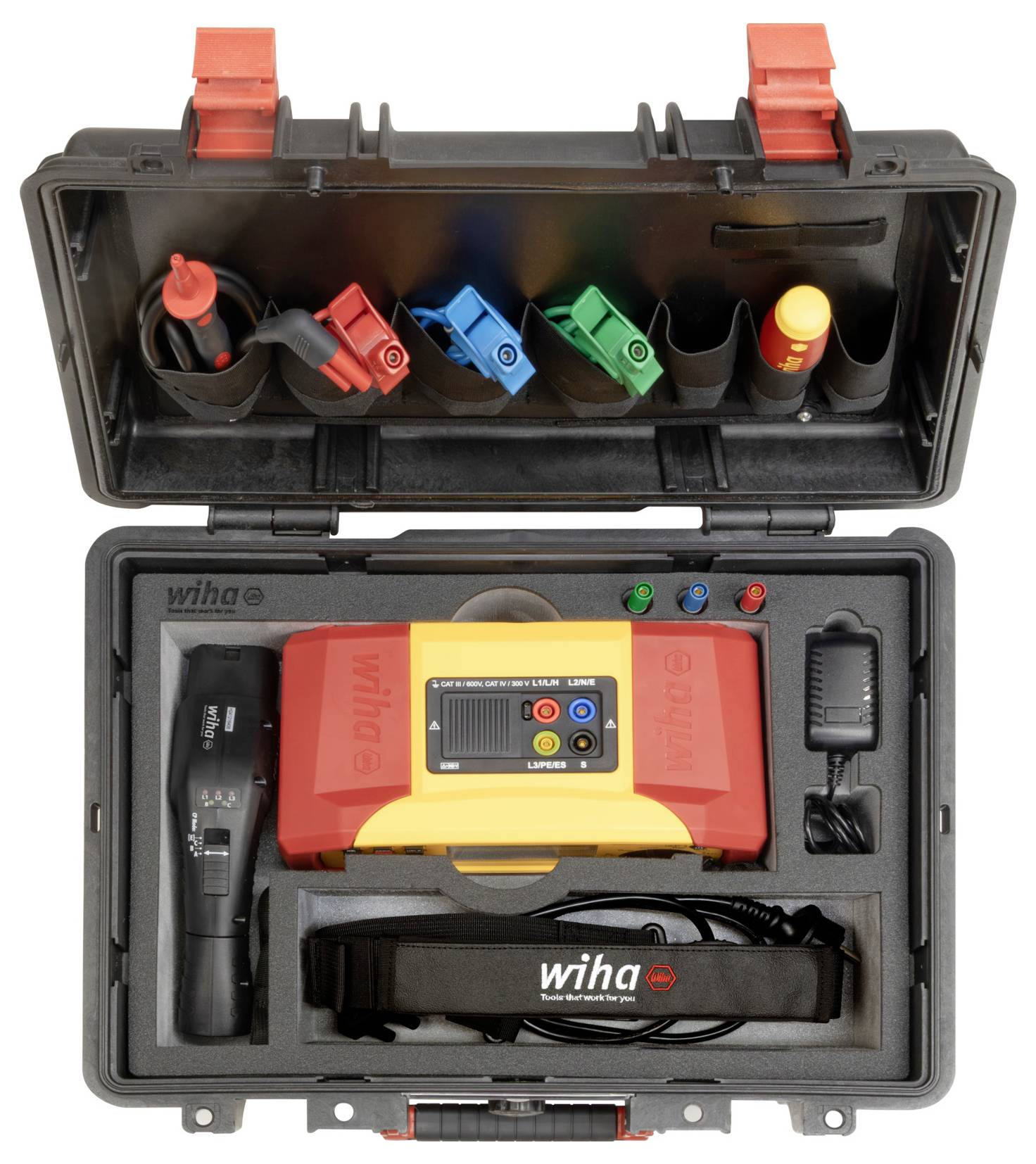

For mobile use on the construction site, the comfortable shoulder strap with holder for Smartphone as well as test leads to have everything within reach, WAS significantly increases the working comfort. Last but not least, the rugged L-case with foam lining not only protects the device during transport, but also creates order through additional storage space for additional accessories, such as the EVSE adapter, for testing wall boxes. The set is supplemented by the Wiha PocketMax® electric, the practical assistant for any screwdriving jobs.
This text is machine translated.
CLICK - Preparation is simple and quick via APP. Pre-built input fields are used to document the documentation directly on the smartphone during the check, or alternatively the documentation prepared from the office or imported from a planning tool can be selected with a "click".
CLICK - The measurement process is controlled safely and intuitively via the rotating wheel on the device and can be accelerated by means of the configurable AUTO-TEST function.
Tap - A tap transfers the measurement results contactless via NFC to the Sparkify APP and links them directly to the circuit. This means that the documentation is not only complete but also immediately available digitally – easier, faster and compliant.
In addition, the automatic test sequence records all relevant standard measurements for one measuring point in a single pass. If necessary, the test sequence can be adapted to your own requirements. Each work step is supported by the clear good/bad category, which immediately provides orientation.
The installation tester from Wiha covers a wide range from voltage, frequency, rotary field, mains and loop impedance through trigger time and tripping current of RCDs to insulation, earthing and protective conductor resistance.
For mobile use on the construction site, the comfortable shoulder strap with holder for Smartphone as well as test leads to have everything within reach, WAS significantly increases the working comfort. Last but not least, the rugged L-case with foam lining not only protects the device during transport, but also creates order through additional storage space for additional accessories, such as the EVSE adapter, for testing wall boxes. The set is supplemented by the Wiha PocketMax® electric, the practical assistant for any screwdriving jobs.
This text is machine translated.
Features
- For quick and safe testing of stationary equipment in accordance with DIN VDE 0100-600 and DIN VDE 0105-100 - optimal for the basic equipment of electricians.

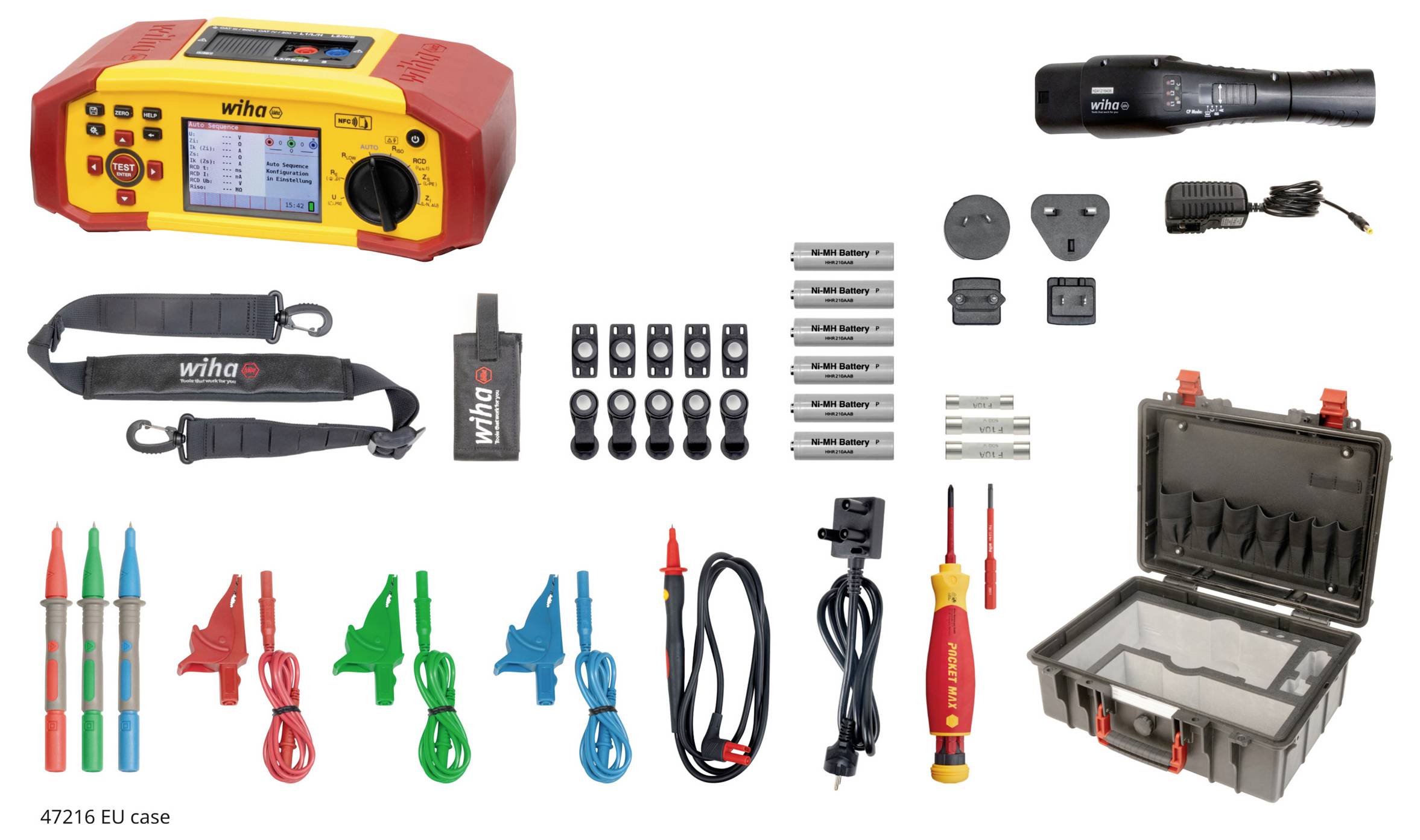

Scope of delivery
- Installation tester MFT one
- 3 test leads 1 m.
- Measuring cable with earthing contact plug
- Power supply unit
- 3 alligator clips
- 6 batteries 1.5 V.
- 3 test tips
- Test lead with test button to trigger a measurement
- User manual
- Quick start guide
