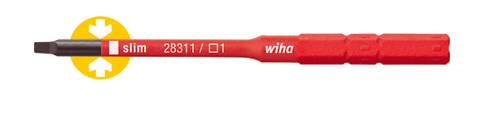

Wiha VDE-Wechselklinge slimVario 4kant Robertson 1x75mm/2,3mm VDE Square socket Interchangeable bit 1 2.3 mm 75 mm Compa
EAN:
Part number:
Item no:
Technical specifications
- Product type
Interchangeable bit
- Range of use
VDE
- Downforce
Square socket
- Size
1
- Spanner size
2.3 mm
- Blade length
75 mm
- Length
75 mm
- Blade Ø
6 mm
- Material
Chromium-vanadium steel
- Material properties
tempered
burnished
- Weight
0.0088 kg
- Screwdriver features
insulated
- Compatible with
Wiha Torque
- Material (details)
High-quality chromium-vanadium steel, hardened throughout, burnished.
- Max. torque
5.5 Nm
- Standards
Manufactured gem
- UKCA
not relevant
- DIN standard
DIN EN 60900
- EN standard
EN 60900
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 778123 Wiha VDE-Wechselklinge slimVario 4kant Robertson 1x75mm/2,3mm VDE Square socket Interchangeable bit 1 2.3 mm 75 mm Compa
Description
Individually tested protective insulation 1,000 V AC, VDE and GS tested. Standards: Manufactured acc. to IEC 60900:2012. Material: High-quality chrome vanadium steel, through-hardened, bronzed. Protective insulation moulded directly onto the bit and completely integrated into the bit in the lower area. Application: For all work on or around electrical components up to 1,000 V AC. Extra: The integrated protective insulation enables low-lying fastening and spring elements to be reached and manipulated. The slim form of the bit allows easy reaching of the screws below the finger and hand guards. Attention: 6 mm slimBits only to be used in the slimVario bit holder and slimTorque VDE bit holder (VDE torque system).
Features
- Caution: 6-mm slim bits are only in the slimVario Bit holder and SlimTorque VDE bit holder (VDE torque system). Use: For working on live parts up to 1000 V AC. 000 V AC
- Extra: Due to its integrated protective insulation can deep-lying screw and spring elements. Slim shape of the bit makes it easy to reach the screws underneath the finger and hand protection.
- Standards: manufactured in accordance with IEC 60900:2012. Bits: High quality chrome-vanadium steel, pierced hardened, bronzed. Directly on the bit die-cast protective insulation, which is fully integrated into the bit on front.
Hints
This text is machine translated.
