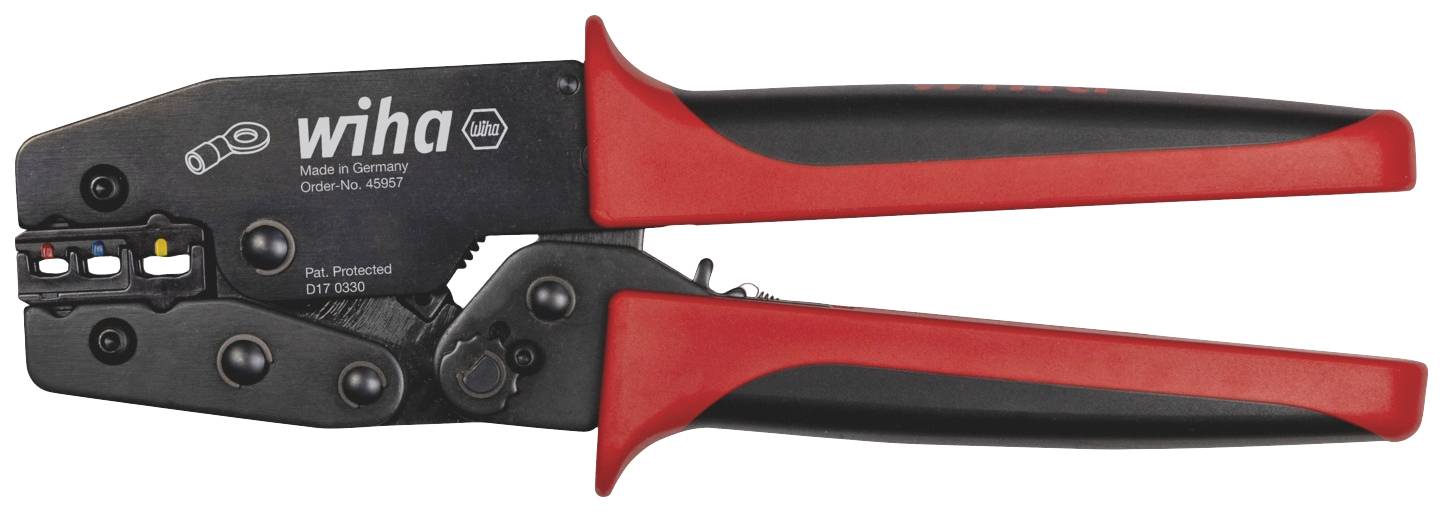

Wiha WIHA - 45957 - Crimpwerkzeug für Kabelschuhe 45957 Crimper Insulated cable lugs, Contacts 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Technical specifications
- Crimp according to DIN 46231, DIN 46237, DIN46245 Part 1-3
- Product type
Crimper
- Manufacturer part #
45957
- Range of uses
Insulated cable lugs
Contacts
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
10 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
10 awg
- Length
220 mm
- Weight
527 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3046023 Wiha WIHA - 45957 - Crimpwerkzeug für Kabelschuhe 45957 Crimper Insulated cable lugs, Contacts 0.5 up to 6 mm²
Description
With the conventional use of crimping pliers, there is the risk that the cable lugs are bent or are crimped correctly. The Wiha crimping pliers with oval crimp (O crimp) allows you to avoid unnecessary cable and connector waste. It presents itself with a crimping area of 0.5 to 6.0 mm² and thus covers a large part of the applications. Thanks to the color-coded crimping areas, the red insulated connectors from 0.5 to 1.0 mm² can be crimped in the red area, the blue insulated connectors from 1.5 to 2.5 mm² in the blue area and the yellow insulated connectors from 4.0 to 6.0 mm² in the yellow area. High-quality crimping results thanks to automatically adjusted pressure and the option of manually canceling the crimping by an emergency release function.
This text is machine translated.
