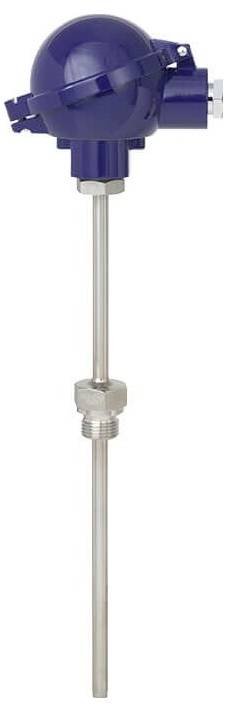

WIKA 14413410 TR10-C PT100 Resistance thermometer -30 up to 300 °C
Part number:
Item no:
Product type
Resistance thermometer
Model
PT100
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
300 °C
Connector
G 1/2"
Datasheet (PDF)
Technical specifications
- Output signal: 4 ... 20 mA, 2-wire technology
- Unit: °C
- Process connection G 1/2 B
- Protection tube: Straight, screw-in thread, shape 2G DIN 43772
- Protective tube material: CrNi steel 1.4571
- Design: Head
- Seal: Without
- Start/sign measurement range: Plus (incl. 0)
- Start measuring range: 0
- End/sign measurement range: Plus (incl. 0)
- End measurement range: 150
- Temperature range of the selected class: -30...+300°C.
- BSZ, aluminum, spherical, hinged cover
- Cable input: Standard cable input
- Thread size for cable inlet M20 x 1.5
- Transmitter: T15, digital transmitter, 4…20 mA, programmable
- Connection to neck tube: M24 x 1.5
- Protective tube diameter 9x1 mm
- Mounting length [A] [U1]: 250 mm
- Neck length [MH/N]: 130 mm
- Diameter of measuring input 6 mm
- Sheath material for measuring insert: CrNi steel 1.4571
- Total length of protection tube in replacement case [L]: 395 mm
- Measuring insert length in replacement case [l5]: 405 mm
- Mounting position transmitter: Measuring insert
- Explosion protection: Without
- Permissible ambient temperature transmitter: Standard -40...85°C.
- Configuration: Customer-specific configuration
- Configuration of sensor: Pt100
- Input configuration: 4-wire
- Error signaling: Controlling 3.5 mA
- Product type
Resistance thermometer
- Type
TR10-C
- Model
PT100
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
300 °C
- Temperature reading range
-30 up to 300 °C
- Connector
G 1/2"
- Enclosure material
Aluminium
- Accuracy class
A
- Length
405 mm
- (Ø)
9 mm
- Dim
(Ø x L) 9 mm x 405 mm
- Content
1 pc(s)
- Connection
G 1/2 B
Documents & Downloads
Datasheet
Datasheet 3525125 WIKA 14413410 TR10-C PT100 Resistance thermometer -30 up to 300 °C
User & Safety Instructions
User & Safety Instructions 3525125 WIKA 14413410 TR10-C PT100 Resistance thermometer -30 up to 300 °C
Description
TR10-C resistance thermometer with multi-part screw-in protective tube
Technical data according to data sheet:TE 60.03
1xPt100, 4-Conductor
Class A, EN 60751
Temperature range of the selected class: -30...+300°C.
BSZ, aluminum, spherical, hinged cover
Cable input: Standard cable input
Thread size for cable inlet M20 x 1.5
Transmitter: T15, digital transmitter, 4…20 mA, programmable
Connection to neck tube: M24 x 1.5
Protection tube: Straight, screw-in thread, shape 2G DIN 43772
Protective tube diameter 9x1 mm
Process connection G 1/2 B
Protective tube material: CrNi steel 1.4571
Mounting length [A] [U1]: 250 mm
Neck length [MH/N]: 130 mm
Diameter of measuring input 6 mm
Sheath material for measuring insert: CrNi steel 1.4571
Seal: Without
Mounting position transmitter: Measuring insert
Total length of protection tube in replacement case [L]: 395 mm
Measuring insert length in replacement case [l5]: 405 mm
Digital temperature-transmitter for resistance thermometers T15
Technical data according to data sheet:TE 15.01
Output signal: 4 ... 20 mA, 2-wire technology
Design: Head
Explosion protection: Without
Permissible ambient temperature transmitter: Standard -40...85°C.
Configuration: Customer-specific configuration
Configuration of sensor: Pt100
Input configuration: 4-wire
Unit: °C
Start/sign measurement range: Plus (incl. 0)
Start measuring range: 0
End/sign measurement range: Plus (incl. 0)
End measurement range: 150
Error signaling: Controlling 3.5 mA
