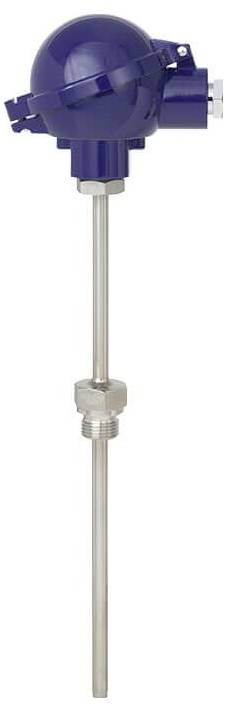

WIKA 14413434 TR10-C Resistance thermometer -30 up to 300 °C
Part number:
Item no:
Product type
Resistance thermometer
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
300 °C
Connector
Cable gland (M20)
Type
TR10-C
Datasheet (PDF)
Technical specifications
- Process connection G 1/2 B
- Protection tube: Straight, screw-in thread, shape 2G DIN 43772
- Protective tube material: CrNi steel 1.4571
- Seal: Without
- Temperature range of the selected class: -30...+300°C.
- BSZ, aluminum, spherical, hinged cover
- Cable input: Standard cable input
- Thread size for cable inlet M20 x 1.5
- Transmitter: Without (with terminal socket)
- Connection to neck tube: M24 x 1.5
- Protective tube diameter 9x1 mm
- Mounting length [A] [U1]: 250 mm
- Neck length [MH/N]: 130 mm
- Diameter of measuring input 6 mm
- Sheath material for measuring insert: CrNi steel 1.4571
- Total length of protection tube in replacement case [L]: 395 mm
- Measuring insert length in replacement case [l5]: 405 mm
- Product type
Resistance thermometer
- Type
TR10-C
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
300 °C
- Temperature reading range
-30 up to 300 °C
- Connector
Cable gland (M20)
- Enclosure material
Aluminium
- Accuracy class
A
- Resistance reference
0 °C
- Length
405 mm
- (Ø)
9 mm
- Dim
(Ø x L) 9 mm x 405 mm
- Content
1 pc(s)
- Connection
G 1/2 B
Documents & Downloads
Datasheet
Datasheet 3525121 WIKA 14413434 TR10-C Resistance thermometer -30 up to 300 °C
User & Safety Instructions
User & Safety Instructions 3525121 WIKA 14413434 TR10-C Resistance thermometer -30 up to 300 °C
Description
TR10-C resistance thermometer with multi-part screw-in protective tube
Technical data according to data sheet:TE 60.03
1xPt100, 4-Conductor
Class A, EN 60751
Temperature range of the selected class: -30...+300°C.
BSZ, aluminum, spherical, hinged cover
Cable input: Standard cable input
Thread size for cable inlet M20 x 1.5
Transmitter: Without (with terminal socket)
Connection to neck tube: M24 x 1.5
Protection tube: Straight, screw-in thread, shape 2G DIN 43772
Protective tube diameter 9x1 mm
Process connection G 1/2 B
Protective tube material: CrNi steel 1.4571
Mounting length [A] [U1]: 250 mm
Neck length [MH/N]: 130 mm
Diameter of measuring input 6 mm
Sheath material for measuring insert: CrNi steel 1.4571
Seal: Without
Total length of protection tube in replacement case [L]: 395 mm
Measuring insert length in replacement case [l5]: 405 mm
This text is machine translated.
Technical data according to data sheet:TE 60.03
1xPt100, 4-Conductor
Class A, EN 60751
Temperature range of the selected class: -30...+300°C.
BSZ, aluminum, spherical, hinged cover
Cable input: Standard cable input
Thread size for cable inlet M20 x 1.5
Transmitter: Without (with terminal socket)
Connection to neck tube: M24 x 1.5
Protection tube: Straight, screw-in thread, shape 2G DIN 43772
Protective tube diameter 9x1 mm
Process connection G 1/2 B
Protective tube material: CrNi steel 1.4571
Mounting length [A] [U1]: 250 mm
Neck length [MH/N]: 130 mm
Diameter of measuring input 6 mm
Sheath material for measuring insert: CrNi steel 1.4571
Seal: Without
Total length of protection tube in replacement case [L]: 395 mm
Measuring insert length in replacement case [l5]: 405 mm
This text is machine translated.
