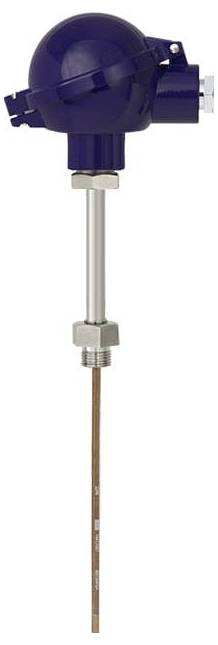

WIKA 14426982 TR10-B PT100 Resistance thermometer -30 up to 300 °C
Part number:
Item no:
Product type
Resistance thermometer
Model
PT100
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
300 °C
Connector
G 1/2"
Datasheet (PDF)
Technical specifications
- Seal: Copper
- Temperature range of the selected class: -30...+300°C.
- BSZ, aluminum, spherical, hinged cover
- Cable input: Standard cable input
- Thread size for cable inlet M20 x 1.5
- Transmitter: Without (with terminal socket)
- Connection to neck tube: M24 x 1.5
- Neck length [MH/N]: 150 mm
- Diameter of measuring input 6 mm
- Sheath material for measuring insert: CrNi steel 1.4571
- Measuring insert length in replacement case [l5]: 315 mm
- Explosion protection / electrical approval: ATEX
- Protection type Ex i
- Neck tube: D = 12 x 2.5 mm
- Thread size G 1/2 B
- Neck tube material: CrNi steel 1.4571
- Mounting length [A] [l1/A/U2]: 140 mm
- Product type
Resistance thermometer
- Type
TR10-B
- Model
PT100
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
300 °C
- Temperature reading range
-30 up to 300 °C
- Connector
G 1/2"
- Enclosure material
Aluminium
- Accuracy class
A
- Length
140 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 140 mm
- Ex Zoning
1
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3526009 WIKA 14426982 TR10-B PT100 Resistance thermometer -30 up to 300 °C
User & Safety Instructions
User & Safety Instructions 3526009 WIKA 14426982 TR10-B PT100 Resistance thermometer -30 up to 300 °C
Description
TR10-B resistance thermometer for installation in a protective tube
Technical data according to data sheet:TE 60.02
Explosion protection / electrical approval: ATEX
Protection type Ex i
Zone 1 Gas [ II 2G Ex ia IIC T1…T6 GB ]
1xPt100, 4-Conductor
Class A, EN 60751
Temperature range of the selected class: -30...+300°C.
BSZ, aluminum, spherical, hinged cover
Cable input: Standard cable input
Thread size for cable inlet M20 x 1.5
Transmitter: Without (with terminal socket)
Connection to neck tube: M24 x 1.5
Neck tube: D = 12 x 2.5 mm
Thread size G 1/2 B
Neck tube material: CrNi steel 1.4571
Neck length [MH/N]: 150 mm
Mounting length [A] [l1/A/U2]: 140 mm
Diameter of measuring input 6 mm
Sheath material for measuring insert: CrNi steel 1.4571
Seal: Copper
Measuring insert length in replacement case [l5]: 315 mm
