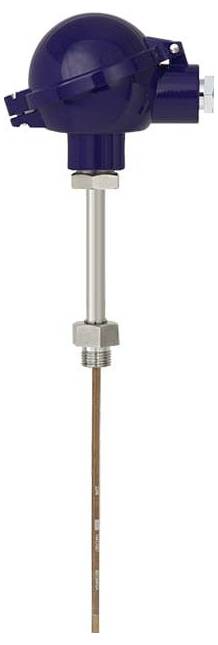

WIKA 14427593 TR10-B Resistance thermometer -30 up to 300 °C
Part number:
Item no:
Product type
Resistance thermometer
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
300 °C
Type
TR10-B
Outputs
Current (analogue)
Datasheet (PDF)
Technical specifications
- Output signal: 4 ... 20 mA, 2-wire technology
- Unit: °C
- Design: Head
- Seal: Copper
- Measuring range: Start - sign: Minus
- Start measuring range: 30
- End/sign measurement range: Plus (incl. 0)
- End measurement range: 300
- Temperature range of the selected class: -30...+300°C.
- BSZ, aluminum, spherical, hinged cover
- Cable input: Standard cable input
- Thread size for cable inlet M20 x 1.5
- Transmitter: T15, digital transmitter, 4…20 mA, programmable
- Connection to neck tube: M24 x 1.5
- Neck length [MH/N]: 150 mm
- Diameter of measuring input 6 mm
- Sheath material for measuring insert: CrNi steel 1.4571
- Measuring insert length in replacement case [l5]: 405 mm
- Explosion protection / electrical approval: ATEX
- Type of ignition protection: Ex ia
- Mounting position transmitter: Measuring insert
- Explosion protection ATEX/IECEx
- Permissible ambient temperature transmitter: Standard -40...85°C.
- Configuration: Customer-specific configuration
- Configuration of sensor: Pt100
- Input configuration: 4-wire
- Error signaling: Controlling 3.5 mA
- Neck tube: D = 12 x 2.5 mm
- Thread size G 1/2 B
- Neck tube material: CrNi steel 1.4571
- Mounting length [A] [l1/A/U2]: 230 mm
- Product type
Resistance thermometer
- Type
TR10-B
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
300 °C
- Temperature reading range
-30 up to 300 °C
- Enclosure material
Aluminium
- Accuracy class
A
- Length
230 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 230 mm
- Ex Zoning
1
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3525503 WIKA 14427593 TR10-B Resistance thermometer -30 up to 300 °C
User & Safety Instructions
User & Safety Instructions 3525503 WIKA 14427593 TR10-B Resistance thermometer -30 up to 300 °C
Description
TR10-B resistance thermometer for installation in a protective tube
Technical data according to data sheet:TE 60.02
Explosion protection / electrical approval: ATEX
Protection type Ex i
Zone 1 Gas [ II 2G Ex ia IIC T1…T6 GB ]
1xPt100, 4-Conductor
Class A, EN 60751
Temperature range of the selected class: -30...+300°C.
BSZ, aluminum, spherical, hinged cover
Cable input: Standard cable input
Thread size for cable inlet M20 x 1.5
Transmitter: T15, digital transmitter, 4…20 mA, programmable
Connection to neck tube: M24 x 1.5
Neck tube: D = 12 x 2.5 mm
Thread size G 1/2 B
Neck tube material: CrNi steel 1.4571
Neck length [MH/N]: 150 mm
Mounting length [A] [l1/A/U2]: 230 mm
Diameter of measuring input 6 mm
Sheath material for measuring insert: CrNi steel 1.4571
Seal: Copper
Mounting position transmitter: Measuring insert
Measuring insert length in replacement case [l5]: 405 mm
Digital temperature-transmitter for resistance thermometers T15
Technical data according to data sheet:TE 15.01
Output signal: 4 ... 20 mA, 2-wire technology
Design: Head
Explosion protection ATEX/IECEx
Type of ignition protection: Ex ia
Permissible ambient temperature transmitter: Standard -40...85°C.
Configuration: Customer-specific configuration
Configuration of sensor: Pt100
Input configuration: 4-wire
Unit: °C
Measuring range: Start - sign: Minus
Start measuring range: 30
End/sign measurement range: Plus (incl. 0)
End measurement range: 300
Error signaling: Controlling 3.5 mA
