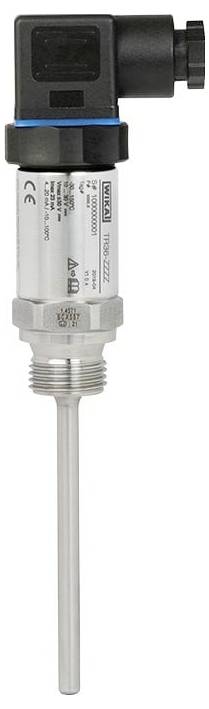

WIKA 14497575 TR36 Resistance thermometer -30 up to 150 °C
Part number:
Item no:
Product type
Resistance thermometer
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
150 °C
Connector
Plug
Type
TR36
Datasheet (PDF)
Technical specifications
- Pt100 class A output signal (IEC 60751), 3-conductor
- Electrical connection: Right-angle plug - DIN EN 175301- 803 Form A.
- Process connection: Screw-in pin G 1/4 B
- Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
- Process temperature: -30 ... +150°C
- Pin assignment: Standard assignment of Pt sensors (see data sheet)
- Sensor diameter ØD 6 mm
- Mounting length A(U1)/A(U2): 50 mm
- Accessories Electronic. Connections: Mating plug with blue seal DIN EN 175301-803 shape A
- Product type
Resistance thermometer
- Type
TR36
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
150 °C
- Temperature reading range
-30 up to 150 °C
- Connector
Plug
- Accuracy class
A
- Length
50 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 50 mm
- Content
1 pc(s)
- Connection
G 1/4 B screw-in stud
Documents & Downloads
Datasheet
Datasheet 3524992 WIKA 14497575 TR36 Resistance thermometer -30 up to 150 °C
User & Safety Instructions
User & Safety Instructions 3524992 WIKA 14497575 TR36 Resistance thermometer -30 up to 150 °C
Description
TR36 resistance thermometer in a compact design
Technical data according to data sheet:TE 60.36
Electrical connection: Right-angle plug - DIN EN 175301- 803 Form A.
Pt100 class A output signal (IEC 60751), 3-conductor
Process temperature: -30 ... +150°C
Process connection: Screw-in pin G 1/4 B
Sensor diameter ØD 6 mm
Mounting length A(U1)/A(U2): 50 mm
Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
Accessories Electronic. Connections: Mating plug with blue seal DIN EN 175301-803 shape A
Pin assignment: Standard assignment of Pt sensors (see data sheet)
Custom label layout: WIKA standard
TR36 resistance thermometer in a compact design
Technical data according to data sheet:TE 60.36
Electrical connection: Right-angle plug - DIN EN 175301- 803 Form A.
Pt100 class A output signal (IEC 60751), 3-conductor
Process temperature: -30 ... +150°C
Process connection: Screw-in pin G 1/4 B
Sensor diameter ØD 6 mm
Mounting length A(U1)/A(U2): 50 mm
Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
Accessories Electronic. Connections: Mating plug with blue seal DIN EN 175301-803 shape A
Pin assignment: Standard assignment of Pt sensors (see data sheet)
Custom label layout: WIKA standard
