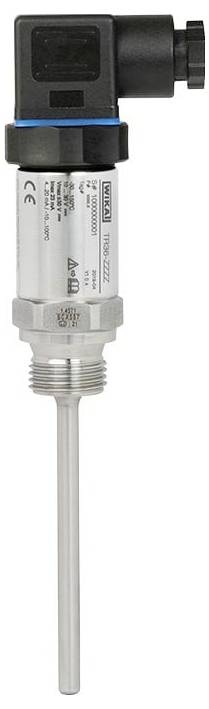

WIKA 14575713 TR36 Resistance thermometer 0 up to 200 °C
Part number:
Item no:
Product type
Resistance thermometer
Temperature reading range (min.)
0 °C
Temperature reading range (max.)
200 °C
Connector
Plug
Type
TR36
Datasheet (PDF)
Technical specifications
- Output signal: 4…20mA, 2-wire
- Electrical connection: Right-angle plug - DIN EN 175301- 803 Form A.
- Process connection: Screw joint G 1/2 B, clamping ring CrNi steel
- Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
- Transmitter temperature unit: °C
- Process temperature: -30 ... +250°C
- Pin assignment: Standard assignment 1+ (10..30VDC) and 2- (0V)
- Sensor diameter ØD 6 mm
- Mounting length A(U1)/A(U2): 100 mm
- Accessories Electronic. Connections: Mating plug with blue seal DIN EN 175301-803 shape A
- Start/sign measurement range: Plus (incl. 0)
- Start measuring range: 0
- End/sign measurement range: Plus (incl. 0)
- End measurement range: 200
- Transmitter error signaling: Control < 3.6 mA
- Neck length N(MH): 70 mm
- Product type
Resistance thermometer
- Type
TR36
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Temperature reading range (min.)
0 °C
- Temperature reading range (max.)
200 °C
- Temperature reading range
0 up to 200 °C
- Connector
Plug
- Orientation (connectors)
90°
- Enclosure material
Non-corrosive steel
- Length
100 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 100 mm
- Content
1 pc(s)
- Connection
Compression fitting G 1/2 B, clamping ring CrNi steel
Documents & Downloads
Datasheet
Datasheet 3525095 WIKA 14575713 TR36 Resistance thermometer 0 up to 200 °C
User & Safety Instructions
User & Safety Instructions 3525095 WIKA 14575713 TR36 Resistance thermometer 0 up to 200 °C
Description
TR36 resistance thermometer in a compact design
Technical data according to data sheet:TE 60.36
Electrical connection: Right-angle plug - DIN EN 175301- 803 Form A.
Output signal: 4…20mA, 2-wire
Transmitter temperature unit: °C
Process temperature: -30 ... +250°C
Start/sign measurement range: Plus (incl. 0)
Start measuring range: 0
End/sign measurement range: Plus (incl. 0)
End measurement range: 200
Process connection: Screw joint G 1/2 B, clamping ring CrNi steel
Sensor diameter ØD 6 mm
Mounting length A(U1)/A(U2): 100 mm
Neck length N(MH): 70 mm
Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
Accessories Electronic. Connections: Mating plug with blue seal DIN EN 175301-803 shape A
Transmitter error signaling: Control < 3.6 mA
Pin assignment: Standard assignment 1+ (10..30VDC) and 2- (0V)
Custom label layout: WIKA standard
