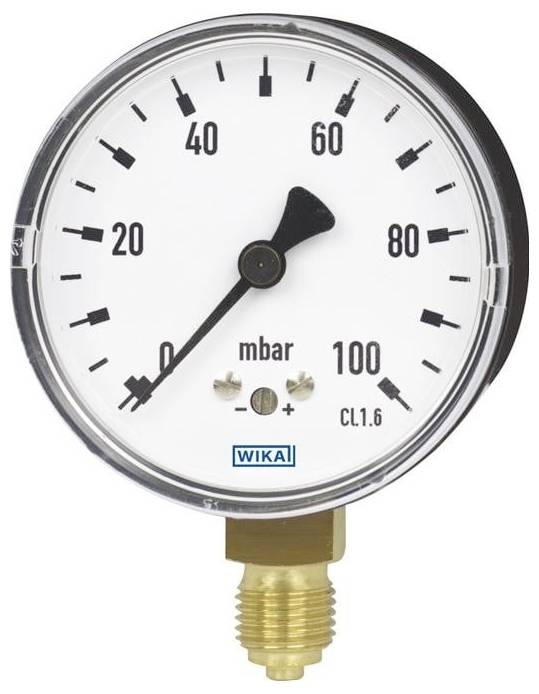

Image similar
WIKA 611.10 Pressure gauge Back side 0 up to 100 mbar
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 611.10
- Housing: Steel, black
- Unit: Mbar
- Display range 0 mbar...100 mbar
- Process connection G 1/4 B
- Pointer unit: Copper alloy
- Measuring system: Copper alloy
- Nominal size 063 mm
- Connection position: Rear central (Axial)
- Viewing glass: Acrylic glass (PMMA)
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Scale color for 1.Division (outside): Black
- Face background: White
- Packaging: Individual packaging
- Accuracy class dial: *Cl.1.6*
- Product type
Pressure gauge
- Min. display range
0 mbar
- Display range (max.)
100 mbar
- Manufacturer part #
9071571
- Material (details)
Copper alloys
- Dim
(Ø) 063 mm
- Connection
G 1/4 B
- Connector
Back side
- Max. operating pressure
100 mbar
- Operating pressure (min.)
0 mbar
- Pressure range
0 up to 100 mbar
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3525626 WIKA 611.10 Pressure gauge Back side 0 up to 100 mbar
User & Safety Instructions
User & Safety Instructions 3525626 WIKA 611.10 Pressure gauge Back side 0 up to 100 mbar
Description
Pressure gauge with capsule spring, standard version
Type 611.10
Technical data according to data sheet PM 06.01
Accuracy class: Class 1.6
Measuring system: Copper alloy
Nominal size 063 mm
Unit: Mbar
Display range 0 mbar...100 mbar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing glass: Acrylic glass (PMMA)
Pointer unit: Copper alloy
Packaging: Individual packaging
Housing: Steel, black
Face labels
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
Accuracy class dial: *Cl.1.6*
Individual package labels: Standard (with Wika logo)
Labels Outer packaging: Standard (with Wika logo)
This text is machine translated.
