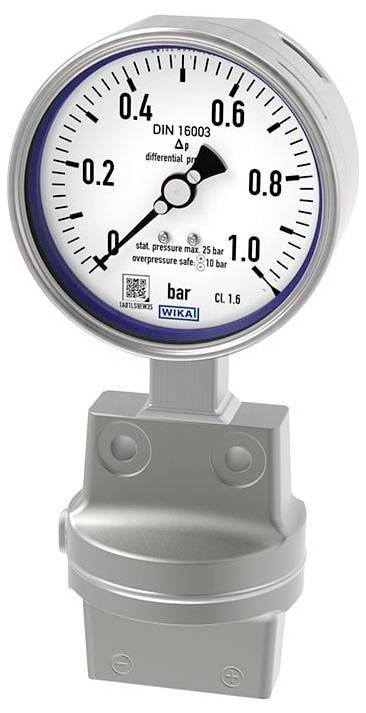

Image similar
WIKA 732.51 Differential pressure gauge Bottom 2.5 bar (max)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 732.51
- Housing: With pressure relief opening
- Display range 0...25 mbar
- Process connection 2 x G 1/4 internal
- Needle mechanism: CrNi steel
- Nominal size 160 mm
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Housing filling: Without
- Ring: CrNi steel
- Pointer: Adjusting pointer
- Overload limit 2.5 bar
- Ambient temperature -20...+60 °C
- Measuring material temperature -20...+100 °C
- IP 54 protection
- Serial number: With serial number
- max. Operating pressure 2.5 bar
- Compressed air ventilation/flush connection: Compressed air ventilation
- Product type
Differential pressure gauge
- Min. display range
0 mbar
- Display range (max.)
25 mbar
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Manufacturer part #
9082921
- Material (details)
0...25 mbar
- Dim
(Ø) 160 mm
- Connection
2 x G 1/4 internal
- Connector
Bottom
- Max. operating pressure
2.5 bar
- Pressure range
2.5 bar (max)
- (Ø)
160 mm
IP54
Documents & Downloads
Datasheet
Datasheet 3525884 WIKA 732.51 Differential pressure gauge Bottom 2.5 bar (max)
User & Safety Instructions
User & Safety Instructions 3525884 WIKA 732.51 Differential pressure gauge Bottom 2.5 bar (max)
Description
Differential pressure gauge with plate spring
Fully metallic measuring agent space
Chemical design
Type 732.51
Technical data according to data sheet PM 07.05
Case: CrNi steel
Ring: CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Display range 0...25 mbar
Process connection 2 x G 1/4 internal
Connection position: Below
Compressed air ventilation/flush connection: Compressed air ventilation
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
Accuracy class: Class 1.6
max. Operating pressure 2.5 bar
Overload limit 2.5 bar
IP 54 protection
Pointer: Adjusting pointer
Viewing glass: Multi-layered safety glass
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
Housing: With pressure relief opening
This text is machine translated.
Fully metallic measuring agent space
Chemical design
Type 732.51
Technical data according to data sheet PM 07.05
Case: CrNi steel
Ring: CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Display range 0...25 mbar
Process connection 2 x G 1/4 internal
Connection position: Below
Compressed air ventilation/flush connection: Compressed air ventilation
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
Accuracy class: Class 1.6
max. Operating pressure 2.5 bar
Overload limit 2.5 bar
IP 54 protection
Pointer: Adjusting pointer
Viewing glass: Multi-layered safety glass
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
Housing: With pressure relief opening
This text is machine translated.
