Name: WIKA 732.51 Differential pressure gauge Bottom 25 bar (max)
Brand: WIKA
SKU: 3525866

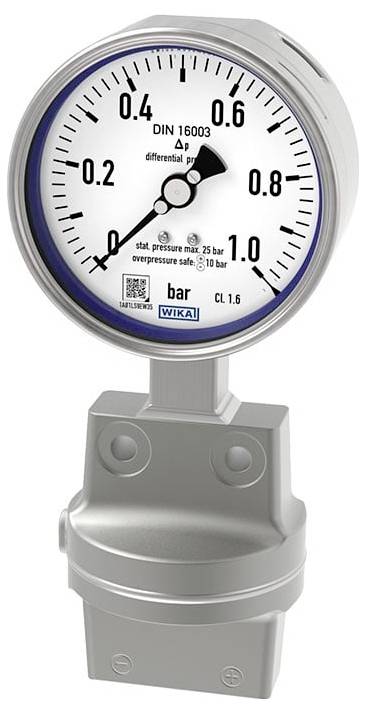

'A differential pressure gauge displays a scale from 0 to 1.0 bar, with markings for 0.2, 0.4, 0.6, 0.8, and label DIN 16003.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type 732.51
Housing: With pressure relief opening
Display range 0...10 bar
Process connection 2 x G 1/4 internal
Needle mechanism: CrNi steel
Nominal size 160 mm
Connection position: Below
Viewing glass: Multi-layered safety glass
Accuracy class: Class 1.6
Pressure gauge standard: International (Europe)
Housing filling: Without
Ring: CrNi steel
Pointer: Adjusting pointer
Overload limit 25 bar
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
IP 54 protection
Serial number: With serial number
max. Operating pressure 25 bar

Product type: Differential pressure gauge

Min. display range: 0 bar

Display range (max.): 10 bar

Operating temperature: -20 °C (min)

Min. operating temperature: -20 °C

Manufacturer part #: 9400234

Material (details): 0...10 bar

Dim: (Ø) 160 mm

Connection: 2 x G 1/4 internal

Connector: Bottom

Max. operating pressure: 25 bar

Pressure range: 25 bar (max)

(Ø): 160 mm

: IP54

Documents & Downloads

Datasheet

Datasheet 3525866 WIKA 732.51 Differential pressure gauge Bottom 25 bar (max)

User & Safety Instructions

User & Safety Instructions 3525866 WIKA 732.51 Differential pressure gauge Bottom 25 bar (max)

Description

Differential pressure gauge with plate spring
Fully metallic measuring agent space
Chemical design
Type 732.51
Technical data according to data sheet PM 07.05
Case: CrNi steel
Ring: CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Display range 0...10 bar
Process connection 2 x G 1/4 internal
Connection position: Below
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
Accuracy class: Class 1.6
max. Operating pressure 25 bar
Overload limit 25 bar
IP 54 protection
Pointer: Adjusting pointer
Viewing glass: Multi-layered safety glass
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
Housing: With pressure relief opening

This text is machine translated.
