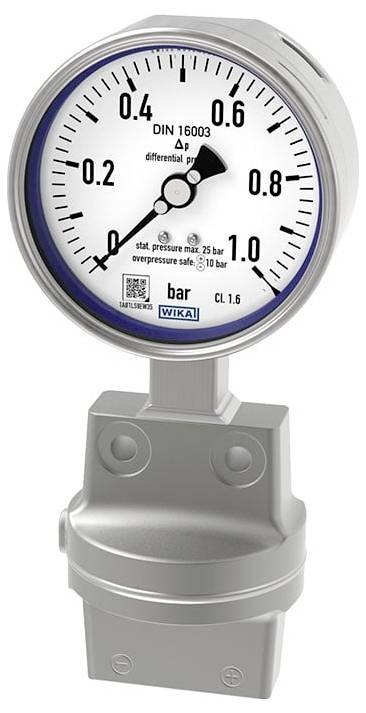

Image similar
WIKA 732.51 Differential pressure gauge Bottom 6 bar (max)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 732.51
- Housing: With pressure relief opening
- Display range 0...160 mbar
- Process connection 2 x G 1/4 internal
- Needle mechanism: CrNi steel
- Nominal size 160 mm
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Housing filling: Without
- Ring: CrNi steel
- Pointer: Adjusting pointer
- Overload limit 2.5 bar
- Ambient temperature -20...+60 °C
- Measuring material temperature -20...+100 °C
- IP 54 protection
- Serial number: With serial number
- max. Operating pressure 6 bar
- Compressed air ventilation/flush connection: Compressed air ventilation
- Product type
Differential pressure gauge
- Min. display range
0 mbar
- Display range (max.)
160 mbar
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Manufacturer part #
9082964
- Material (details)
0...160 mbar
- Dim
(Ø) 160 mm
- Connection
2 x G 1/4 internal
- Connector
Bottom
- Max. operating pressure
6 bar
- Pressure range
6 bar (max)
- (Ø)
160 mm
IP54
Documents & Downloads
Datasheet
Datasheet 3525889 WIKA 732.51 Differential pressure gauge Bottom 6 bar (max)
User & Safety Instructions
User & Safety Instructions 3525889 WIKA 732.51 Differential pressure gauge Bottom 6 bar (max)
Description
Differential pressure gauge with plate spring
Fully metallic measuring agent space
Chemical design
Type 732.51
Technical data according to data sheet PM 07.05
Case: CrNi steel
Ring: CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Display range 0...160 mbar
Process connection 2 x G 1/4 internal
Connection position: Below
Compressed air ventilation/flush connection: Compressed air ventilation
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
Accuracy class: Class 1.6
max. Operating pressure 6 bar
Overload limit 2.5 bar
IP 54 protection
Pointer: Adjusting pointer
Viewing glass: Multi-layered safety glass
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
Housing: With pressure relief opening
This text is machine translated.
Fully metallic measuring agent space
Chemical design
Type 732.51
Technical data according to data sheet PM 07.05
Case: CrNi steel
Ring: CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Display range 0...160 mbar
Process connection 2 x G 1/4 internal
Connection position: Below
Compressed air ventilation/flush connection: Compressed air ventilation
Ambient temperature -20...+60 °C
Measuring material temperature -20...+100 °C
Accuracy class: Class 1.6
max. Operating pressure 6 bar
Overload limit 2.5 bar
IP 54 protection
Pointer: Adjusting pointer
Viewing glass: Multi-layered safety glass
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
Housing: With pressure relief opening
This text is machine translated.
