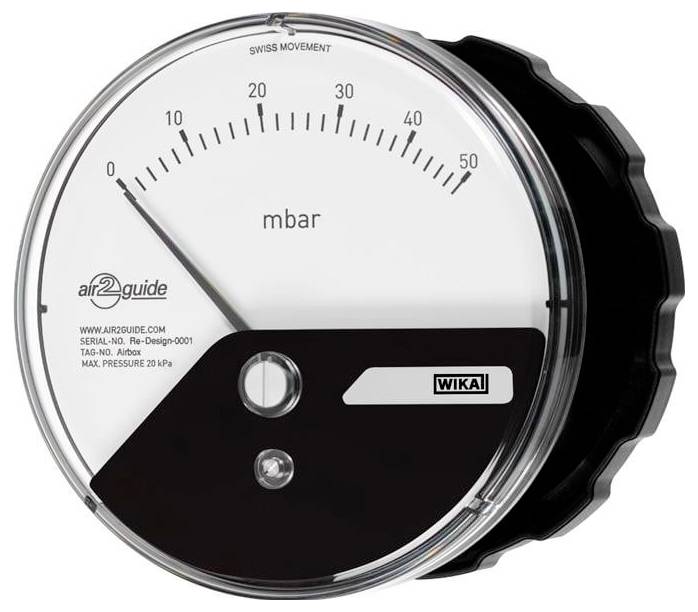

WIKA A2G-10 Differential pressure gauge
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Housing: Plastic, black
- Unit: Pa
- Display range: 0 Pa...1000 Pa
- Nominal size 110 mm
- Inspection window: Makrolon (UV-stabilized)
- Accuracy class 3.0 (≤ 125 Pa Kl 5.0; ≤100 Pa Kl 10.0).
- Serial number on dial: FORTLFD.-NR. *...*
- IP 54 protection
- Brand/drag pointers: Without
- Unit 2. Scale: None
- Face design: Standard air2guide
- Certificates: Without
- Measuring method: Mechanical differential pressure
- Housing mounting: Installation including 3 fixing screws
- Screw-in fittings: 2x angle, G1/8 on the device side, for hose diameter 4…6 mm
- Separation membrane: Standard design silicone diaphragm
- Segment design: Standard air2guide
- Product type
Differential pressure gauge
- Min. display range
0 Pa
- Display range (max.)
1000 Pa
- Manufacturer part #
43772919
- Material (details)
0 Pa...1000 Pa
- Dim
(Ø) 110 mm
- (Ø)
110 mm
IP54
Documents & Downloads
Datasheet
Datasheet 3526046 WIKA A2G-10 Differential pressure gauge
User & Safety Instructions
User & Safety Instructions 3526046 WIKA A2G-10 Differential pressure gauge
Description
A2G-10 air2guide - mechanical differential pressure
Standard accessories 3 mounting screws
Technical data according to data sheet PM 07.40
Nominal size 110 mm
Accuracy class 3.0 (≤ 125 Pa Kl 5.0; ≤100 Pa Kl 10.0).
Inspection window: Makrolon (UV-stabilized)
Measuring method: Mechanical differential pressure
Unit: Pa
Display range: 0 Pa...1000 Pa
Brand/drag pointers: Without
Housing: Plastic, black
Housing mounting: Installation including 3 fixing screws
Screw-in fittings: 2x angle, G1/8 on the device side, for hose diameter 4…6 mm
Separation membrane: Standard design silicone diaphragm
IP 54 protection
Face design: Standard air2guide
Segment design: Standard air2guide
Serial number on dial: FORTLFD.-NR. *...*
Certificates: Without
Unit 2. Scale: None
