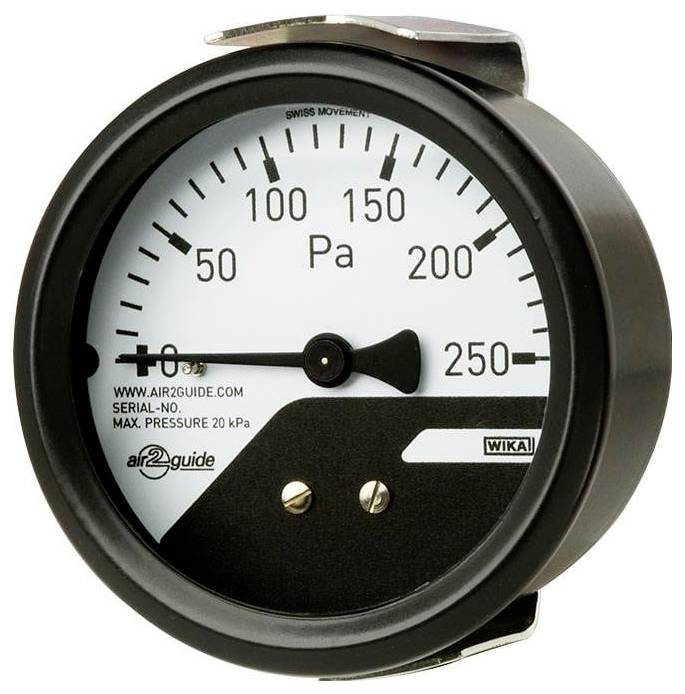

Image similar
WIKA A2G-MINI Differential pressure gauge
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Case: CrNi steel
- Unit: Pa
- Display range: 0 Pa...2500 Pa
- Process connection: Hose connection diameter 4-6 mm
- Nominal size 063 mm
- Viewing glass plastic, crystal-clear
- Accuracy class: Accuracy +/- 5%
- Serial number on dial: FORTLFD.-NR. *...*
- Protection class:IP 68
- Differential pressure: Mechanical differential pressure
- Measuring method A2G: Measuring method A2G
- Unit 2. Scale: None
- Mounting type/mounting: Attachment version
- Face design: Standard air2guide
- Certificates: Without
- Approvals: Without
- Product type
Differential pressure gauge
- Min. display range
0 Pa
- Display range (max.)
2500 Pa
- Manufacturer part #
45822661
- Material (details)
0 Pa...2500 Pa
- Connection
Hose connection diameter 4-6 mm
IP68
Documents & Downloads
Datasheet
Datasheet 3526113 WIKA A2G-MINI Differential pressure gauge
User & Safety Instructions
User & Safety Instructions 3526113 WIKA A2G-MINI Differential pressure gauge
Description
A2G-mini air2guide - mechanical differential pressure
Nominal size 063 mm
Accuracy class: Accuracy +/- 5%
Process connection: Hose connection diameter 4-6 mm
Case: CrNi steel
Viewing glass plastic, crystal-clear
Protection class:IP 68
Technical data according to data sheet PM 07.43
Differential pressure: Mechanical differential pressure
Measuring method A2G: Measuring method A2G
Unit: Pa
Display range: 0 Pa...2500 Pa
Unit 2. Scale: None
Process connection: Hose connection diameter 4-6 mm
Mounting type/mounting: Attachment version
Face design: Standard air2guide
Serial number on dial: FORTLFD.-NR. *...*
Certificates: Without
Approvals: Without
Additional order details: Without
