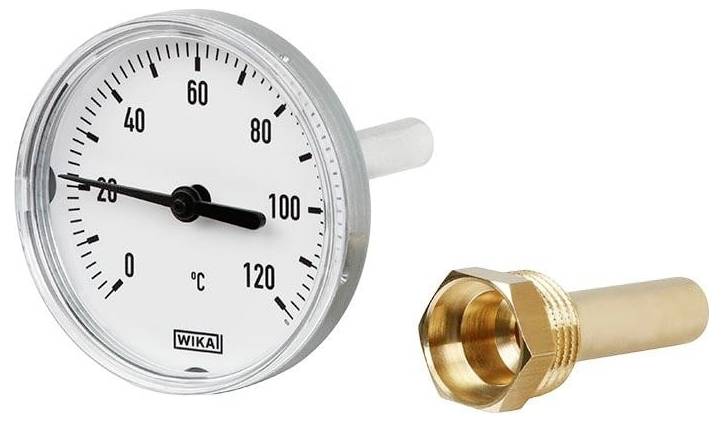

Buy WIKA A43 Bimetallic thermometer

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type A43
Unit: °C
Display range: 0 °C ... 120 °C
Submersible material: Aluminium
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Housing material: Steel sheet, galvanized
Standard type, with steel plate housing
Nominal size [nG, d1]: 80 mm
Protective tube: Removable, attached;
Protective tube material: Brass
Mounting length [L1]: 60 mm
Immersion shaft diameter [d5]: 9 mm
Process connection [E, d6]: G1/2B
Face imprint (number of colors): Dial print, 1-color
Pointer design: Plastic, black

Product type: Bimetallic thermometer

Min. display range: 0 °C

Display range (max.): 120 °C

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Manufacturer part #: 14138764

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3527102 WIKA A43 Bimetallic thermometer

User & Safety Instructions

User & Safety Instructions 3527102 WIKA A43 Bimetallic thermometer

Description

Bimetal thermometer, for heating technology A43
Type A43
Standard type, with steel plate housing
Nominal size [nG, d1]: 80 mm
Housing material: Steel sheet, galvanized
Unit: °C
Display range: 0 °C ... 120 °C
Mounting length [L1]: 60 mm
Immersion shaft diameter [d5]: 9 mm
Submersible material: Aluminium
Protective tube: Removable, attached;
Protective tube material: Brass
Process connection [E, d6]: G1/2B
Manufacturer logo: *WIKA*
Face imprint (number of colors): Dial print, 1-color
Pointer design: Plastic, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
