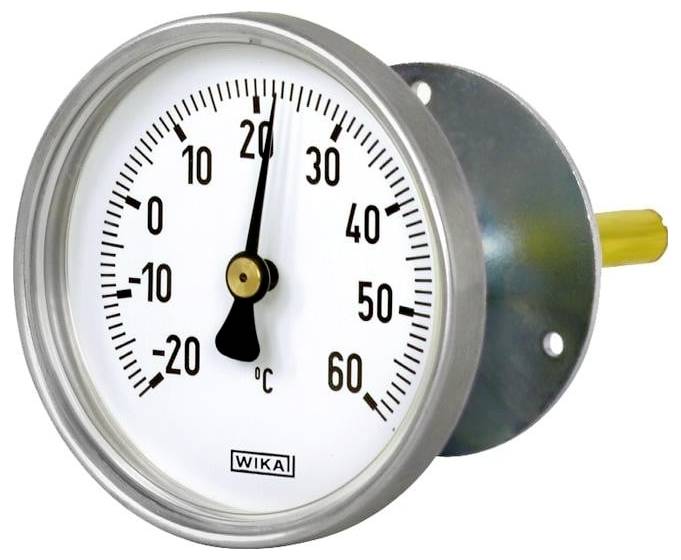

Buy WIKA A48 Bimetallic thermometer

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: A48 for air-conditioning and ventilation technology
Unit: °C
Display range: -20 °C ... +60 °C
Process connection: Flange St.VZN, movable,hole kr.51/D61
Mounting length L1: 200 mm
Dip-shank material: Cu alloy
Submersible shaft diameter 9 mm
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Pointer: Aluminium, black
Face background: White
Case material: Aluminium
Device type: Standard, with aluminum housing
Nominal size [nG, d1]: 100 mm
Data sheet: TM48.01

Product type: Bimetallic thermometer

Min. display range: -20 °C

Display range (max.): +60 °C

Type: Flange St. VZN, movable, punched hole kr.51/D61

Operating temperature: -20 °C (min)

Min. operating temperature: -20 °C

Manufacturer part #: 3989003

Dim: (Ø) 9 mm

(Ø): 9 mm

Pipe Ø: 9 mm

Documents & Downloads

Datasheet

Datasheet 3526273 WIKA A48 Bimetallic thermometer

User & Safety Instructions

User & Safety Instructions 3526273 WIKA A48 Bimetallic thermometer

Description

Bimetal thermometer TYP48-50
Type: A48 for air-conditioning and ventilation technology
Device type: Standard, with aluminum housing
Nominal size [nG, d1]: 100 mm
Case material: Aluminium
Unit: °C
Display range: -20 °C ... +60 °C
Mounting length L1: 200 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Process connection: Flange St.VZN, movable,hole kr.51/D61
Manufacturer logo: *WIKA*
Pointer: Aluminium, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM48.01

This text is machine translated.
