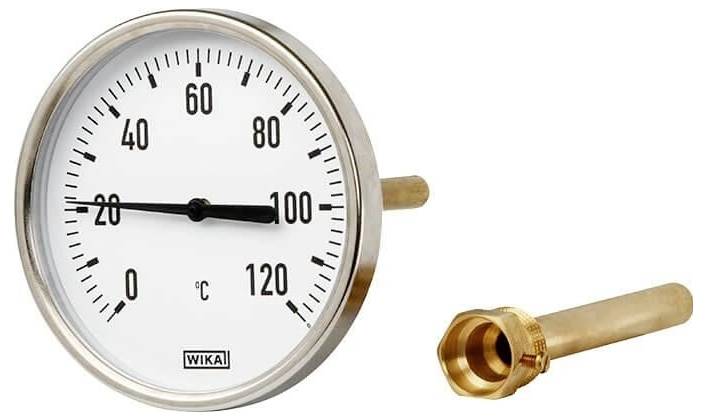

Buy WIKA A50 Bimetallic thermometer

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: A50 standard version
Unit: °C
Display range: -30 °C ... +50 °C
Process connection G 1/2 B
Mounting length L1: 100 mm
Dip-shank material: Cu alloy
Submersible shaft diameter 9 mm
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Pointer: Aluminium, black
Face background: White
Housing material: Steel sheet, galvanized
Standard type, with steel plate housing
Nominal size [nG, d1]: 100 mm
Protective tube: Removable, with locking screw;
Protective tube material: Copper alloy
Data sheet: TM50.03

Product type: Bimetallic thermometer

Min. display range: -30 °C

Display range (max.): +50 °C

Type: G 1/2 B

Operating temperature: -30 °C (min)

Min. operating temperature: -30 °C

Manufacturer part #: 13473582

Dim: (Ø) 9 mm

(Ø): 9 mm

Documents & Downloads

Datasheet

Datasheet 3526803 WIKA A50 Bimetallic thermometer

User & Safety Instructions

User & Safety Instructions 3526803 WIKA A50 Bimetallic thermometer

Description

Bimetal thermometer TYP48-50
Type: A50 standard version
Standard type, with steel plate housing
Nominal size [nG, d1]: 100 mm
Housing material: Steel sheet, galvanized
Unit: °C
Display range: -30 °C ... +50 °C
Mounting length L1: 100 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Protective tube: Removable, with locking screw;
Protective tube material: Copper alloy
Process connection G 1/2 B
Manufacturer logo: *WIKA*
Pointer: Aluminium, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM50.03

This text is machine translated.
