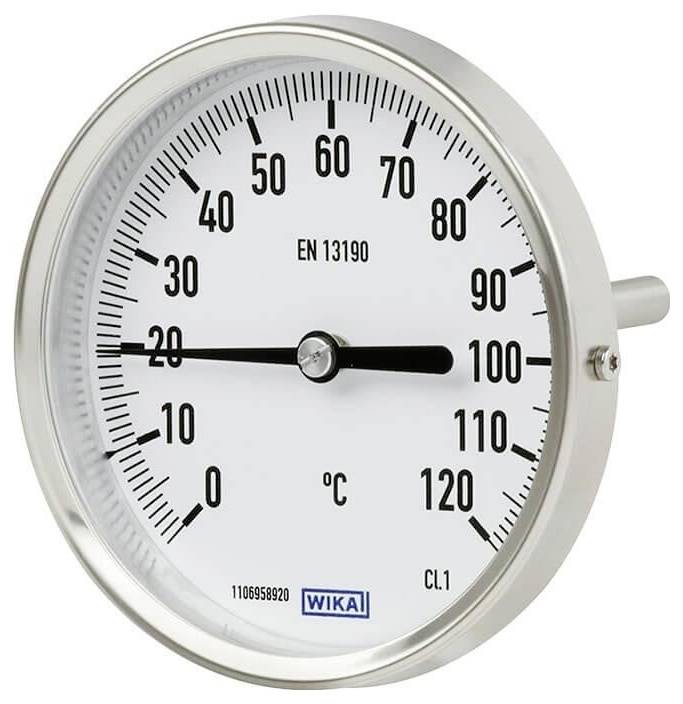

WIKA A52 Bimetallic thermometer Back side
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: A52.160, nominal size 160, rear connection position
- Case: CrNi steel
- Display range: -30 °C ... +50 °C
- Process connection: Smooth, with collar for protective tube (protective tube required for mounting)
- Mounting length L1: 200 mm
- Submersible material: CrNi steel
- 1 connection design, smooth connection
- Submersible shaft diameter 8 mm
- Viewing panel: Instrument flat glass
- Accuracy class Cl. 1 according to EN 13190
- Type of protection IP 43
- Product type
Bimetallic thermometer
- Min. display range
-30 °C
- Display range (max.)
+50 °C
- Type
Smooth, with collar for protective tube (protective tube required for mounting)
- Operating temperature
-30 °C (min)
- Min. operating temperature
-30 °C
- Manufacturer part #
3904318
- Material (details)
CrNi steel
- Dim
(Ø) 8 mm
- Connector
Back side
- (Ø)
8 mm
- Pipe Ø
8 mm
IP43
Documents & Downloads
Datasheet
Datasheet 3526169 WIKA A52 Bimetallic thermometer Back side
User & Safety Instructions
User & Safety Instructions 3526169 WIKA A52 Bimetallic thermometer Back side
Description
Bimetallic thermometer, For industrial applicationA52LTechnical data in accordance with data sheet: TM 52.01 Accuracy class: Cl. 1 according to EN 13190Housing: CrNi steel diving material: CrNi steel 1.4571Type: A52.160, nominal size 160, connection position at rear connection design: 1, connection at smooth Display range: -30 °C ... +50 °C Process connection: Smooth, with collar for protective tube (protective tube required for mounting)Immersion diameter: 8 mm Mounting length L1: 200 mm Viewing glass: Instrument flat glass Protection: IP 43Manufacturer logo: *WIKA*Dip-shaft material: CrNi steel 1.4571
