Buy WIKA Bimetallic thermo/manometer 14112457 THM10 Connector (pressure gauge): Bottom 1 pc(s)

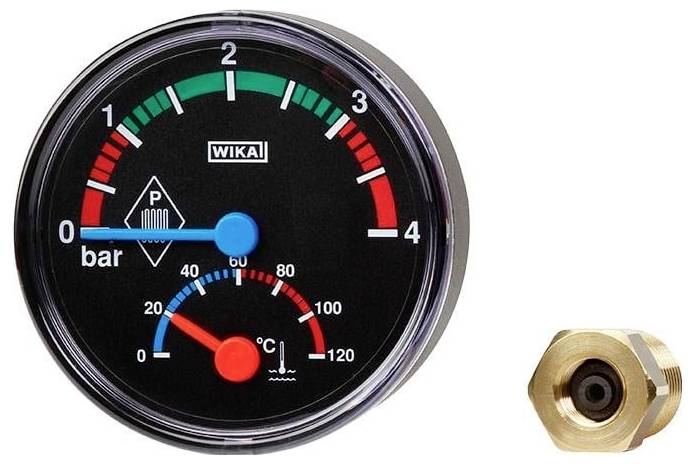

WIKA Bimetallic thermo/manometer 14112457 THM10 Connector (pressure gauge): Bottom 1 pc(s)-0

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type THM10
Housing: Black plastic
Display range: 0 °C ... 120 °C
Nominal size 063 mm
Measuring range: Pressure measuring range
Connection position: Below
Viewing glass: Plastic, snapped in
Unit Pressure: Bar
Temperature unit: °C
Shut-off valve: G1/4 x R1/2-ISO7 shut-off valve
Process connection according to factory standard: G1/4B
Arcs / Sectors: Arcs 0...1 bar and 3 bar...3 o'clock red / 1...3 bar green / 0...60°C blue / 60...120°C red

Product type: Bimetallic thermo/manometer

Min. display range: 0 °C

Display range (max.): 120 °C

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Manufacturer part #: 14112457

Material (details): Plastic black

Dim: (Ø) 063 mm

Connector: Bottom

(Ø): 063 mm

Documents & Downloads

Datasheet

Datasheet 3526835 WIKA Bimetallic thermo/manometer 14112457 THM10 Connector (pressure gauge): Bottom 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3526835 WIKA Bimetallic thermo/manometer 14112457 THM10 Connector (pressure gauge): Bottom 1 pc(s)

Description

Thermo-thermometer type THM10
Technical data according to data sheet PM 01.24
Type THM10
Nominal size 063 mm
Unit Pressure: Bar
Temperature unit: °C
Display range 0...4 bar
Measuring range: Pressure measuring range
Display range: 0 °C ... 120 °C
Shut-off valve: G1/4 x R1/2-ISO7 shut-off valve
Process connection according to factory standard: G1/4B
Connection position: Below
Housing: Black plastic
Viewing glass: Plastic, snapped in
Arcs / Sectors: Arcs 0...1 bar and 3 bar...3 o'clock red / 1...3 bar green / 0...60°C blue / 60...120°C red
Manufacturer logo: *WIKA*
