Name: WIKA Bourdon tube gauge 12292109 131.11 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)
Brand: WIKA
SKU: 3526133

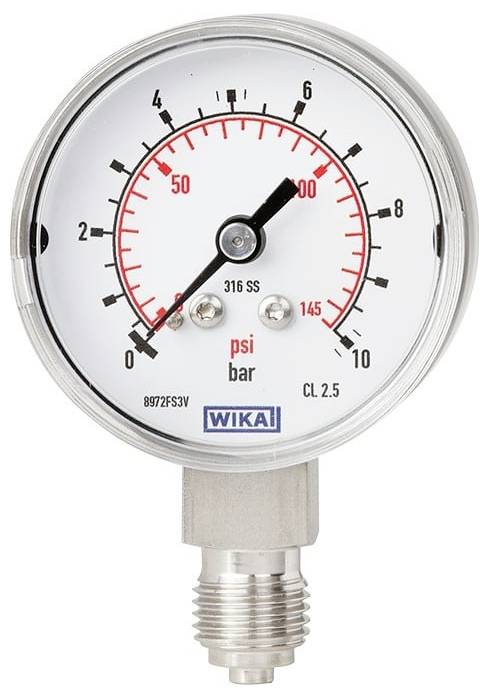

WIKA Bourdon tube gauge 12292109 131.11 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)-0

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type 131.11
Case: CrNi steel
Display range: -1...+15 bar
Process connection G 1/4 B
Needle mechanism: CrNi steel
Measurement system CrNi steel
Nominal size 040 mm
Measuring range: Vacuum and +/- measurement range
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Accuracy class: Class 2.5
Pressure gauge standard: International (Europe)
Serial number on dial: FORTLFD.-NR. *...*

Product type: Bourdon tube gauge

Min. display range: -1 bar

Max. operating pressure: 15 bar

Display range (max.): +15 bar

Manufacturer part #: 12292109

Material (details): CrNi steel

Dim: (Ø) 40 mm

Connection: G 1/ 4

Connector: Back side

Operating pressure (min.): -1 bar

Pressure range: -1 up to 15 bar

(Ø): 40 mm

Documents & Downloads

Datasheet

Datasheet 3526133 WIKA Bourdon tube gauge 12292109 131.11 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3526133 WIKA Bourdon tube gauge 12292109 131.11 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)

Description

Pressure gauge with pipe spring, CrNi steel design
Type 131.11
Technical data according to data sheet PM 01.05
Case: CrNi steel
Needle mechanism: CrNi steel
Measurement system CrNi steel
Nominal size 040 mm
Measuring range: Vacuum and +/- measurement range
Display range: -1...+15 bar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Accuracy class: Class 2.5
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
