WIKA Bourdon tube gauge 12798038 PGT23 Connector (pressure gauge): Bottom 0 up to 4 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Output signal: 4 ... 20 mA, 2-conductor
- Electrical connection: Angled plug connector DIN EN 175201-804 6-pin + PE side
- Housing: Solid front design EN837 "S3"
- Display range 0...4 bar
- Process connection G 1/2 B
- Nominal size: 100
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Serial number: With serial number
- Fluid damping (casing filling): Not filled
- Permissible temperature for the test object: -40...+100 °C.
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
4 bar
- Display range (max.)
4 bar
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Manufacturer part #
12798038
- Material (details)
Solid front design EN837 "S3"
- Connection
G 1/2
- Connector
Bottom
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 4 bar
Documents & Downloads
Datasheet
Datasheet 3525587 WIKA Bourdon tube gauge 12798038 PGT23 Connector (pressure gauge): Bottom 0 up to 4 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525587 WIKA Bourdon tube gauge 12798038 PGT23 Connector (pressure gauge): Bottom 0 up to 4 bar 1 pc(s)
Description

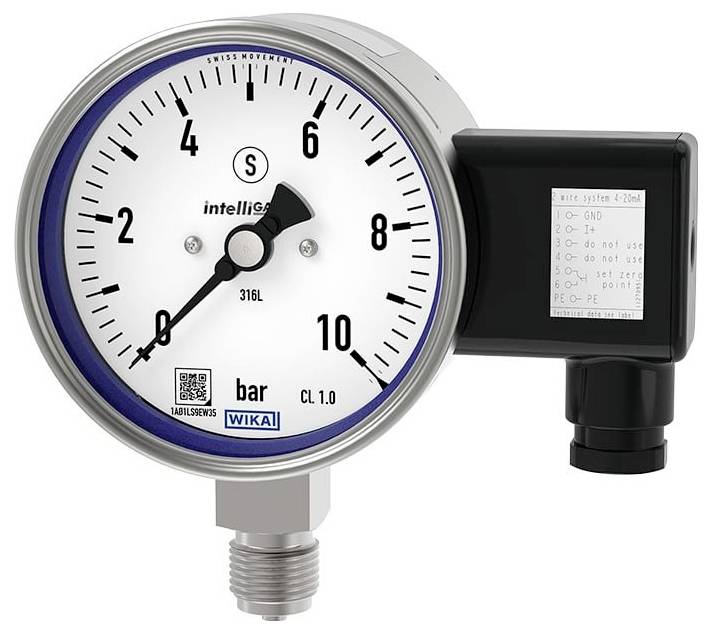

INTELLIGAUGE® PGT23.100/160
Pressure transducer with analog display,
Pipe spring measuring system, CrNi steel
Technical data according to data sheet: PV 12.04
Output signal: 4 ... 20 mA, 2-conductor
Nominal size: 100
Display range 0...4 bar
Process connection G 1/2 B
Connection position: Below
Fluid damping (casing filling): Not filled
Housing: Solid front design EN837 "S3"
Electrical connection: Angled plug connector DIN EN 175201-804 6-pin + PE side
Pressure gauge standard: International (Europe)
Accuracy class: Class 1.0
Viewing glass: Multi-layered safety glass
Permissible temperature for the measuring device: -40...+100 °C
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
