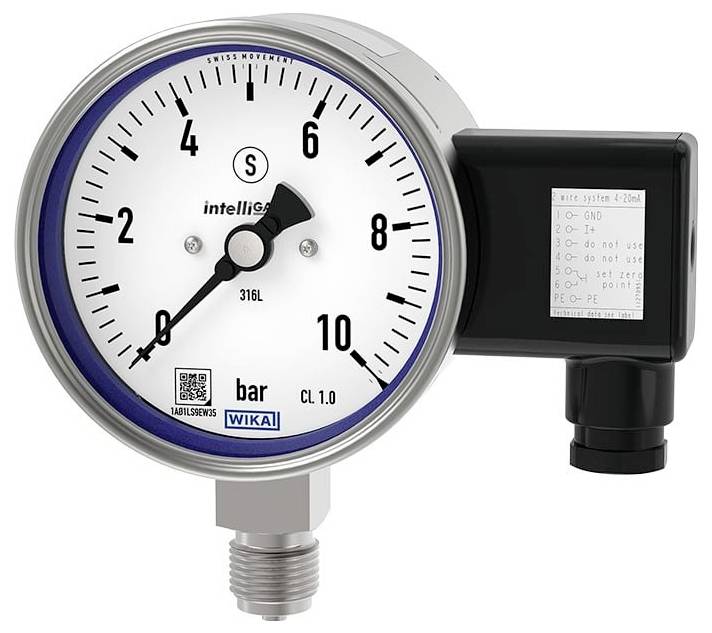

WIKA Bourdon tube gauge 12798089 PGT23 Connector (pressure gauge): Bottom 0 up to 25 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Output signal: 4 ... 20 mA, 2-conductor
- Electrical connection: Angled plug connector DIN EN 175201-804 6-pin + PE side
- Housing: Solid front design EN837 "S3"
- Display range 0...25 bar
- Process connection G 1/2 B
- Nominal size: 100
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Serial number: With serial number
- Fluid damping (casing filling): Not filled
- Permissible temperature for the test object: -40...+100 °C.
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
25 bar
- Display range (max.)
25 bar
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Manufacturer part #
12798089
- Material (details)
Solid front design EN837 "S3"
- Connection
G 1/2
- Connector
Bottom
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 25 bar
Documents & Downloads
Datasheet
Datasheet 3525808 WIKA Bourdon tube gauge 12798089 PGT23 Connector (pressure gauge): Bottom 0 up to 25 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525808 WIKA Bourdon tube gauge 12798089 PGT23 Connector (pressure gauge): Bottom 0 up to 25 bar 1 pc(s)
Description
INTELLIGAUGE® PGT23.100/160
Pressure transducer with analog display,
Pipe spring measuring system, CrNi steel
Technical data according to data sheet: PV 12.04
Output signal: 4 ... 20 mA, 2-conductor
Nominal size: 100
Display range 0...25 bar
Process connection G 1/2 B
Connection position: Below
Fluid damping (casing filling): Not filled
Housing: Solid front design EN837 "S3"
Electrical connection: Angled plug connector DIN EN 175201-804 6-pin + PE side
Pressure gauge standard: International (Europe)
Accuracy class: Class 1.0
Viewing glass: Multi-layered safety glass
Permissible temperature for the measuring device: -40...+100 °C
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
This text is machine translated.
Pressure transducer with analog display,
Pipe spring measuring system, CrNi steel
Technical data according to data sheet: PV 12.04
Output signal: 4 ... 20 mA, 2-conductor
Nominal size: 100
Display range 0...25 bar
Process connection G 1/2 B
Connection position: Below
Fluid damping (casing filling): Not filled
Housing: Solid front design EN837 "S3"
Electrical connection: Angled plug connector DIN EN 175201-804 6-pin + PE side
Pressure gauge standard: International (Europe)
Accuracy class: Class 1.0
Viewing glass: Multi-layered safety glass
Permissible temperature for the measuring device: -40...+100 °C
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
This text is machine translated.
