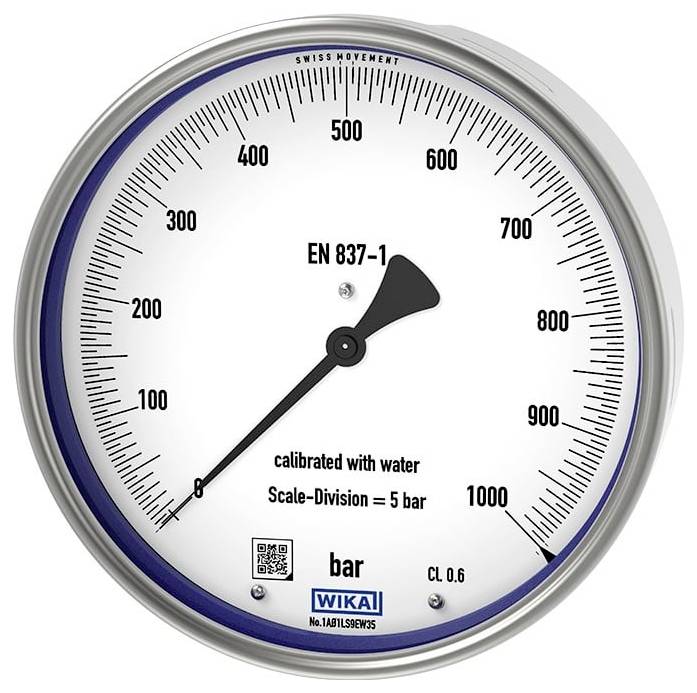

Image similar
WIKA Bourdon tube gauge 13468163 332.50 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 332.50
- Case: CrNi steel
- Display range 0...1 bar
- Process connection G 1/2 B
- Nominal size 160 mm
- Measuring range: Pressure measuring range
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 0.6
- Pressure gauge standard: International (Europe)
- Main scale unit: Bar
- Housing filling: Without
- Ring: Bayonet ring, CrNi steel
- Pointer: Cutting edge pointer
- Serial number: With serial number
- Material process connection: CrNi steel
- Material of measuring link: CrNi steel
- Overload protection 1.3-fold
- Permissible ambient temperature: -40 … +60 °C.
- Permissible temperature with a temperature of + 200 °C.
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Display range (max.)
1 bar
- Operating temperature
-40 up to 60 °C
- Min. operating temperature
-40 °C
- Max. operating temperature
60 °C
- Manufacturer part #
13468163
- Material (details)
CrNi steel
- Dim
(Ø) 160 mm
- Connection
G 1/2
- Connector
Bottom
- (Ø)
160 mm
Documents & Downloads
Datasheet
Datasheet 3525855 WIKA Bourdon tube gauge 13468163 332.50 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525855 WIKA Bourdon tube gauge 13468163 332.50 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with pipe spring, CrNi steel;
Fine measuring execution
Type 332.50
Technical data according to data sheet PM 03.06
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Housing filling: Without
Nominal size 160 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...1 bar
Process connection G 1/2 B
Material process connection: CrNi steel
Material of measuring link: CrNi steel
Connection position: Below
Viewing glass: Multi-layered safety glass
Pointer: Cutting edge pointer
Accuracy class: Class 0.6
Overload protection 1.3-fold
Permissible ambient temperature: -40 … +60 °C.
Permissible temperature of measuring substance: + 200 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
With threaded protective cap
This text is machine translated.
Fine measuring execution
Type 332.50
Technical data according to data sheet PM 03.06
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Housing filling: Without
Nominal size 160 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...1 bar
Process connection G 1/2 B
Material process connection: CrNi steel
Material of measuring link: CrNi steel
Connection position: Below
Viewing glass: Multi-layered safety glass
Pointer: Cutting edge pointer
Accuracy class: Class 0.6
Overload protection 1.3-fold
Permissible ambient temperature: -40 … +60 °C.
Permissible temperature of measuring substance: + 200 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
QR code with extended serial number on dial
With threaded protective cap
This text is machine translated.
