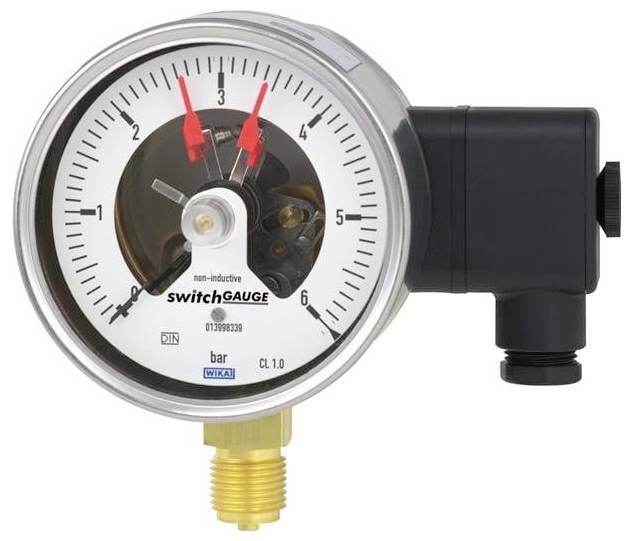

Image similar
WIKA Bourdon tube gauge 14028267 PGS21 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Technical specifications
- Electrical connection: Cable socket side
- Case: CrNi steel
- Display range 0...2.5 bar
- Process connection G 1/2 B
- Nominal size: 160
- Measuring range: Pressure measuring range
- Connection position: Below
- Viewing panel: Polycarbonat
- Pressure gauge standard: International (Europe)
- Serial number: With serial number
- Electrical limit signal sensor: Magnetic spring contact type 821
- First limit: NC (2)
- Second limit: Normally open (1)
- Measuring mechanism: Copper alloy
- Permissible ambience temperature: -20 to +60 °C
- Permissible temperature for measuring: -20...+80 °C.
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Display range (max.)
2.5 bar
- Operating temperature
-20 up to 60 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
60 °C
- Manufacturer part #
14028267
- Material (details)
CrNi steel
- Connection
G 1/2
- Connector
Bottom
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3525813 WIKA Bourdon tube gauge 14028267 PGS21 Connector (pressure gauge): Bottom 1 pc(s)
Description
Switch clamp PGS21.100/160
Pressure gauge with switch contacts,
Pipe spring measuring system made of brass
Technical data according to data sheet: PV 22.01 and AC 08.01
Electrical limit signal sensor: Magnetic spring contact type 821
First limit: NC (2)
Second limit: Normally open (1)
Electrical connection: Cable socket side
Nominal size: 160
Measuring range: Pressure measuring range
Display range 0...2.5 bar
Process connection G 1/2 B
Connection position: Below
Case: CrNi steel
Pressure gauge standard: International (Europe)
Viewing panel: Polycarbonat
Permissible temperature of measuring material: -20...+80 °C
Permissible ambient temperature: -20 … +60 °C.
Measuring mechanism: Copper alloy
Manufacturer logo: *WIKA*
Serial number: With serial number
This text is machine translated.
Pressure gauge with switch contacts,
Pipe spring measuring system made of brass
Technical data according to data sheet: PV 22.01 and AC 08.01
Electrical limit signal sensor: Magnetic spring contact type 821
First limit: NC (2)
Second limit: Normally open (1)
Electrical connection: Cable socket side
Nominal size: 160
Measuring range: Pressure measuring range
Display range 0...2.5 bar
Process connection G 1/2 B
Connection position: Below
Case: CrNi steel
Pressure gauge standard: International (Europe)
Viewing panel: Polycarbonat
Permissible temperature of measuring material: -20...+80 °C
Permissible ambient temperature: -20 … +60 °C.
Measuring mechanism: Copper alloy
Manufacturer logo: *WIKA*
Serial number: With serial number
This text is machine translated.
