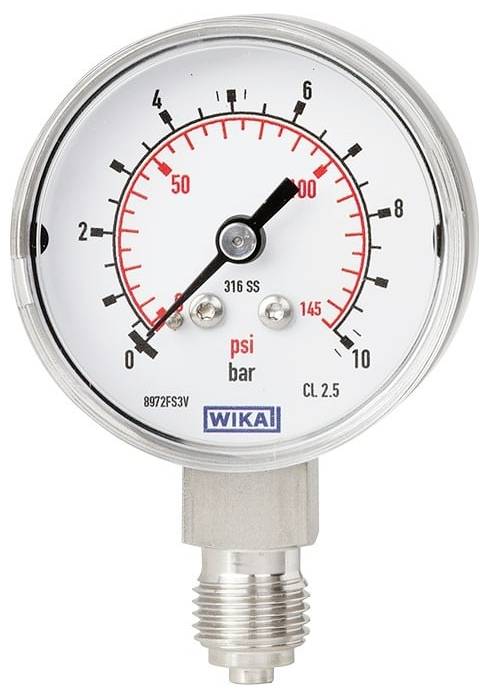

Image similar
WIKA Bourdon tube gauge 8794146 131.11 Connector (pressure gauge): Back side 0 up to 16 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 131.11
- Case: CrNi steel
- Display range 0...16 bar
- Process connection G 1/4 B
- Needle mechanism: CrNi steel
- Measurement system CrNi steel
- Nominal size 050 mm
- Measuring range: Pressure measuring range
- Connection position: Rear central (Axial)
- Viewing panel: Polycarbonat
- Accuracy class: Class 2.5
- Pressure gauge standard: International (Europe)
- Serial number on dial: FORTLFD.-NR. *...*
- Stop pin on dial: At the zero point
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
16 bar
- Display range (max.)
16 bar
- Manufacturer part #
8794146
- Material (details)
CrNi steel
- Dim
(Ø) 050 mm
- Connection
G 1/ 4
- Connector
Back side
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 16 bar
- (Ø)
050 mm
Documents & Downloads
Datasheet
Datasheet 3525322 WIKA Bourdon tube gauge 8794146 131.11 Connector (pressure gauge): Back side 0 up to 16 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525322 WIKA Bourdon tube gauge 8794146 131.11 Connector (pressure gauge): Back side 0 up to 16 bar 1 pc(s)
Description
Pressure gauge with pipe spring, CrNi steel design
Type 131.11
Technical data according to data sheet PM 01.05
Case: CrNi steel
Needle mechanism: CrNi steel
Measurement system CrNi steel
Nominal size 050 mm
Measuring range: Pressure measuring range
Display range 0...16 bar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Accuracy class: Class 2.5
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
Stop pin on dial: At the zero point
This text is machine translated.
Type 131.11
Technical data according to data sheet PM 01.05
Case: CrNi steel
Needle mechanism: CrNi steel
Measurement system CrNi steel
Nominal size 050 mm
Measuring range: Pressure measuring range
Display range 0...16 bar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Accuracy class: Class 2.5
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
Stop pin on dial: At the zero point
This text is machine translated.
