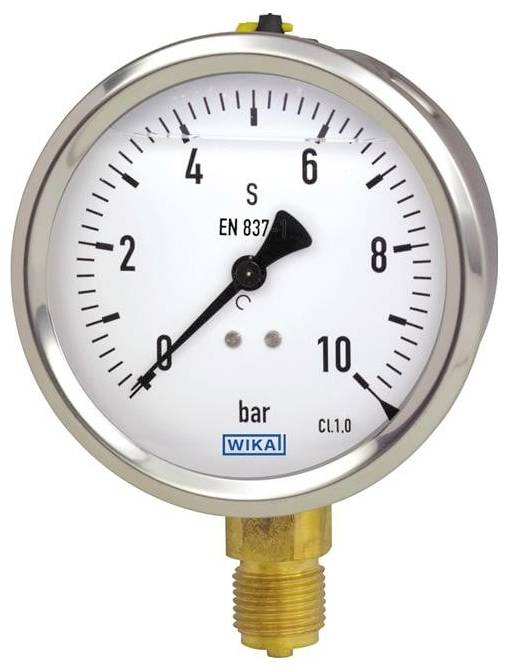

Image similar
WIKA Bourdon tube gauge 9022147 213.53 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 213.53
- Casing: CrNi steel, crimp type
- Display range: -1...+15 bar
- Process connection G 1/4 B
- Measuring system: Copper alloy
- Nominal size 063 mm
- Connection position: Rear
- Viewing glass plastic, crystal-clear
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Scale color for 1.Division (outside): Black
- Face background: White
- Storage medium housing: Glycerine
- Packaging: Standard packaging
- Standard label on dial: *EN 837-1*
- Safety label on dial: *S*
- Accuracy class dial: *Cl.1.6*
- Product type
Bourdon tube gauge
- Min. display range
-1 bar
- Max. operating pressure
15 bar
- Display range (max.)
+15 bar
- Manufacturer part #
9022147
- Material (details)
CrNi steel, crimp type
- Dim
(Ø) 063 mm
- Connection
G 1/ 4
- Connector
Back side
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 15 bar
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3526924 WIKA Bourdon tube gauge 9022147 213.53 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526924 WIKA Bourdon tube gauge 9022147 213.53 Connector (pressure gauge): Back side -1 up to 15 bar 1 pc(s)
Description
Pressure gauge with pipe spring, liquid filling,
CrNi steel casing, type 213,53.0XX
Type 213.53
Technical data according to data sheet PM 02.12
Measuring system: Copper alloy
Case:CrNi steel 1.4301
Casing: CrNi steel, crimp type
Nominal size 063 mm
Display range: -1...+15 bar
Process connection G 1/4 B
Connection position: Rear
Accuracy class: Class 1.6
Storage medium housing: Glycerine
Viewing glass plastic, crystal-clear
Packaging: Standard packaging
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
Standard label on dial: *EN 837-1*
Safety label on dial: *S*
Accuracy class dial: *Cl.1.6*
This text is machine translated.
