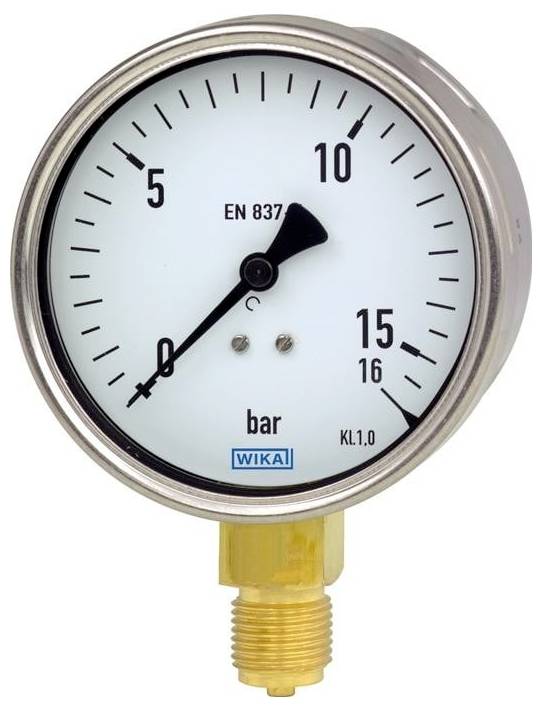

Image similar
WIKA Bourdon tube gauge 9042180 212.20 Connector (pressure gauge): Back side 0 up to 250 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 212.20
- Case: CrNi steel
- Display range 0...250 bar
- Process connection G 1/2 B
- Measuring system: Copper alloy
- Nominal size 100 mm
- Measuring range: Pressure measuring range
- Connection position: Eccentric at rear
- Viewing panel: Instrument flat glass
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Serial number on dial: FORTLFD.-NR. *...*
- Main scale unit: Bar
- Ring: Bayonet ring, CrNi steel
- Pointer: Standard pointer
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
250 bar
- Display range (max.)
250 bar
- Manufacturer part #
9042180
- Material (details)
CrNi steel
- Dim
(Ø) 100 mm
- Connection
G 1/2
- Connector
Back side
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 250 bar
- (Ø)
100 mm
Documents & Downloads
Datasheet
Datasheet 3526897 WIKA Bourdon tube gauge 9042180 212.20 Connector (pressure gauge): Back side 0 up to 250 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526897 WIKA Bourdon tube gauge 9042180 212.20 Connector (pressure gauge): Back side 0 up to 250 bar 1 pc(s)
Description
Pressure gauge with tubular spring, robust design
Type 212.20
Technical data according to data sheet PM 02.01
Measuring system: Copper alloy
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Measuring system: Copper alloy
Nominal size 100 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...250 bar
Process connection G 1/2 B
Connection position: Eccentric at rear
Viewing panel: Instrument flat glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
Type 212.20
Technical data according to data sheet PM 02.01
Measuring system: Copper alloy
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Measuring system: Copper alloy
Nominal size 100 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...250 bar
Process connection G 1/2 B
Connection position: Eccentric at rear
Viewing panel: Instrument flat glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
