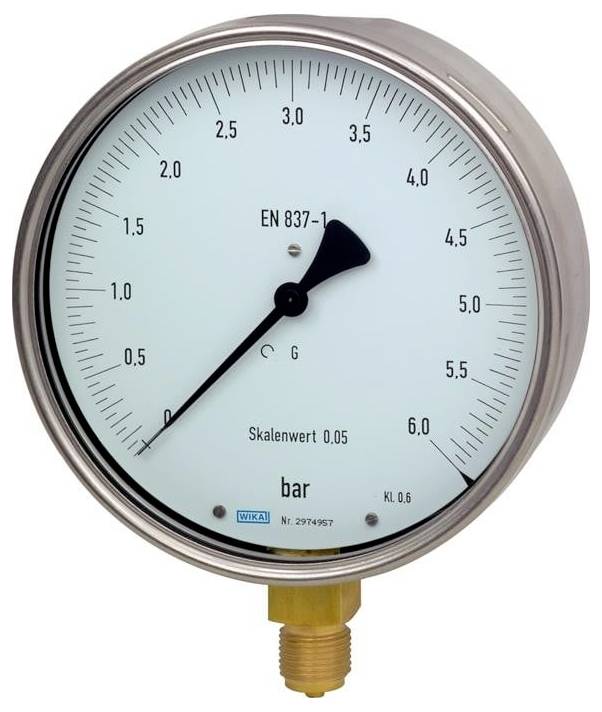

WIKA Bourdon tube gauge 9042369 312.20 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 312.20
- Case: CrNi steel
- Display range: -1200...0 mbar
- Process connection G 1/2 B
- Nominal size 160 mm
- Measuring range: Vacuum and +/- measurement range
- Connection position: Below
- Viewing panel: Instrument flat glass
- Accuracy class: Class 0.6
- Pressure gauge standard: International (Europe)
- Main scale unit: Mbar
- Ring: Bayonet ring, CrNi steel
- Pointer: Cutting edge pointer
- Serial number: With serial number
- Process connection material: Copper alloy
- Material of brass link: Copper alloy
- Permissible ambient temperature: -40 … +60 °C.
- Product type
Bourdon tube gauge
- Min. display range
-1.2 bar
- Display range (max.)
0 bar
- Operating temperature
-40 up to 60 °C
- Min. operating temperature
-40 °C
- Max. operating temperature
60 °C
- Manufacturer part #
9042369
- Material (details)
CrNi steel
- Dim
(Ø) 160 mm
- Connection
G 1/2
- Connector
Bottom
- (Ø)
160 mm
Documents & Downloads
Datasheet
Datasheet 3525999 WIKA Bourdon tube gauge 9042369 312.20 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525999 WIKA Bourdon tube gauge 9042369 312.20 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with pipe spring, fine measuring version
Type 312.20
Technical data according to data sheet PM 03.01
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Nominal size 160 mm
Main scale unit: Mbar
Measuring range: Vacuum and +/- measurement range
Display range: -1200...0 mbar
Process connection G 1/2 B
Process connection material: Copper alloy
Material of brass link: Copper alloy
Connection position: Below
Viewing panel: Instrument flat glass
Pointer: Cutting edge pointer
Accuracy class: Class 0.6
Permissible ambient temperature: -40 … +60 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number: With serial number
With threaded protective cap
This text is machine translated.
