Name: WIKA Bourdon tube gauge 9061762 212.20 Connector (pressure gauge): Bottom 1 pc(s)
Brand: WIKA
SKU: 3526871

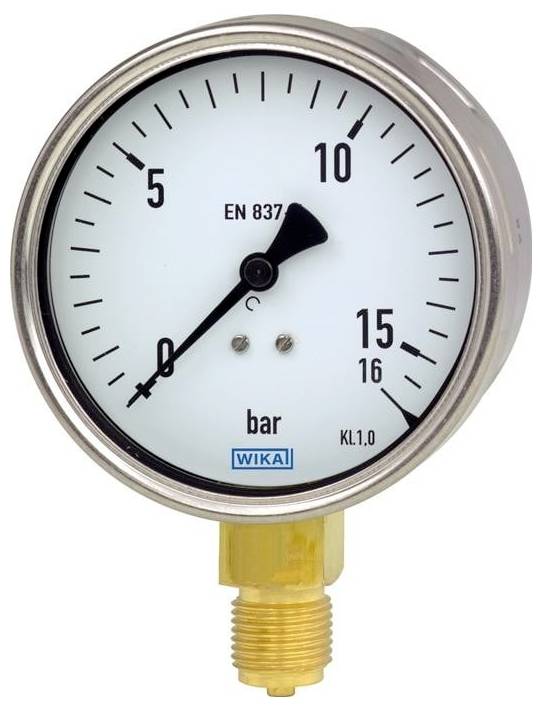

WIKA Bourdon tube gauge 9061762 212.20 Connector (pressure gauge): Bottom 1 pc(s)-0

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type 212.20
Case: CrNi steel
Display range: -1...+9 bar
Process connection G 1/2 B
Measuring system: Copper alloy
Nominal size 100 mm
Measuring range: Vacuum and +/- measurement range
Connection position: Below
Viewing panel: Instrument flat glass
Accuracy class: Class 1.0
Pressure gauge standard: International (Europe)
Serial number on dial: FORTLFD.-NR. *...*
Main scale unit: Bar
Ring: Bayonet ring, CrNi steel
Pointer: Standard pointer

Product type: Bourdon tube gauge

Min. display range: -1 bar

Display range (max.): +9 bar

Manufacturer part #: 9061762

Material (details): CrNi steel

Dim: (Ø) 100 mm

Connection: G 1/2

Connector: Bottom

(Ø): 100 mm

Documents & Downloads

Datasheet

Datasheet 3526871 WIKA Bourdon tube gauge 9061762 212.20 Connector (pressure gauge): Bottom 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3526871 WIKA Bourdon tube gauge 9061762 212.20 Connector (pressure gauge): Bottom 1 pc(s)

Description

Pressure gauge with tubular spring, robust design
Type 212.20
Technical data according to data sheet PM 02.01
Measuring system: Copper alloy
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Measuring system: Copper alloy
Nominal size 100 mm
Main scale unit: Bar
Measuring range: Vacuum and +/- measurement range
Display range: -1...+9 bar
Process connection G 1/2 B
Connection position: Below
Viewing panel: Instrument flat glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*

This text is machine translated.
