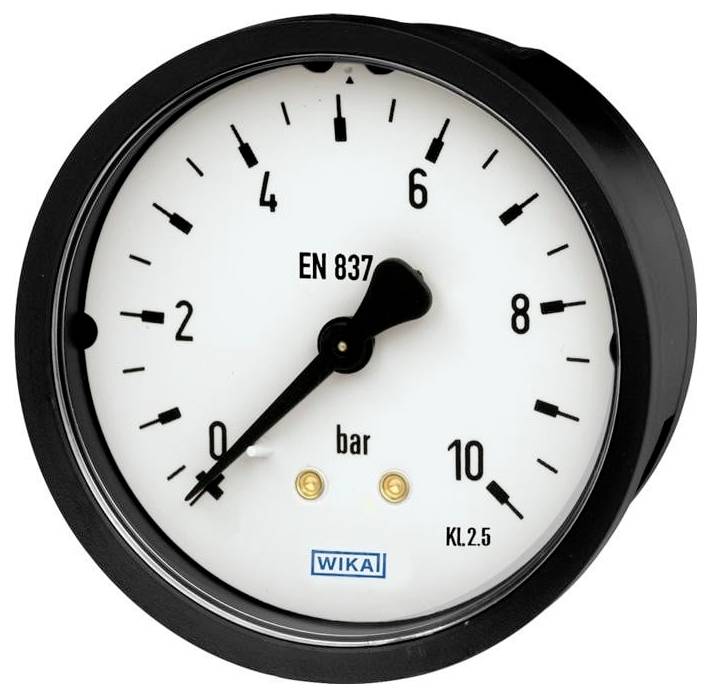

WIKA Bourdon tube gauge 9081283 111.16 Connector (pressure gauge): Back side 0 up to 40 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 111.16 panel fitting
- Housing: Plastic, black, with front flange
- Display range 0...40 bar
- Process connection G 1/4 B
- Nominal size 063 mm
- Measuring range: Pressure measuring range
- Connection position: Rear central (Axial)
- Viewing glass plastic, crystal-clear
- Accuracy class: Class 2.5
- Pressure gauge standard: International (Europe)
- Stop pin on dial: At the zero point
- Main scale unit: Bar
- Pointer: Plastic, black (double division)
- Scale color for 1.Division (outside): Black
- Face background: White
- Packaging: Standard packaging
- Standard label on dial: *EN 837-1*
- Accuracy class dial: *Cl.2.5*
- 2. Scale or special scale: 2
- Scale color for 2.Division (inside): Red RAL 3020
- Clock face: White plastic, with stop pin
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
40 bar
- Display range (max.)
40 bar
- Manufacturer part #
9081283
- Material (details)
Plastic, black, with front flange
- Dim
(Ø) 063 mm
- Connection
G 1/ 4
- Connector
Back side
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 40 bar
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3527277 WIKA Bourdon tube gauge 9081283 111.16 Connector (pressure gauge): Back side 0 up to 40 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527277 WIKA Bourdon tube gauge 9081283 111.16 Connector (pressure gauge): Back side 0 up to 40 bar 1 pc(s)
Description
Pressure gauge with pipe spring type 111
Type 111.16
Technical data according to data sheet: 111.10/111.12 = PM 01.01 / 111.11 = PM 01.03 / 111.16 = PM 01.10
Type 111.16 panel fitting
Nominal size 063 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...40 bar
2. Scale or special scale: 2
Process connection G 1/4 B
Connection position: Rear central (Axial)
Housing: Plastic, black, with front flange
Viewing glass plastic, crystal-clear
Accuracy class: Class 2.5
Pointer: Plastic, black (double division)
Packaging: Standard packaging
Clock face: White plastic, with stop pin
Technical data according to data sheet PM 01.10
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Scale color for 2.Division (inside): Red RAL 3020
Face background: White
Manufacturer logo: *WIKA*
Stop pin on dial: At the zero point
Standard label on dial: *EN 837-1*
Accuracy class dial: *Cl.2.5*
