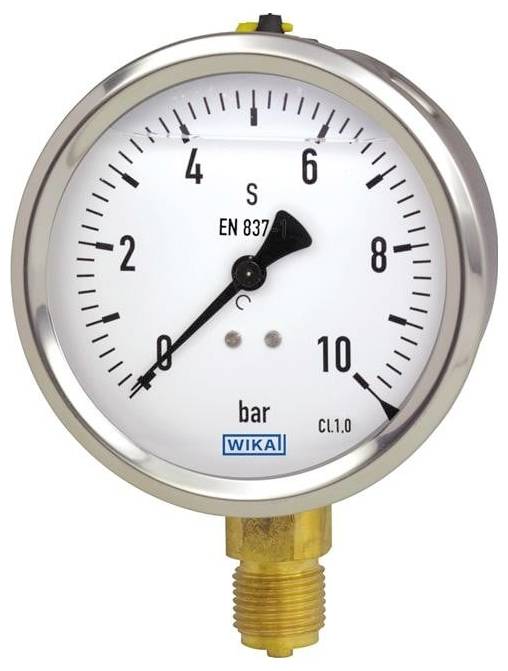

Image similar
WIKA Bourdon tube gauge 9367009 213.53 Connector (pressure gauge): Bottom 0 up to 600 bar 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 213.53
- Casing: CrNi steel, crimp type
- Display range 0...600 bar
- Process connection G 1/4 B
- Measuring system: Copper alloy
- Nominal size 063 mm
- Connection position: Below
- Viewing glass plastic, crystal-clear
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Stop pin on dial: At the zero point
- Scale color for 1.Division (outside): Black
- Face background: White
- Storage medium housing: Glycerine
- Packaging: Standard packaging
- Standard label on dial: *EN 837-1*
- Safety label on dial: *S*
- Accuracy class dial: *Cl.1.6*
- 2. Scale or special scale: 2
- Scale color for 2.Division (inside): Red RAL 3020
- TEXT BOX 1 (ET1): 600BAR/8700PSI
- Text Box 2 (ET2): 213.53.063
- CE Indicator on dial: *UKCA* *CE* Type * ... *
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Max. operating pressure
600 bar
- Display range (max.)
600 bar
- Manufacturer part #
9367009
- Material (details)
CrNi steel, crimp type
- Dim
(Ø) 063 mm
- Connection
G 1/ 4
- Connector
Bottom
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 600 bar
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3526888 WIKA Bourdon tube gauge 9367009 213.53 Connector (pressure gauge): Bottom 0 up to 600 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526888 WIKA Bourdon tube gauge 9367009 213.53 Connector (pressure gauge): Bottom 0 up to 600 bar 1 pc(s)
Description
Pressure gauge with pipe spring, liquid filling,
CrNi steel casing, type 213,53.0XX
Type 213.53
Technical data according to data sheet PM 02.12
Measuring system: Copper alloy
Case:CrNi steel 1.4301
Casing: CrNi steel, crimp type
Nominal size 063 mm
Display range 0...600 bar
2. Scale or special scale: 2
Process connection G 1/4 B
Connection position: Below
Accuracy class: Class 1.6
Storage medium housing: Glycerine
Viewing glass plastic, crystal-clear
Packaging: Standard packaging
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Scale color for 2.Division (inside): Red RAL 3020
Face background: White
Manufacturer logo: *WIKA*
Stop pin on dial: At the zero point
Standard label on dial: *EN 837-1*
Safety label on dial: *S*
Accuracy class dial: *Cl.1.6*
CE Indicator on dial: *UKCA* *CE* Type * ... *
TEXT BOX 1 (ET1): 600BAR/8700PSI
Text Box 2 (ET2): 213.53.063
This text is machine translated.
CrNi steel casing, type 213,53.0XX
Type 213.53
Technical data according to data sheet PM 02.12
Measuring system: Copper alloy
Case:CrNi steel 1.4301
Casing: CrNi steel, crimp type
Nominal size 063 mm
Display range 0...600 bar
2. Scale or special scale: 2
Process connection G 1/4 B
Connection position: Below
Accuracy class: Class 1.6
Storage medium housing: Glycerine
Viewing glass plastic, crystal-clear
Packaging: Standard packaging
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Scale color for 2.Division (inside): Red RAL 3020
Face background: White
Manufacturer logo: *WIKA*
Stop pin on dial: At the zero point
Standard label on dial: *EN 837-1*
Safety label on dial: *S*
Accuracy class dial: *Cl.1.6*
CE Indicator on dial: *UKCA* *CE* Type * ... *
TEXT BOX 1 (ET1): 600BAR/8700PSI
Text Box 2 (ET2): 213.53.063
This text is machine translated.
