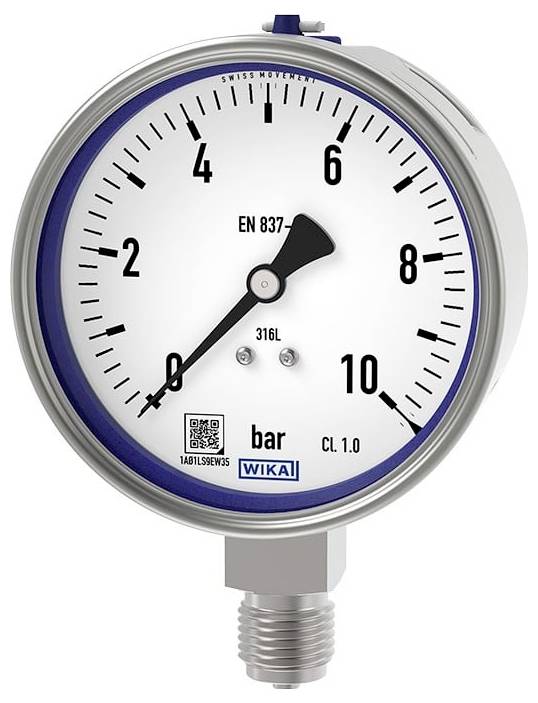

WIKA Bourdon tube gauge 9517316 233.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread G 1/4 1 pc(s
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 233.50
- Display range: -1...+5 bar
- Process connection G 1/4 B
- Measurement system CrNi steel
- Nominal size 063 mm
- Connection position: Rear central (Axial)
- Viewing panel: Polycarbonat
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Housing filling: With
- Pointer: Standard pointer
- Protection system: IP 65
- Material: Measuring system 316 SS
- Storage medium housing: Glycerine
- Permissible ambience temperature: -20 to +60 °C
- Permissible temperature with a temperature of + 100 °C.
- Product type
Bourdon tube gauge
- External thread
G 1/4
- Min. display range
-1 bar
- Max. operating pressure
5 bar
- Display range (max.)
+5 bar
- Operating temperature
-20 up to 60 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
60 °C
- Manufacturer part #
9517316
- Dim
(Ø) 063 mm
- Connection
G 1/ 4
- Connector
Back side
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 5 bar
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3526506 WIKA Bourdon tube gauge 9517316 233.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread G 1/4 1 pc(s
User & Safety Instructions
User & Safety Instructions 3526506 WIKA Bourdon tube gauge 9517316 233.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread G 1/4 1 pc(s
Description
Pressure gauge with pipe spring, CrNi steel design
Type 233.50
Technical data according to data sheet PM 02.02
Measurement system CrNi steel
Housing filling: With
Nominal size 063 mm
Display range: -1...+5 bar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Pointer: Standard pointer
Accuracy class: Class 1.6
Material: Measuring system 316 SS
Storage medium housing: Glycerine
Protection system: IP 65
Permissible temperature of measuring substance: + 100 °C.
Permissible ambient temperature: -20 … +60 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
With serial number
QR code with extended serial number on dial
This text is machine translated.
Type 233.50
Technical data according to data sheet PM 02.02
Measurement system CrNi steel
Housing filling: With
Nominal size 063 mm
Display range: -1...+5 bar
Process connection G 1/4 B
Connection position: Rear central (Axial)
Viewing panel: Polycarbonat
Pointer: Standard pointer
Accuracy class: Class 1.6
Material: Measuring system 316 SS
Storage medium housing: Glycerine
Protection system: IP 65
Permissible temperature of measuring substance: + 100 °C.
Permissible ambient temperature: -20 … +60 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
With serial number
QR code with extended serial number on dial
This text is machine translated.
