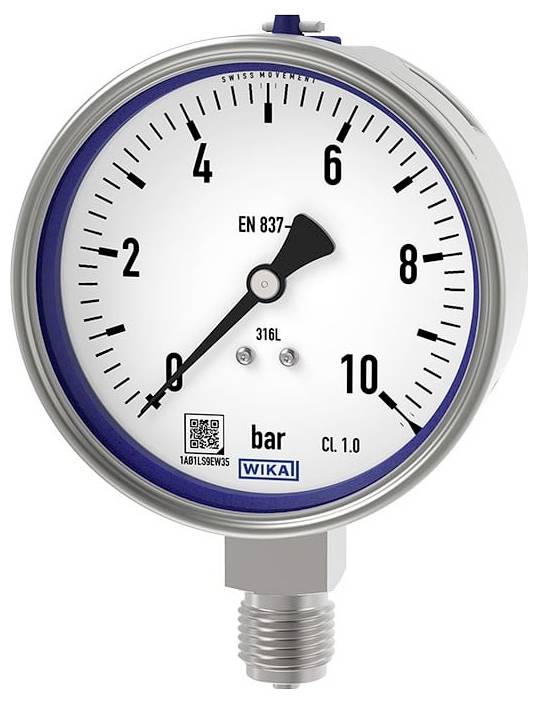

WIKA Bourdon tube gauge 9534296 232.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread 1/2" 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 232.50
- Display range: -1...+5 bar
- Process connection G 1/2 B
- Measurement system CrNi steel
- Nominal size 100 mm
- Connection position: Eccentric at rear
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Housing filling: Without
- Pointer: Standard pointer
- Protection system: IP 65
- Material: Measuring system 316L
- Permissible ambient temperature: -40 … +60 °C.
- Permissible temperature with a temperature of + 200 °C.
- Product type
Bourdon tube gauge
- External thread
1/2"
- Min. display range
-1 bar
- Max. operating pressure
5 bar
- Display range (max.)
+5 bar
- Operating temperature
-40 up to 60 °C
- Min. operating temperature
-40 °C
- Max. operating temperature
60 °C
- Manufacturer part #
9534296
- Dim
(Ø) 100 mm
- Connection
G 1/2
- Connector
Back side
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 5 bar
- (Ø)
100 mm
Documents & Downloads
Datasheet
Datasheet 3526659 WIKA Bourdon tube gauge 9534296 232.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread 1/2" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526659 WIKA Bourdon tube gauge 9534296 232.50 Connector (pressure gauge): Back side -1 up to 5 bar External thread 1/2" 1 pc(s)
Description
Pressure gauge with pipe spring, CrNi steel design
Type 232.50
Technical data according to data sheet PM 02.02
Measurement system CrNi steel
Housing filling: Without
Nominal size 100 mm
Display range: -1...+5 bar
Process connection G 1/2 B
Connection position: Eccentric at rear
Viewing glass: Multi-layered safety glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Material: Measuring system 316L
Protection system: IP 65
Permissible temperature of measuring substance: + 200 °C.
Permissible ambient temperature: -40 … +60 °C.
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
With serial number
QR code with extended serial number on dial
