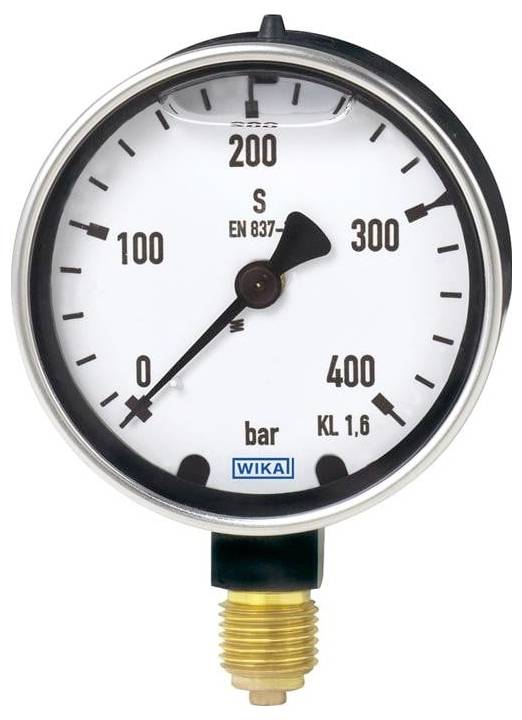

Image similar
WIKA Bourdon tube gauge 9921389 213.40 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Housing: Press brass, black, with pressure relief opening
- Display range: -1...0 bar
- Process connection G 1/2 B
- Pointer unit: Copper alloy
- Measuring system: Copper alloy
- Nominal size 100 mm
- Measuring range: Vacuum and +/- measurement range
- Connection position: Below
- Viewing glass: Acrylic glass (PMMA)
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Serial number on dial: FORTLFD.-NR. *...*
- Crimp brass housing, type 213.40.100:213.40-E
- Main scale unit: Bar
- Housing filling: Glycerol-water mixture
- Product type
Bourdon tube gauge
- Min. display range
-1 bar
- Display range (max.)
0 bar
- Manufacturer part #
9921389
- Material (details)
Press brass, black, with pressure relief opening
- Dim
(Ø) 100 mm
- Connection
G 1/2
- Connector
Bottom
- (Ø)
100 mm
Documents & Downloads
Datasheet
Datasheet 3525592 WIKA Bourdon tube gauge 9921389 213.40 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525592 WIKA Bourdon tube gauge 9921389 213.40 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with pipe spring, liquid filling
Type 213.40.100 crimp brass housing
Type 213.40-E
Technical data according to data sheet PM 02.06
Measuring system: Copper alloy
Pointer unit: Copper alloy
Nominal size 100 mm
Main scale unit: Bar
Measuring range: Vacuum and +/- measurement range
Display range: -1...0 bar
Process connection G 1/2 B
Connection position: Below
Housing: Press brass, black, with pressure relief opening
Viewing glass: Acrylic glass (PMMA)
Accuracy class: Class 1.0
Housing filling: Glycerol-water mixture
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
Type 213.40.100 crimp brass housing
Type 213.40-E
Technical data according to data sheet PM 02.06
Measuring system: Copper alloy
Pointer unit: Copper alloy
Nominal size 100 mm
Main scale unit: Bar
Measuring range: Vacuum and +/- measurement range
Display range: -1...0 bar
Process connection G 1/2 B
Connection position: Below
Housing: Press brass, black, with pressure relief opening
Viewing glass: Acrylic glass (PMMA)
Accuracy class: Class 1.0
Housing filling: Glycerol-water mixture
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
