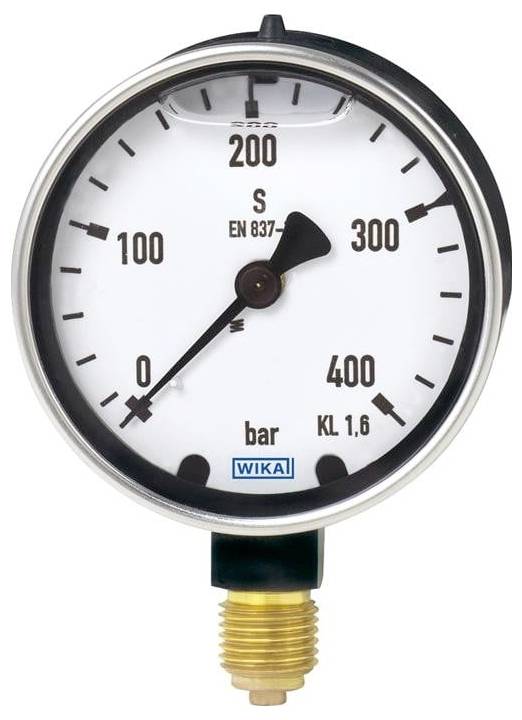

WIKA Bourdon tube gauge 9930973 213.40 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 213.40
- Housing: Press brass, black, with pressure relief opening
- Display range 0...400 bar
- Process connection G 1/4 B
- Pointer unit: Copper alloy
- Measuring system: Copper alloy
- Nominal size 063 mm
- Measuring range: Pressure measuring range
- Connection position: Below
- Viewing glass: Acrylic glass (PMMA)
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Stop pin on dial: At the zero point
- Main scale unit: Bar
- Casing filling: Glycerine
- Scale color for 1.Division (outside): Black
- Face background: White
- Packing: Bar
- Standard label on dial: *EN 837-1*
- Safety label on dial: *S*
- Accuracy class dial: *Cl.1.6*
- CE Indicator on dial: *UKCA* *CE* Type * ... *
- Product type
Bourdon tube gauge
- Min. display range
0 bar
- Display range (max.)
400 bar
- Manufacturer part #
9930973
- Material (details)
Press brass, black, with pressure relief opening
- Dim
(Ø) 063 mm
- Connection
G 1/ 4
- Connector
Bottom
- (Ø)
063 mm
Documents & Downloads
Datasheet
Datasheet 3526858 WIKA Bourdon tube gauge 9930973 213.40 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526858 WIKA Bourdon tube gauge 9930973 213.40 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with pipe spring, liquid filling
Crimp brass housing, type 23.40,0XX
Type 213.40
Technical data according to data sheet PM 02.06
Measuring system: Copper alloy
Pointer unit: Copper alloy
Nominal size 063 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...400 bar
Process connection G 1/4 B
Connection position: Below
Housing: Press brass, black, with pressure relief opening
Viewing glass: Acrylic glass (PMMA)
Accuracy class: Class 1.6
Casing filling: Glycerine
Packing: Bar
Type 213.40
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
Stop pin on dial: At the zero point
Standard label on dial: *EN 837-1*
Safety label on dial: *S*
Accuracy class dial: *Cl.1.6*
CE Indicator on dial: *UKCA* *CE* Type * ... *
This text is machine translated.
Crimp brass housing, type 23.40,0XX
Type 213.40
Technical data according to data sheet PM 02.06
Measuring system: Copper alloy
Pointer unit: Copper alloy
Nominal size 063 mm
Main scale unit: Bar
Measuring range: Pressure measuring range
Display range 0...400 bar
Process connection G 1/4 B
Connection position: Below
Housing: Press brass, black, with pressure relief opening
Viewing glass: Acrylic glass (PMMA)
Accuracy class: Class 1.6
Casing filling: Glycerine
Packing: Bar
Type 213.40
Dial Labels MA
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
Stop pin on dial: At the zero point
Standard label on dial: *EN 837-1*
Safety label on dial: *S*
Accuracy class dial: *Cl.1.6*
CE Indicator on dial: *UKCA* *CE* Type * ... *
This text is machine translated.
