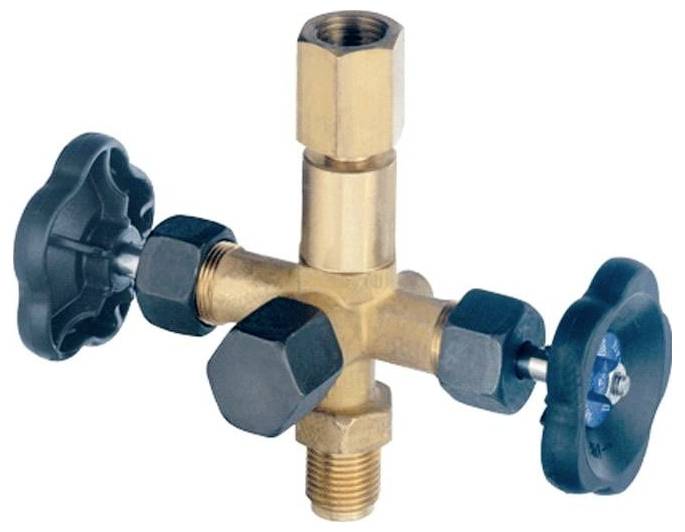

Image similar
Image similar
WIKA Check valve 2333835 910.11 400 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design A, with clamping sleeve
- Permissible nominal pressure: PN max. 400 bar
- Type of accessory 910.11-E
- Process/device connection: G1/2B tap + G1/2 clamping sleeve
- Design: Without test connection, according to DIN 16270 or similar (with bleed screw)
- Material packing PTFE
- Certificates Accessories: Acceptance test certificate 3.1 according to EN 10204, housing material
- Material body: Burnished steel
- Permissible temperature for the test substance: -10...+120°C.
- Product type
Check valve
- Type
Without test connection, according to DIN 16270 or similar (with bleed screw)
- Operating temperature
-10 up to 120 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
120 °C
- Manufacturer part #
2333835
- Material (details)
Gunmetal finish
- Connection
G1/2B adapter + G1/2 clamping sleeve
- Max. operating pressure
400 bar
- Pressure range
400 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524853 WIKA Check valve 2333835 910.11 400 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524853 WIKA Check valve 2333835 910.11 400 bar (max) 1 pc(s)
Description
DIN shut-off valve Technical data according to data sheet: AC 09.02 Design: Without test connection, according to DIN 16270 or similar (with bleed screw) Material body: Steel browned material Packing: PTFE permitted temperature of measuring material: -10...+120°C permissible nominal pressure: PN max. 400 bar Design: Form A, with clamping sleeve Process/device connection: G1/2B spigot + G1/2 clamping sleeve Certificates Accessories: Acceptance test certificate 3.1 according to EN 10204, housing material
