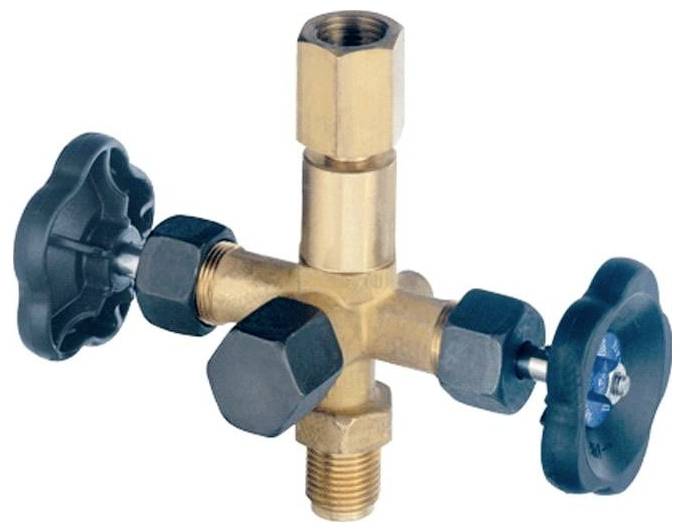

Image similar
Image similar
WIKA Check valve 9090169 910.11 250 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design A, with clamping sleeve
- Permissible nominal pressure: PN max. 250 bar
- Accessories type 910.11-I
- Process/device connection: G1/2B tap + G1/2 clamping sleeve
- Design: Without test connection, according to DIN 16270 or similar (with bleed screw)
- Material packing PTFE
- Material body: Copper alloy
- Permissible temperature for the test substance: -10...+120°C.
- Product type
Check valve
- Type
Without test connection, according to DIN 16270 or similar (with bleed screw)
- Operating temperature
-10 up to 120 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
120 °C
- Manufacturer part #
9090169
- Material (details)
Copper alloys
- Connection
G1/2B adapter + G1/2 clamping sleeve
- Max. operating pressure
250 bar
- Pressure range
250 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524932 WIKA Check valve 9090169 910.11 250 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524932 WIKA Check valve 9090169 910.11 250 bar (max) 1 pc(s)
Description
DIN shut-off valve Technical data according to data sheet: AC 09.02 Design: Without test connection, according to DIN 16270 or similar (with bleed screw) Material Body: Copper alloy Material Packing: PTFE permissible temperature of measuring material: -10...+120°C permissible nominal pressure: PN max. 250 bar Design: Form A, with clamping sleeve Process/device connection: G1/2B spigot + G1/2 clamping sleeve
