Buy WIKA Check valve 9095101 910.11 400 bar (max) 1 pc(s)

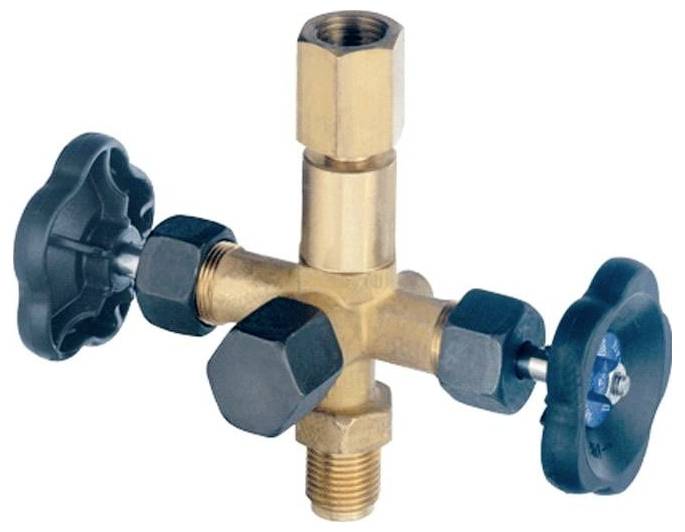

A brass three-way valve with two black handwheels for directional control of fluid flow, shown against a white background.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
Permissible nominal pressure: PN max. 400 bar
Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
Design: Without test connection, according to DIN 16270 or similar (with bleed screw)
Material packing PTFE
Material body: Burnished steel
Permissible temperature for the test substance: -10...+120°C.

Product type: Check valve

Type: Without test connection, according to DIN 16270 or similar (with bleed screw)

Operating temperature: -10 up to 120 °C

Min. operating temperature: -10 °C

Max. operating temperature: 120 °C

Manufacturer part #: 9095101

Material (details): Gunmetal finish

Connection: G1/2B tap + G1/2 with nipple and coupling nut

Max. operating pressure: 400 bar

Pressure range: 400 bar (max)

Documents & Downloads

Datasheet

Datasheet 3524733 WIKA Check valve 9095101 910.11 400 bar (max) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3524733 WIKA Check valve 9095101 910.11 400 bar (max) 1 pc(s)

Description

DIN-Shut valve
Technical data according to data sheet AC 09.02
Design: Without test connection, according to DIN 16270 or similar (with bleed screw)
Material body: Burnished steel
Material packing PTFE
Permissible temperature of the measuring substance: -10...+120°C
Permissible nominal pressure: PN max. 400 bar
Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut

This text is machine translated.
